AZG413

Suzuki KEI-SWIFT · 3,076 parts · 224 categories
AZG413 ×

← Back to categories

3,076 items

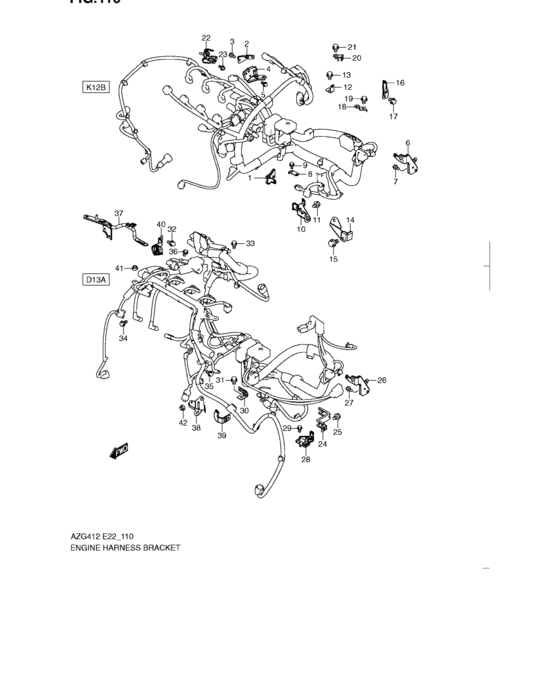

Engine harness bracket (ENGINE HARNESS BRACKET) 26
#OEMPart name
1 36653-68L00-000 BRACKET,ENG HARN THERMO
2 36653-68L10-000 Bracket,eng harn hook
2 36653-61P20-000 BRACKET,ENG HARN HOOK
3 01550-0612A-000 Bolt
4 36653-85L20-000 BRACKET,ENG HARN EGR
4 36653-85L30-000 BRACKET,ENG HARN EGR
6 36652-68L00-000 Bracket, engine harness body
7 02162-0612A-000 SCREW - Bolt, bracket
12 36651-68HE0-000 BRACKET,HARN
13 01550-0812A-000 Bolt
14 36651-79J50-000 BRACKET,ENG HARN
15 01550-1016A-000 Bolt - Plug, oil gallery
16 36652-68L70-000 BRACKET,ENG HARN T/M
18 36655-54G50-000 BRACKET,ENG HARN
20 36995-57B30-000 BRACKET,HARN
22 36653-68L20-000 BRACKET,ENG HARN AT BODY
24 36651-63J00-000 BRACKET,ENG HARN T/M
28 36652-68L20-000 Bracket, engine harness t/m
30 36656-86J00-000 Bracket, engine harness
32 13942-N86J0-000 Screw, ckp sensor
33 13943-N86J0-000 Bolt, eng harn brkt fr
37 36654-68L00-000 PIPE,ENG HARN BRKT INTK
38 36654-M68L1-000 Bracket, engine harness glow
39 36654-68L20-000 Bracket, engine harness glow
40 36654-M68L4-000 Bracket, engine harness front
41 09159-06076-000 NUT
