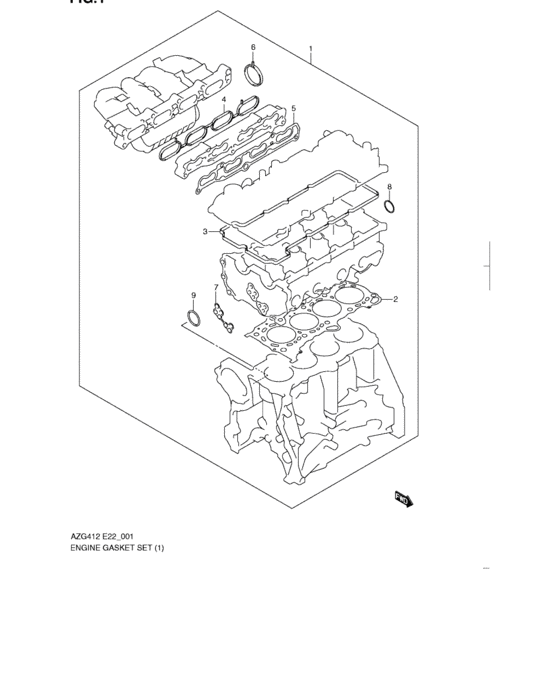

Engine gasket set (K12B)
10
| # | OEM | Part name |
|---|
| 1 |
11400-69890-000 |
Gasket set, engine |
| 1 |
11400-69891-000 |
GASKET SET,ENGINE |
| 2 |
11141-73K01-000 |
GASKET,CYL HEAD |
| 3 |
11189-69L00-000 |
GASKET,CYL HEAD COVER |
| 4 |
13118-73K00-000 |
GASKET,INTK MANF |
| 5 |
13119-73K00-000 |
GASKET,INTK MANF |
| 6 |
13421-73K00-000 |
GASKET,THROTTLE BODY |
| 7 |
16118-69LA0-000 |
O-RING,OIL CONTROL VALVE |
| 8 |
17675-73K00-000 |
GASKET,WATER THERMOSTAT |
| 9 |
09280-28008-000 |
O RING(D:3.5,ID:27.7) |
| OEM |
Part name |
Category |
| 09280-28008-000 |
O RING(D:3.5,ID:27.7) |
Engine gasket set (K12B) |
| 11141-73K01-000 |
GASKET,CYL HEAD |
Engine gasket set (K12B) |
| 11189-69L00-000 |
GASKET,CYL HEAD COVER |
Engine gasket set (K12B) |
| 11400-69890-000 |
Gasket set, engine |
Engine gasket set (K12B) |
| 11400-69891-000 |
GASKET SET,ENGINE |
Engine gasket set (K12B) |
| 13118-73K00-000 |
GASKET,INTK MANF |
Engine gasket set (K12B) |
| 13119-73K00-000 |
GASKET,INTK MANF |
Engine gasket set (K12B) |
| 13421-73K00-000 |
GASKET,THROTTLE BODY |
Engine gasket set (K12B) |
| 16118-69LA0-000 |
O-RING,OIL CONTROL VALVE |
Engine gasket set (K12B) |
| 17675-73K00-000 |
GASKET,WATER THERMOSTAT |
Engine gasket set (K12B) |
