Search › Model › AZG413
AZG413

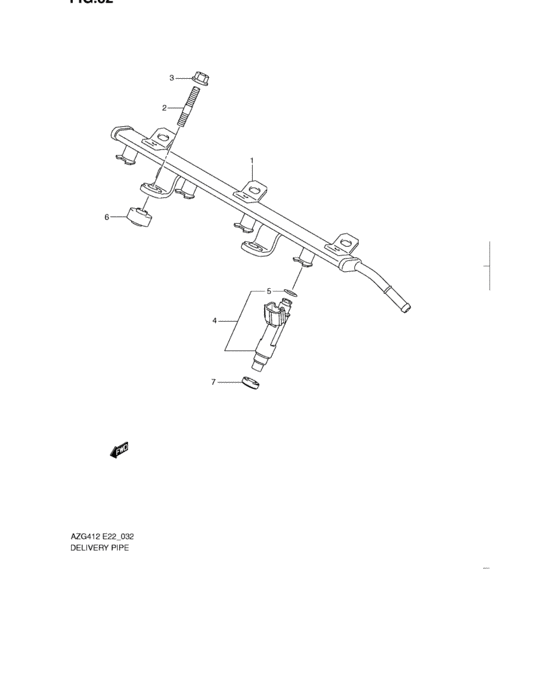

Delivery pipe (K12B) 7
| # | OEM | Part name |
|---|---|---|
| 1 | 15730-73K00-000 | PIPE,FUEL DELIVERY |
| 2 | 01421-0830A-000 | BOLT,STUD |
| 3 | 08316-1008A-000 | NUT - Nut, idle gear shaft |
| 4 | 15710-73KA0-000 | INJECTOR ASSY,FUEL |
| 5 | 15710-09300-000 | O-RING |
| 6 | 15735-86G00-000 | INSULATOR,DELIVERY PIPE |
| 7 | 09320-08062-000 | CUSHION |
| OEM | Part name | Category |
|---|---|---|
| 01421-0830A-000 | BOLT,STUD | Delivery pipe (K12B) |
| 08316-1008A-000 | NUT - Nut, idle gear shaft | Delivery pipe (K12B) |
| 09320-08062-000 | CUSHION | Delivery pipe (K12B) |
| 15710-09300-000 | O-RING | Delivery pipe (K12B) |
| 15710-73KA0-000 | INJECTOR ASSY,FUEL | Delivery pipe (K12B) |
| 15730-73K00-000 | PIPE,FUEL DELIVERY | Delivery pipe (K12B) |
| 15735-86G00-000 | INSULATOR,DELIVERY PIPE | Delivery pipe (K12B) |
