Search › Model › AZG413
AZG413

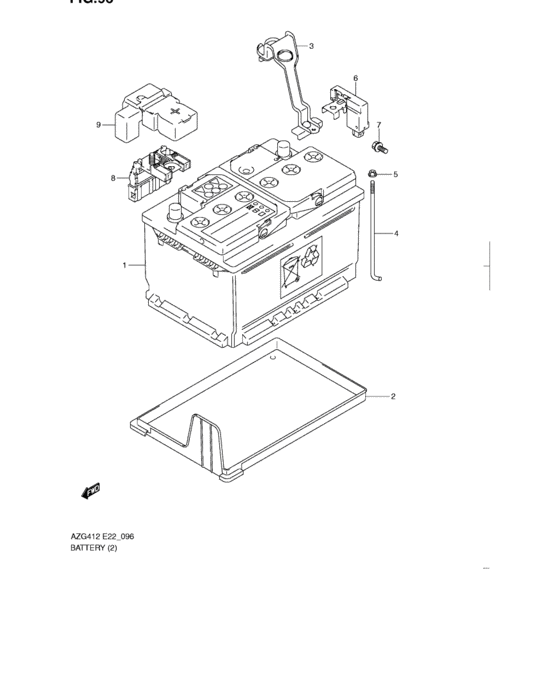

Battery (D13A) 10
| # | OEM | Part name |
|---|---|---|
| 1 | 33610-83E40-000 | Battery - Varta,12v,60ah/20hr |
| 2 | 33660-68L10-000 | Tray, battery |
| 3 | 72511-68L10-000 | Band, battery |
| 4 | 72729-68L10-000 | BOLT,BATTERY |
| 5 | 08316-1005A-000 | NUT |
| 6 | 32810-68L00-000 | Sensor assy,current |
| 6 | 32810-68L10-000 | SENSOR ASSY,CURRENT |
| 7 | 09115-06005-000 | BOLT(6X16) |
| 8 | 36739-68L00-000 | Fuse, battery |
| 9 | 36694-68L00-000 | Cover, battery terminal |
| OEM | Part name | Category |
|---|---|---|
| 08316-1005A-000 | NUT | Battery (D13A) |
| 09115-06005-000 | BOLT(6X16) | Battery (D13A) |
| 32810-68L00-000 | Sensor assy,current | Battery (D13A) |
| 32810-68L10-000 | SENSOR ASSY,CURRENT | Battery (D13A) |
| 33610-83E40-000 | Battery - Varta,12v,60ah/20hr | Battery (D13A) |
| 33660-68L10-000 | Tray, battery | Battery (D13A) |
| 36694-68L00-000 | Cover, battery terminal | Battery (D13A) |
| 36739-68L00-000 | Fuse, battery | Battery (D13A) |
| 72511-68L10-000 | Band, battery | Battery (D13A) |
| 72729-68L10-000 | BOLT,BATTERY | Battery (D13A) |
