AZE144

Toyota COROLLA-MATRIX · 2008 · 3,882 parts · 203 categories
AZE144 ×

← Back to categories

3,882 items

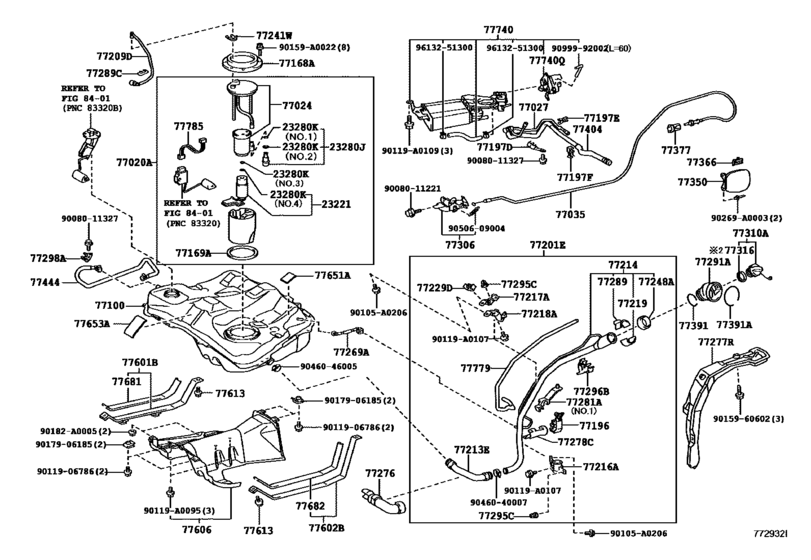

Fuel Tank & Tube ([01.2008 - 09.2011] FUEL TANK (0801-1109)AZE144) 90
#OEMPart name
23221 23220-0H140 Pump, Fuel
23221 23220-0H141 Pump, Fuel
23280 23280-21010 Regulator Assy, Fuel Pressure
23280 90301-04013 Ring, O(For Fuel Pump)
23280 90301-11025 Ring, O(For Fuel Pump)
23280 90301-15024 Ring, O(For Fuel Pump)
23280 90301-A0013 Ring, O(For Fuel Pressure Regulator)
77020 77020-02270 Tube Assy, Fuel Suction W/pump & Gage
77024 77024-02080 Tube Sub-Assy, Fuel Main & Return, Front
77027 77027-02050 Tube Sub-Assy, Fuel Evaporation, No.2
77035 77035-02210 Cable Sub-Assy, Fuel Lid Lock Control
77100 77001-02330 Tank Assy, Fuel
77168 77168-52020 Plate, Fuel Tank Vent Tube Set
77169 77169-52010 Gasket, Fuel Suction Tube Set
77196 77196-02070 Clamp, Evaporation Vent Tube, No.1
77197 77197-12050 Clamp, Evaporation Vent Tube, No.2
77197 77197-12060 Clamp, Evaporation Vent Tube, No.2
77197 77197-21010 Clamp, Evaporation Vent Tube, No.2
77201 77210-02260 Pipe Sub-Assy, Fuel Tank Filler
77201 77210-02261 Pipe Sub-Assy, Fuel Tank Filler
77201 77210-02262 Pipe Sub-Assy, Fuel Tank Filler
77209 77209-02120 Tube Sub-Assy, Fuel Tank Main
77213 77213-02060 Hose, Fuel, No.1(For Fuel Tank Inlet Pipe)
77214 77201-02230 Pipe, Fuel Tank Filler
77214 77201-02231 Pipe, Fuel Tank Filler
77216 77216-02080 Support, Fuel Tank Filler Pipe, No.1
77217 77217-02050 Support, Fuel Tank Filler Pipe, No.2
77218 77218-02030 Support, Fuel Tank Filler Pipe, No.3
77219 77219-06040 Cover, Fuel Tank Filler Pipe
77219 77219-0E010 Cover, Fuel Tank Filler Pipe
77229 77229-02020 Clamp, Breather Tube
77241 77241-06020 Clip, Tube Joint
77248 77248-06020 Holder, Fuel Tank Filler Pipe Cover
77269 77203-02060 Hose, Fuel Tank Breather
77276 77276-02020 Protector, Fuel Hose
77277 77277-02080 Protector, Fuel Tank Filler Pipe
77277 77277-02140 Protector, Fuel Tank Filler Pipe
77277 77277-12270 Protector, Fuel Tank Filler Pipe
77278 77278-02030 Protector, Fuel Tank Filler Pipe, No.2
77281 77281-02060 Clamp, Fuel Filler Pipe
77281 77281-12210 Clamp, Fuel Filler Pipe
77289 77289-06050 Cover, Fuel Tank Filler Pipe - FUEL TANK PIPE SETTING
77289 77289-52100 Clamp, Fuel Tube, No.3
77291 77291-02110 Shield, Fuel Tank Filler Pipe
77295 77295-12070 Grommet, Fuel Tube
77296 77296-02010 Support, Fuel Tube Protector, No.1
77298 77298-12110 Clamp, Fuel Tube, No.4
77306 77306-13030 Lever Sub-Assy, Fuel Lid Lock Open
77310 77300-06040 Cap Assy, Fuel Tank
77316 77316-06070 Gasket, Fuel Tank Cap
77350 77350-02060 Lid Assy, Fuel Filler Opening
77366 77360-02030 Spring, Fuel Filler Opening Lid Hinge
77377 77377-AA020 Retainer, Fuel Filler Opening Lid Lock
77391 77391-02041 Ring, Fuel Inlet Box
77391 77391-02080 Ring, Fuel Inlet Box
77404 77404-12010 Hose Sub-Assy, Fuel Tank Vent
77444 77404-02100 Hose, Fuel Tank Vent
77601 77601-12360 Band Sub-Assy, Fuel Tank, No.1 Rh
77602 77602-12270 Band Sub-Assy, Fuel Tank, No.1 Lh
77606 77606-02060 Protector Sub-Assy, Fuel Tank, No.1
77613 90080-11267 Bolt, Fuel Tank Band Set
77651 77651-20090 Cushion, Fuel Tank, No.1
77653 77653-60060 Cushion, Fuel Tank, No.3
77681 77681-21020 Seat, Fuel Tank Band, Rh
77682 77681-12070 Seat, Fuel Tank Band, Rh
77740 77740-02180 Canister Assy, Charcoal
77740 77740-02181 Canister Assy, Charcoal
77740 90910-AF002 Leak Detection Pump Sub-Assy, Charcoal Canister
77740 90910-AF005 Leak Detection Pump Sub-Assy, Charcoal Canister
77779 77779-02020 Tube, Charcoal Canister Outlet
77779 77779-02021 Tube, Charcoal Canister Outlet
77785 77785-02030 Harness, Fuel Pump
77785 77785-02031 Harness, Fuel Pump
90105 90105-A0206 Plug(For Fuel Sub-Tank)
90119 90119-A0095 New Genuine Part
90119 90119-A0107 New Genuine Part
90119 90119-A0109 New Genuine Part
90159 90159-A0022 SCREW WWASHER
90182 90182-A0005 Nut
90269 90269-A0003 RIVET
9008011221 90080-11221 New Genuine Part
9008011327 90080-11327 New Genuine Part
9011906786 90119-06786 BOLT WWASHER
9015960602 90159-60602 SCREW
9017906185 90179-06185 CLIP BUMPER
9046040007 90460-40007 Clamp (For Fuel Filler Pipe)
9046046005 90460-46005 Clamp (For Fuel Filler Pipe)
9050609004 90506-09004 Spring, Tension(For Luggage Door Lock Open Lever)
9099992002 90999-92002 Air Hose (300 mm)
9613251300 96132-51300 Clip(For Ventilation Hose No.2)
