Search › Model › AYH30

AYH30

Toyota ALPHARD-VELLFIRE · 2015 · 4,129 parts · 321 categories

4,129 items

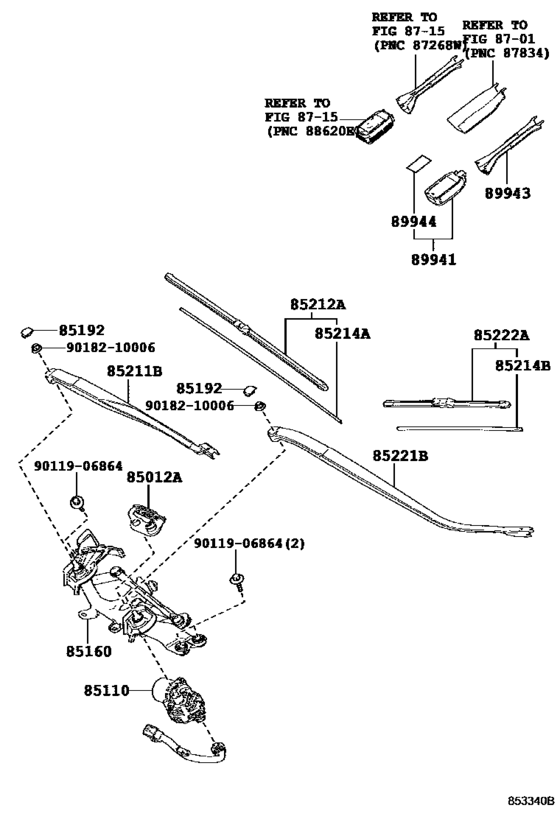

Windshield Wiper ([01.2015 - ] (1501- )RHD) 26

#	OEM	Part name
85012	85012-58050	Crank Sub-Assy, Front Wiper
85110	85110-58030	Motor Assy, Windshield Wiper
85160	85150-58030	Link Assy, Windshield Wiper
85192	85292-13010	Cover, Windshield Wiper Arm
85211	85211-58020	Arm, Front Wiper, Rh
85212	85212-58030	Blade, Fr Wiper, Rh
85212	85212-58032	Blade, Fr Wiper, Rh
85212	85212-58031	Blade, Fr Wiper, Rh
85212	85212-58033	Blade, Fr Wiper, Rh
85212	85212-58035	Blade, Fr Wiper, Rh
85212	85212-58034	Blade, Fr Wiper, Rh
85214	85214-58020	Rubber, Wiper, Rh
85214	85214-58060	Rubber, Wiper, Rh
85214	85214-58010	Rubber, Wiper, Lh
85214	85214-62020	Rubber, Wiper, Lh
85214	85214-58070	Rubber, Wiper, Lh
85221	85221-58060	Arm, Front Wiper, Lh
85222	85222-58030	Blade, Fr Wiper, Lh
85222	85222-58032	Blade, Fr Wiper, Lh
85222	85222-58031	Blade, Fr Wiper, Lh
85222	85222-58033	Blade, Fr Wiper, Lh
89941	89941-52010	Sensor, Rain
89943	89943-47010	Cover, Rain Sensor
89944	89944-42010	Tape, Rain Sensor
9011906864	90119-06864	BOLT W-WASHER
9018210006	90182-10006	Nut (For Front Wiper Arm Setting)

OEM	Part name	Category
85012-58050	Crank Sub-Assy, Front Wiper	Windshield Wiper ([01.2015 - ] (1501- )RHD)
85110-58030	Motor Assy, Windshield Wiper	Windshield Wiper ([01.2015 - ] (1501- )RHD)
85150-58030	Link Assy, Windshield Wiper	Windshield Wiper ([01.2015 - ] (1501- )RHD)
85211-58020	Arm, Front Wiper, Rh	Windshield Wiper ([01.2015 - ] (1501- )RHD)
85212-58030	Blade, Fr Wiper, Rh	Windshield Wiper ([01.2015 - ] (1501- )RHD)
85212-58031	Blade, Fr Wiper, Rh	Windshield Wiper ([01.2015 - ] (1501- )RHD)
85212-58032	Blade, Fr Wiper, Rh	Windshield Wiper ([01.2015 - ] (1501- )RHD)
85212-58033	Blade, Fr Wiper, Rh	Windshield Wiper ([01.2015 - ] (1501- )RHD)
85212-58034	Blade, Fr Wiper, Rh	Windshield Wiper ([01.2015 - ] (1501- )RHD)
85212-58035	Blade, Fr Wiper, Rh	Windshield Wiper ([01.2015 - ] (1501- )RHD)
85214-58010	Rubber, Wiper, Lh	Windshield Wiper ([01.2015 - ] (1501- )RHD)
85214-58020	Rubber, Wiper, Rh	Windshield Wiper ([01.2015 - ] (1501- )RHD)
85214-58060	Rubber, Wiper, Rh	Windshield Wiper ([01.2015 - ] (1501- )RHD)
85214-58070	Rubber, Wiper, Lh	Windshield Wiper ([01.2015 - ] (1501- )RHD)
85214-62020	Rubber, Wiper, Lh	Windshield Wiper ([01.2015 - ] (1501- )RHD)
85221-58060	Arm, Front Wiper, Lh	Windshield Wiper ([01.2015 - ] (1501- )RHD)
85222-58030	Blade, Fr Wiper, Lh	Windshield Wiper ([01.2015 - ] (1501- )RHD)
85222-58031	Blade, Fr Wiper, Lh	Windshield Wiper ([01.2015 - ] (1501- )RHD)
85222-58032	Blade, Fr Wiper, Lh	Windshield Wiper ([01.2015 - ] (1501- )RHD)
85222-58033	Blade, Fr Wiper, Lh	Windshield Wiper ([01.2015 - ] (1501- )RHD)
85292-13010	Cover, Windshield Wiper Arm	Windshield Wiper ([01.2015 - ] (1501- )RHD)
89941-52010	Sensor, Rain	Windshield Wiper ([01.2015 - ] (1501- )RHD)
89943-47010	Cover, Rain Sensor	Windshield Wiper ([01.2015 - ] (1501- )RHD)
89944-42010	Tape, Rain Sensor	Windshield Wiper ([01.2015 - ] (1501- )RHD)
90119-06864	BOLT W-WASHER	Windshield Wiper ([01.2015 - ] (1501- )RHD)
90182-10006	Nut (For Front Wiper Arm Setting)	Windshield Wiper ([01.2015 - ] (1501- )RHD)
