Search › Model › AYH30
AYH30

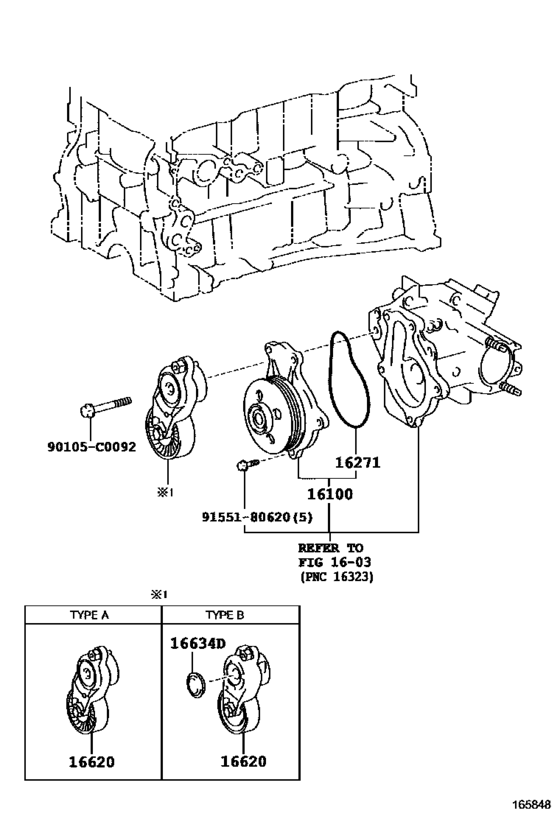

Water Pump ([01.2015 - ] (1501- )2ARFXE) 8
| # | OEM | Part name |
|---|---|---|
| 16100 | 16100-39575 | Pump Assy, Engine Water |
| 16271 | 16271-36030 | Gasket, Water Pump |
| 16620 | 16620-0V042 | Tensioner Assy, V-Ribbed Belt |
| 16620 | 16620-0V050 | Tensioner Assy, V-Ribbed Belt |
| 16620 | 16620-0V051 | Tensioner Assy, V-Ribbed Belt |
| 16634 | 16628-0V010 | Cover, Dust |
| 90105 | 90105-C0092 | New Genuine Part |
| 9155180620 | 91551-80620 | Bolt |
| OEM | Part name | Category |
|---|---|---|
| 16100-39575 | Pump Assy, Engine Water | Water Pump ([01.2015 - ] (1501- )2ARFXE) |
| 16271-36030 | Gasket, Water Pump | Water Pump ([01.2015 - ] (1501- )2ARFXE) |
| 16620-0V042 | Tensioner Assy, V-Ribbed Belt | Water Pump ([01.2015 - ] (1501- )2ARFXE) |
| 16620-0V050 | Tensioner Assy, V-Ribbed Belt | Water Pump ([01.2015 - ] (1501- )2ARFXE) |
| 16620-0V051 | Tensioner Assy, V-Ribbed Belt | Water Pump ([01.2015 - ] (1501- )2ARFXE) |
| 16628-0V010 | Cover, Dust | Water Pump ([01.2015 - ] (1501- )2ARFXE) |
| 90105-C0092 | New Genuine Part | Water Pump ([01.2015 - ] (1501- )2ARFXE) |
| 91551-80620 | Bolt | Water Pump ([01.2015 - ] (1501- )2ARFXE) |
