Search › Model › AYH30
AYH30

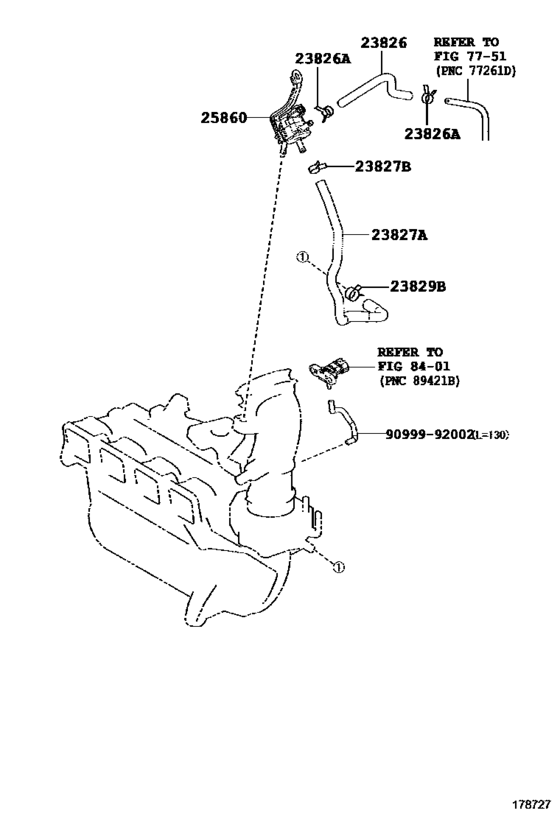

Vacuum Piping ([01.2015 - ] (1501- )2ARFXE) 7
| # | OEM | Part name |
|---|---|---|
| 23826 | 23826-36190 | Hose, Fuel Vapor Feed, No.1 |
| 23826 | 96132-51100 | Clip (For Hose) |
| 23827 | 23827-36170 | Hose, Fuel Vapor Feed, No.2 |
| 23827 | 90466-13004 | Clip(For Fuel Vapor Feed Hose, No.1) |
| 23829 | 90466-16004 | Clip(For Ventilation Hose No.2) |
| 25860 | 25860-36130 | Valve Assy, Vacuum Switching, No.1 |
| 9099992002 | 90999-92002 | Air Hose (300 mm) |
| OEM | Part name | Category |
|---|---|---|
| 23826-36190 | Hose, Fuel Vapor Feed, No.1 | Vacuum Piping ([01.2015 - ] (1501- )2ARFXE) |
| 23827-36170 | Hose, Fuel Vapor Feed, No.2 | Vacuum Piping ([01.2015 - ] (1501- )2ARFXE) |
| 25860-36130 | Valve Assy, Vacuum Switching, No.1 | Vacuum Piping ([01.2015 - ] (1501- )2ARFXE) |
| 90466-13004 | Clip(For Fuel Vapor Feed Hose, No.1) | Vacuum Piping ([01.2015 - ] (1501- )2ARFXE) |
| 90466-16004 | Clip(For Ventilation Hose No.2) | Vacuum Piping ([01.2015 - ] (1501- )2ARFXE) |
| 90999-92002 | Air Hose (300 mm) | Vacuum Piping ([01.2015 - ] (1501- )2ARFXE) |
| 96132-51100 | Clip (For Hose) | Vacuum Piping ([01.2015 - ] (1501- )2ARFXE) |
