Search › Model › AYH30

AYH30

Toyota ALPHARD-VELLFIRE · 2015 · 4,129 parts · 321 categories

4,129 items

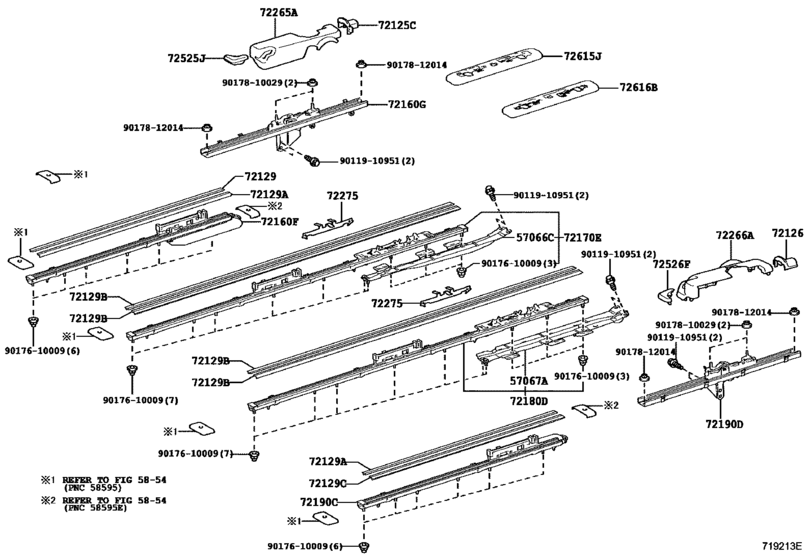

Seat & Seat Track ([01.2015 - ] REAR SEAT TRACK RAIL (1501- )GGH30..ALPHD ; (1501- )AGH30,AYH30 ..L,Q) 33

#	OEM	Part name
57066	57066-58010	Member Sub-Assy, Rear Floor Cross, No.1
57067	57067-58010	Member Sub-Assy, Rear Floor Cross, No.2
72125	72125-58030-A1	Cover, Seat Track Lock Plate, No.1
72126	72126-58010-A1	Cover, Seat Track Lock Plate, No.2
72129	72129-58300-C0	Protector, Seat Track Lower Rail, No.1
72129	72129-58310-C0	Protector, Seat Track Lower Rail, No.2
72129	72129-58240-C0	Protector, Seat Track Lower Rail
72160	72160-58280	Track Assy, Rear Rh Seat, Outer No.1
72160	72160-V2010	Track Assy, Rear Rh Seat, Outer No.1Track Assy, Rear Rh Seat, Outer No.1
72160	72160-58520	Track Assy, Rear Rh Seat, Outer No.1
72160	72180-58040	Track Assy, Rear Rh Seat, Outer No.2
72170	72160-58310	Track Assy, Rear Rh Seat, Inner No.1
72170	72160-58310-C0	Track Assy, Rear Rh Seat, Inner No.1
72180	72160-58300	Track Assy, Rear Lh Seat, Inner No.1
72180	72160-58300-C0	Track Assy, Rear Lh Seat, Inner No.1
72190	72160-58330	Track Assy, Rear Lh Seat, Outer No.1
72190	72160-58530	Track Assy, Rear Lh Seat, Outer No.1
72190	72190-58050	Track Assy, Rear Lh Seat, Outer No.2
72265	72265-58030-A0	Cover, Seat Track Upper Rail, Rh
72265	72265-58040-A0	Cover, Seat Track Upper Rail, Rh
72266	72266-58030-A0	Cover, Seat Track Upper Rail, Lh
72266	72266-58040-A0	Cover, Seat Track Upper Rail, Lh
72275	72275-58020	Stopper, Rear Seat Track Slide
72525	72525-58050-A1	Handle, Reclining Adjuster Release, Rh
72526	72526-58050-A1	Handle, Reclining Adjuster Release, No.4 Lh
72615	72615-58070-C0	Cover, Rear Seat Lock Striker, Rh
72615	72615-58090-C0	Cover, Rear Seat Lock Striker, Rh
72616	72615-58060-C0	Cover, Rear Seat Lock Striker
72616	72615-58080-C0	Cover, Rear Seat Lock Striker
9011910951	90119-10951	BOLT WWASHER
9017610009	90176-10009	New Genuine Part
9017810029	90178-10029	Nut(For Front Suspension Support)
9017812014	90178-12014	NUT FLANGE

OEM	Part name	Category
57066-58010	Member Sub-Assy, Rear Floor Cross, No.1	Seat & Seat Track ([01.2015 - ] REAR SEAT TRACK RAIL (1501- )GGH30..ALPHD ; (1501- )AGH30,AYH30 ..L,Q)
57067-58010	Member Sub-Assy, Rear Floor Cross, No.2	Seat & Seat Track ([01.2015 - ] REAR SEAT TRACK RAIL (1501- )GGH30..ALPHD ; (1501- )AGH30,AYH30 ..L,Q)
72125-58030-A1	Cover, Seat Track Lock Plate, No.1	Seat & Seat Track ([01.2015 - ] REAR SEAT TRACK RAIL (1501- )GGH30..ALPHD ; (1501- )AGH30,AYH30 ..L,Q)
72126-58010-A1	Cover, Seat Track Lock Plate, No.2	Seat & Seat Track ([01.2015 - ] REAR SEAT TRACK RAIL (1501- )GGH30..ALPHD ; (1501- )AGH30,AYH30 ..L,Q)
72129-58240-C0	Protector, Seat Track Lower Rail	Seat & Seat Track ([01.2015 - ] REAR SEAT TRACK RAIL (1501- )GGH30..ALPHD ; (1501- )AGH30,AYH30 ..L,Q)
72129-58300-C0	Protector, Seat Track Lower Rail, No.1	Seat & Seat Track ([01.2015 - ] REAR SEAT TRACK RAIL (1501- )GGH30..ALPHD ; (1501- )AGH30,AYH30 ..L,Q)
72129-58310-C0	Protector, Seat Track Lower Rail, No.2	Seat & Seat Track ([01.2015 - ] REAR SEAT TRACK RAIL (1501- )GGH30..ALPHD ; (1501- )AGH30,AYH30 ..L,Q)
72160-58280	Track Assy, Rear Rh Seat, Outer No.1	Seat & Seat Track ([01.2015 - ] REAR SEAT TRACK RAIL (1501- )GGH30..ALPHD ; (1501- )AGH30,AYH30 ..L,Q)
72160-58300	Track Assy, Rear Lh Seat, Inner No.1	Seat & Seat Track ([01.2015 - ] REAR SEAT TRACK RAIL (1501- )GGH30..ALPHD ; (1501- )AGH30,AYH30 ..L,Q)
72160-58300-C0	Track Assy, Rear Lh Seat, Inner No.1	Seat & Seat Track ([01.2015 - ] REAR SEAT TRACK RAIL (1501- )GGH30..ALPHD ; (1501- )AGH30,AYH30 ..L,Q)
72160-58310	Track Assy, Rear Rh Seat, Inner No.1	Seat & Seat Track ([01.2015 - ] REAR SEAT TRACK RAIL (1501- )GGH30..ALPHD ; (1501- )AGH30,AYH30 ..L,Q)
72160-58310-C0	Track Assy, Rear Rh Seat, Inner No.1	Seat & Seat Track ([01.2015 - ] REAR SEAT TRACK RAIL (1501- )GGH30..ALPHD ; (1501- )AGH30,AYH30 ..L,Q)
72160-58330	Track Assy, Rear Lh Seat, Outer No.1	Seat & Seat Track ([01.2015 - ] REAR SEAT TRACK RAIL (1501- )GGH30..ALPHD ; (1501- )AGH30,AYH30 ..L,Q)
72160-58520	Track Assy, Rear Rh Seat, Outer No.1	Seat & Seat Track ([01.2015 - ] REAR SEAT TRACK RAIL (1501- )GGH30..ALPHD ; (1501- )AGH30,AYH30 ..L,Q)
72160-58530	Track Assy, Rear Lh Seat, Outer No.1	Seat & Seat Track ([01.2015 - ] REAR SEAT TRACK RAIL (1501- )GGH30..ALPHD ; (1501- )AGH30,AYH30 ..L,Q)
72160-V2010	Track Assy, Rear Rh Seat, Outer No.1Track Assy, Rear Rh Seat, Outer No.1	Seat & Seat Track ([01.2015 - ] REAR SEAT TRACK RAIL (1501- )GGH30..ALPHD ; (1501- )AGH30,AYH30 ..L,Q)
72180-58040	Track Assy, Rear Rh Seat, Outer No.2	Seat & Seat Track ([01.2015 - ] REAR SEAT TRACK RAIL (1501- )GGH30..ALPHD ; (1501- )AGH30,AYH30 ..L,Q)
72190-58050	Track Assy, Rear Lh Seat, Outer No.2	Seat & Seat Track ([01.2015 - ] REAR SEAT TRACK RAIL (1501- )GGH30..ALPHD ; (1501- )AGH30,AYH30 ..L,Q)
72265-58030-A0	Cover, Seat Track Upper Rail, Rh	Seat & Seat Track ([01.2015 - ] REAR SEAT TRACK RAIL (1501- )GGH30..ALPHD ; (1501- )AGH30,AYH30 ..L,Q)
72265-58040-A0	Cover, Seat Track Upper Rail, Rh	Seat & Seat Track ([01.2015 - ] REAR SEAT TRACK RAIL (1501- )GGH30..ALPHD ; (1501- )AGH30,AYH30 ..L,Q)
72266-58030-A0	Cover, Seat Track Upper Rail, Lh	Seat & Seat Track ([01.2015 - ] REAR SEAT TRACK RAIL (1501- )GGH30..ALPHD ; (1501- )AGH30,AYH30 ..L,Q)
72266-58040-A0	Cover, Seat Track Upper Rail, Lh	Seat & Seat Track ([01.2015 - ] REAR SEAT TRACK RAIL (1501- )GGH30..ALPHD ; (1501- )AGH30,AYH30 ..L,Q)
72275-58020	Stopper, Rear Seat Track Slide	Seat & Seat Track ([01.2015 - ] REAR SEAT TRACK RAIL (1501- )GGH30..ALPHD ; (1501- )AGH30,AYH30 ..L,Q)
72525-58050-A1	Handle, Reclining Adjuster Release, Rh	Seat & Seat Track ([01.2015 - ] REAR SEAT TRACK RAIL (1501- )GGH30..ALPHD ; (1501- )AGH30,AYH30 ..L,Q)
72526-58050-A1	Handle, Reclining Adjuster Release, No.4 Lh	Seat & Seat Track ([01.2015 - ] REAR SEAT TRACK RAIL (1501- )GGH30..ALPHD ; (1501- )AGH30,AYH30 ..L,Q)
72615-58060-C0	Cover, Rear Seat Lock Striker	Seat & Seat Track ([01.2015 - ] REAR SEAT TRACK RAIL (1501- )GGH30..ALPHD ; (1501- )AGH30,AYH30 ..L,Q)
72615-58070-C0	Cover, Rear Seat Lock Striker, Rh	Seat & Seat Track ([01.2015 - ] REAR SEAT TRACK RAIL (1501- )GGH30..ALPHD ; (1501- )AGH30,AYH30 ..L,Q)
72615-58080-C0	Cover, Rear Seat Lock Striker	Seat & Seat Track ([01.2015 - ] REAR SEAT TRACK RAIL (1501- )GGH30..ALPHD ; (1501- )AGH30,AYH30 ..L,Q)
72615-58090-C0	Cover, Rear Seat Lock Striker, Rh	Seat & Seat Track ([01.2015 - ] REAR SEAT TRACK RAIL (1501- )GGH30..ALPHD ; (1501- )AGH30,AYH30 ..L,Q)
90119-10951	BOLT WWASHER	Seat & Seat Track ([01.2015 - ] REAR SEAT TRACK RAIL (1501- )GGH30..ALPHD ; (1501- )AGH30,AYH30 ..L,Q)
90176-10009	New Genuine Part	Seat & Seat Track ([01.2015 - ] REAR SEAT TRACK RAIL (1501- )GGH30..ALPHD ; (1501- )AGH30,AYH30 ..L,Q)
90178-10029	Nut(For Front Suspension Support)	Seat & Seat Track ([01.2015 - ] REAR SEAT TRACK RAIL (1501- )GGH30..ALPHD ; (1501- )AGH30,AYH30 ..L,Q)
90178-12014	NUT FLANGE	Seat & Seat Track ([01.2015 - ] REAR SEAT TRACK RAIL (1501- )GGH30..ALPHD ; (1501- )AGH30,AYH30 ..L,Q)
