Search › Model › AYH30

AYH30

Toyota ALPHARD-VELLFIRE · 2015 · 4,129 parts · 321 categories

4,129 items

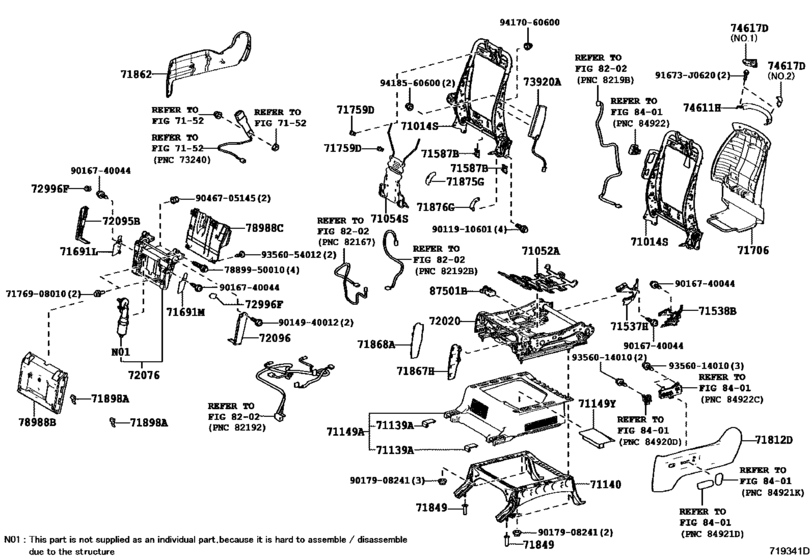

Seat & Seat Track ([01.2015 - ] PASSENGER SEAT (1501- )AYH30) 45

#	OEM	Part name
71014	71014-58050	Frame Sub-Assy, Front Seat Back, Lh
71052	71051-47060	Spring Sub-Assy, Front Seat Cushion, Rh
71054	71053-52050	Spring Sub-Assy, Front Seat Back, Rh
71139	71139-58340-C0	Cover, Front Seat Leg, No.1
71140	71140-58070	Leg Assy, Front Seat, Lh
71149	71149-58170-C0	Cover, Front Seat Leg, Lh
71149	71149-58200-C0	Cover, Front Seat Leg, Lh No.2 (For Lh Seat)
71537	71537-22040-A1	Protector, Front Seat Cushion Edge, Rh(For Lh Seat)
71538	71538-22020-A1	Protector, Front Seat Cushion Edge, Lh(For Lh Seat)
71587	71587-52030	Protector, Front Seat Back Edge
71691	71691-50010-C0	Cover, Front Seat Cushion Hinge, Rh
71691	71691-50020-C0	Cover, Front Seat Cushion Hinge, Lh
71706	71705-58020-A0	Board Sub-Assy, Front Seat Back, Rh
71759	71759-47011	Hook, Front Seat Back
71812	71812-58110-A0	Shield, Front Seat Cushion, Lh
71849	71848-52040	Cap, Seat Adjuster Cover, Rh
71862	71862-58080-A0	Shield, Front Seat Cushion, Inner Lh
71867	71867-58070-A0	Shield, Front Seat Cushion, Inner No.1 Rh
71868	71868-58060-A0	Shield, Front Seat Cushion, Inner No.1 Lh
71875	71875-60210-A3	Cover, Reclining Adjuster Inside, Rh
71876	71876-60210-A3	Cover, Reclining Adjuster Inside, Lh
71898	71898-50010	Hook, Seat Cover
72020	72020-58050	Adjuster Assy, Front Seat, Lh
72076	72076-58010	Arm Sub-Assy, Reclining Adjuster, Lwr Inner Lh
72095	72095-58010-C0	Plate Sub-Assy, Front Seat, Rh
72096	72096-58010-C0	Plate Sub-Assy, Front Seat, Lh
72996	72996-50120-C0	Cover, Front Seat
73920	73920-58040	Air Bag Assy, Front Seat, Lh
74611	74690-58010-A1	Grip, Assist
74617	74617-58050-A0	Plug, Assist Grip
74617	74618-58010-A0	Plug, Assist Grip
78988	78988-58010	Cover, Front Seat Footrest, No.1
78988	78988-58020-C0	Cover, Front Seat Footrest, No.2
91673	91673-J0620	New Genuine Part
7176908010	71769-08010	Clip, Front Seat Cushion Shield, Rh
7889950010	78899-50010	Bolt, Front Seat
9011910601	90119-10601	BOLT W-WASHER
9014940012	90149-40012	SCREW
9016740044	90167-40044	BOLT
9017908241	90179-08241	NUT
9046705145	90467-05145	Retainer, Cowl Side Trim
9356014010	93560-14010	SCREW
9356054012	93560-54012	Screw
9417060600	94170-60600	NUT CAP
9418560600	94185-60600	Nut, Wire Adjusting, No.1

OEM	Part name	Category
71014-58050	Frame Sub-Assy, Front Seat Back, Lh	Seat & Seat Track ([01.2015 - ] PASSENGER SEAT (1501- )AYH30)
71051-47060	Spring Sub-Assy, Front Seat Cushion, Rh	Seat & Seat Track ([01.2015 - ] PASSENGER SEAT (1501- )AYH30)
71053-52050	Spring Sub-Assy, Front Seat Back, Rh	Seat & Seat Track ([01.2015 - ] PASSENGER SEAT (1501- )AYH30)
71139-58340-C0	Cover, Front Seat Leg, No.1	Seat & Seat Track ([01.2015 - ] PASSENGER SEAT (1501- )AYH30)
71140-58070	Leg Assy, Front Seat, Lh	Seat & Seat Track ([01.2015 - ] PASSENGER SEAT (1501- )AYH30)
71149-58170-C0	Cover, Front Seat Leg, Lh	Seat & Seat Track ([01.2015 - ] PASSENGER SEAT (1501- )AYH30)
71149-58200-C0	Cover, Front Seat Leg, Lh No.2 (For Lh Seat)	Seat & Seat Track ([01.2015 - ] PASSENGER SEAT (1501- )AYH30)
71537-22040-A1	Protector, Front Seat Cushion Edge, Rh(For Lh Seat)	Seat & Seat Track ([01.2015 - ] PASSENGER SEAT (1501- )AYH30)
71538-22020-A1	Protector, Front Seat Cushion Edge, Lh(For Lh Seat)	Seat & Seat Track ([01.2015 - ] PASSENGER SEAT (1501- )AYH30)
71587-52030	Protector, Front Seat Back Edge	Seat & Seat Track ([01.2015 - ] PASSENGER SEAT (1501- )AYH30)
71691-50010-C0	Cover, Front Seat Cushion Hinge, Rh	Seat & Seat Track ([01.2015 - ] PASSENGER SEAT (1501- )AYH30)
71691-50020-C0	Cover, Front Seat Cushion Hinge, Lh	Seat & Seat Track ([01.2015 - ] PASSENGER SEAT (1501- )AYH30)
71705-58020-A0	Board Sub-Assy, Front Seat Back, Rh	Seat & Seat Track ([01.2015 - ] PASSENGER SEAT (1501- )AYH30)
71759-47011	Hook, Front Seat Back	Seat & Seat Track ([01.2015 - ] PASSENGER SEAT (1501- )AYH30)
71769-08010	Clip, Front Seat Cushion Shield, Rh	Seat & Seat Track ([01.2015 - ] PASSENGER SEAT (1501- )AYH30)
71812-58110-A0	Shield, Front Seat Cushion, Lh	Seat & Seat Track ([01.2015 - ] PASSENGER SEAT (1501- )AYH30)
71848-52040	Cap, Seat Adjuster Cover, Rh	Seat & Seat Track ([01.2015 - ] PASSENGER SEAT (1501- )AYH30)
71862-58080-A0	Shield, Front Seat Cushion, Inner Lh	Seat & Seat Track ([01.2015 - ] PASSENGER SEAT (1501- )AYH30)
71867-58070-A0	Shield, Front Seat Cushion, Inner No.1 Rh	Seat & Seat Track ([01.2015 - ] PASSENGER SEAT (1501- )AYH30)
71868-58060-A0	Shield, Front Seat Cushion, Inner No.1 Lh	Seat & Seat Track ([01.2015 - ] PASSENGER SEAT (1501- )AYH30)
71875-60210-A3	Cover, Reclining Adjuster Inside, Rh	Seat & Seat Track ([01.2015 - ] PASSENGER SEAT (1501- )AYH30)
71876-60210-A3	Cover, Reclining Adjuster Inside, Lh	Seat & Seat Track ([01.2015 - ] PASSENGER SEAT (1501- )AYH30)
71898-50010	Hook, Seat Cover	Seat & Seat Track ([01.2015 - ] PASSENGER SEAT (1501- )AYH30)
72020-58050	Adjuster Assy, Front Seat, Lh	Seat & Seat Track ([01.2015 - ] PASSENGER SEAT (1501- )AYH30)
72076-58010	Arm Sub-Assy, Reclining Adjuster, Lwr Inner Lh	Seat & Seat Track ([01.2015 - ] PASSENGER SEAT (1501- )AYH30)
72095-58010-C0	Plate Sub-Assy, Front Seat, Rh	Seat & Seat Track ([01.2015 - ] PASSENGER SEAT (1501- )AYH30)
72096-58010-C0	Plate Sub-Assy, Front Seat, Lh	Seat & Seat Track ([01.2015 - ] PASSENGER SEAT (1501- )AYH30)
72996-50120-C0	Cover, Front Seat	Seat & Seat Track ([01.2015 - ] PASSENGER SEAT (1501- )AYH30)
73920-58040	Air Bag Assy, Front Seat, Lh	Seat & Seat Track ([01.2015 - ] PASSENGER SEAT (1501- )AYH30)
74617-58050-A0	Plug, Assist Grip	Seat & Seat Track ([01.2015 - ] PASSENGER SEAT (1501- )AYH30)
74618-58010-A0	Plug, Assist Grip	Seat & Seat Track ([01.2015 - ] PASSENGER SEAT (1501- )AYH30)
74690-58010-A1	Grip, Assist	Seat & Seat Track ([01.2015 - ] PASSENGER SEAT (1501- )AYH30)
78899-50010	Bolt, Front Seat	Seat & Seat Track ([01.2015 - ] PASSENGER SEAT (1501- )AYH30)
78988-58010	Cover, Front Seat Footrest, No.1	Seat & Seat Track ([01.2015 - ] PASSENGER SEAT (1501- )AYH30)
78988-58020-C0	Cover, Front Seat Footrest, No.2	Seat & Seat Track ([01.2015 - ] PASSENGER SEAT (1501- )AYH30)
90119-10601	BOLT W-WASHER	Seat & Seat Track ([01.2015 - ] PASSENGER SEAT (1501- )AYH30)
90149-40012	SCREW	Seat & Seat Track ([01.2015 - ] PASSENGER SEAT (1501- )AYH30)
90167-40044	BOLT	Seat & Seat Track ([01.2015 - ] PASSENGER SEAT (1501- )AYH30)
90179-08241	NUT	Seat & Seat Track ([01.2015 - ] PASSENGER SEAT (1501- )AYH30)
90467-05145	Retainer, Cowl Side Trim	Seat & Seat Track ([01.2015 - ] PASSENGER SEAT (1501- )AYH30)
91673-J0620	New Genuine Part	Seat & Seat Track ([01.2015 - ] PASSENGER SEAT (1501- )AYH30)
93560-14010	SCREW	Seat & Seat Track ([01.2015 - ] PASSENGER SEAT (1501- )AYH30)
93560-54012	Screw	Seat & Seat Track ([01.2015 - ] PASSENGER SEAT (1501- )AYH30)
94170-60600	NUT CAP	Seat & Seat Track ([01.2015 - ] PASSENGER SEAT (1501- )AYH30)
94185-60600	Nut, Wire Adjusting, No.1	Seat & Seat Track ([01.2015 - ] PASSENGER SEAT (1501- )AYH30)
