| 16261-36120 |
Hose, Water By-Pass |

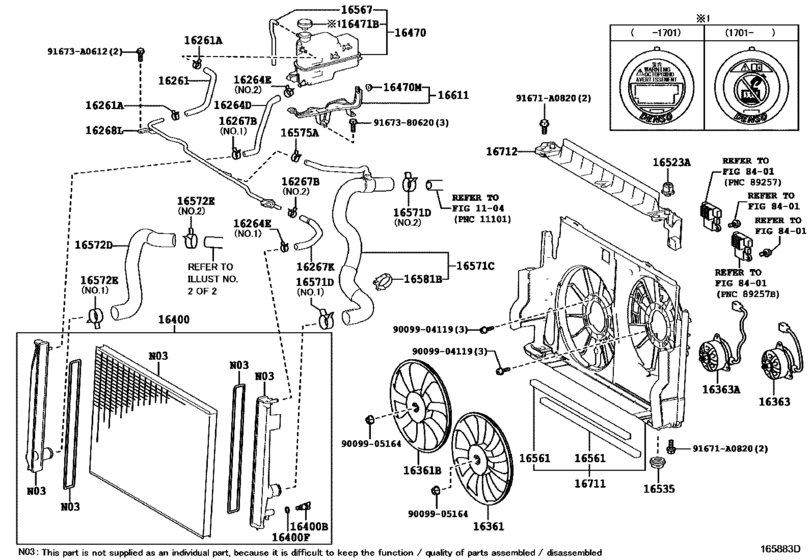

Radiator & Water Outlet ([01.2015 - ] RADIATOR SIDE (1501- )2ARFXE) |
| 16264-36120 |
Hose, Water By-Pass, No.2 |
Radiator & Water Outlet ([01.2015 - ] RADIATOR SIDE (1501- )2ARFXE) |
| 16267-36130 |
Hose, Water By-Pass, No.3 |
Radiator & Water Outlet ([01.2015 - ] RADIATOR SIDE (1501- )2ARFXE) |
| 16268-36210 |
Pipe, Water By-Pass |
Radiator & Water Outlet ([01.2015 - ] RADIATOR SIDE (1501- )2ARFXE) |
| 16361-31200 |
Fan, No.2 |
Radiator & Water Outlet ([01.2015 - ] RADIATOR SIDE (1501- )2ARFXE) |
| 16361-36220 |
Fan |
Radiator & Water Outlet ([01.2015 - ] RADIATOR SIDE (1501- )2ARFXE) |
| 16363-31460 |
Motor, Cooling Fan, No.2 |
Radiator & Water Outlet ([01.2015 - ] RADIATOR SIDE (1501- )2ARFXE) |
| 16363-36090 |
Motor, Cooling Fan |
Radiator & Water Outlet ([01.2015 - ] RADIATOR SIDE (1501- )2ARFXE) |
| 16400-28711 |
Radiator Assy |
Radiator & Water Outlet ([01.2015 - ] RADIATOR SIDE (1501- )2ARFXE) |
| 16400-28712 |
RADIATOR ASSY |
Radiator & Water Outlet ([01.2015 - ] RADIATOR SIDE (1501- )2ARFXE) |
| 16417-21280 |
Cock Sub-Assy, Radiator Drain |
Radiator & Water Outlet ([01.2015 - ] RADIATOR SIDE (1501- )2ARFXE) |
| 16470-28152 |
Tank Assy, Radiator Reserve |
Radiator & Water Outlet ([01.2015 - ] RADIATOR SIDE (1501- )2ARFXE) |
| 16472-28150 |
Hose(For Radiator Reserve Tank) |
Radiator & Water Outlet ([01.2015 - ] RADIATOR SIDE (1501- )2ARFXE) |
| 16475-28140 |
Cap Sub-Assy, Radiator Reserve Tank |
Radiator & Water Outlet ([01.2015 - ] RADIATOR SIDE (1501- )2ARFXE) |
| 16475-37011 |
Cap Sub-Assy, Radiator Reserve Tank |
Radiator & Water Outlet ([01.2015 - ] RADIATOR SIDE (1501- )2ARFXE) |
| 16492-21050 |
Ring, O(For Oil Cooler Drain Cock) |
Radiator & Water Outlet ([01.2015 - ] RADIATOR SIDE (1501- )2ARFXE) |
| 16523-21060 |
Cushion, Radiator Support |
Radiator & Water Outlet ([01.2015 - ] RADIATOR SIDE (1501- )2ARFXE) |
| 16535-20030 |
Support, Radiator, Lower |
Radiator & Water Outlet ([01.2015 - ] RADIATOR SIDE (1501- )2ARFXE) |
| 16535-36020 |
Support, Radiator, Lower |
Radiator & Water Outlet ([01.2015 - ] RADIATOR SIDE (1501- )2ARFXE) |
| 16561-31020 |
Seal, Radiator To Support, No.1 |
Radiator & Water Outlet ([01.2015 - ] RADIATOR SIDE (1501- )2ARFXE) |
| 16571-36200 |
Hose, Radiator, No.1 |
Radiator & Water Outlet ([01.2015 - ] RADIATOR SIDE (1501- )2ARFXE) |
| 16572-36190 |
Hose, Radiator, No.2 |
Radiator & Water Outlet ([01.2015 - ] RADIATOR SIDE (1501- )2ARFXE) |
| 16581-26040 |
Clamp, Hose(For Water Hose) |
Radiator & Water Outlet ([01.2015 - ] RADIATOR SIDE (1501- )2ARFXE) |
| 16611-36020 |
Bracket, Radiator Reserve Tank |
Radiator & Water Outlet ([01.2015 - ] RADIATOR SIDE (1501- )2ARFXE) |
| 16711-36220 |
Shroud, Fan |
Radiator & Water Outlet ([01.2015 - ] RADIATOR SIDE (1501- )2ARFXE) |
| 16712-36070 |
Shroud, Fan, No.2 |
Radiator & Water Outlet ([01.2015 - ] RADIATOR SIDE (1501- )2ARFXE) |
| 90099-04119 |
BOLT WASHER HEAD |
Radiator & Water Outlet ([01.2015 - ] RADIATOR SIDE (1501- )2ARFXE) |
| 90099-05164 |
Nut |
Radiator & Water Outlet ([01.2015 - ] RADIATOR SIDE (1501- )2ARFXE) |
| 90466-41005 |
Clamp Or Clip, Hose(For Radiator Inlet) |
Radiator & Water Outlet ([01.2015 - ] RADIATOR SIDE (1501- )2ARFXE) |
| 90467-15022 |
Clip Or Clamp(For Ventilation Hose) |
Radiator & Water Outlet ([01.2015 - ] RADIATOR SIDE (1501- )2ARFXE) |
| 90467-18008 |
Clip(For Water By-Pass Hose No.2) |
Radiator & Water Outlet ([01.2015 - ] RADIATOR SIDE (1501- )2ARFXE) |
| 90480-16044 |
Grommet |
Radiator & Water Outlet ([01.2015 - ] RADIATOR SIDE (1501- )2ARFXE) |
| 91671-A0820 |
New Genuine Part |
Radiator & Water Outlet ([01.2015 - ] RADIATOR SIDE (1501- )2ARFXE) |
| 91673-80620 |
Bolt |
Radiator & Water Outlet ([01.2015 - ] RADIATOR SIDE (1501- )2ARFXE) |
| 91673-A0612 |
Bolt |
Radiator & Water Outlet ([01.2015 - ] RADIATOR SIDE (1501- )2ARFXE) |
| 96136-41501 |
Clamp Or Clip, Hose(For Water By-Pass Hose) |
Radiator & Water Outlet ([01.2015 - ] RADIATOR SIDE (1501- )2ARFXE) |
| 96136-41901 |
Clip Or Clamp(For Ventilation Hose) |
Radiator & Water Outlet ([01.2015 - ] RADIATOR SIDE (1501- )2ARFXE) |
| 96136-44301 |
Clamp Or Clip, Hose(For Radiator Inlet) |
Radiator & Water Outlet ([01.2015 - ] RADIATOR SIDE (1501- )2ARFXE) |
