Search › Model › AYH30
AYH30

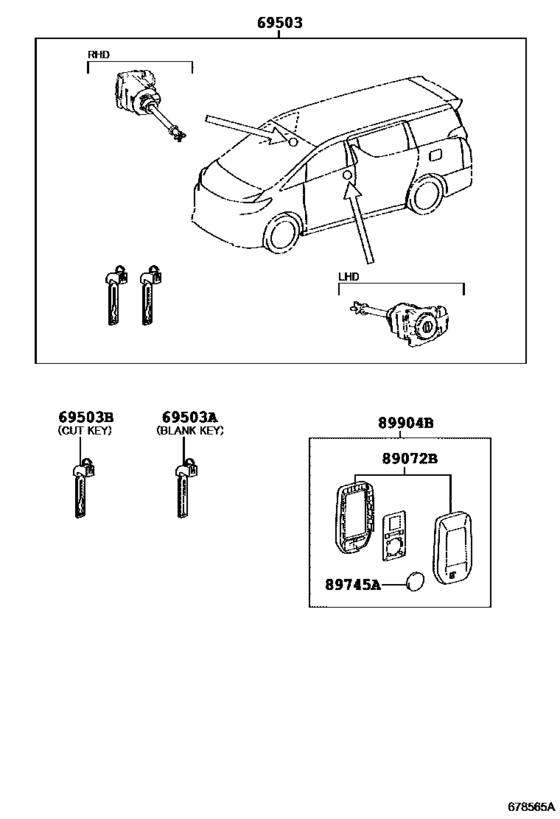

Lock Cylinder Set ([01.2015 - ] (1501- )) 9
| # | OEM | Part name |
|---|---|---|
| 69503 | 69005-58290 | Cylinder Set, Lock |
| 69503 | 69515-33120 | Key, Blank |
| 69503 | 69515-33110 | Key, Cut |
| 89072 | 89072-58220 | Housing Set, Door Control Transmitter (For Smart Key) |
| 89072 | 89072-58280 | Housing Set, Door Control Transmitter (For Smart Key) |
| 89745 | 89745-45010 | Battery, Transmitter |
| 89745 | 89745-50020 | Battery, Transmitter |
| 89904 | 89904-58270 | Transmitter Sub-Assy, Electrical Key |
| 89904 | 89904-58300 | Transmitter Sub-Assy, Electrical Key |
| OEM | Part name | Category |
|---|---|---|
| 69005-58290 | Cylinder Set, Lock | Lock Cylinder Set ([01.2015 - ] (1501- )) |
| 69515-33110 | Key, Cut | Lock Cylinder Set ([01.2015 - ] (1501- )) |
| 69515-33120 | Key, Blank | Lock Cylinder Set ([01.2015 - ] (1501- )) |
| 89072-58220 | Housing Set, Door Control Transmitter (For Smart Key) | Lock Cylinder Set ([01.2015 - ] (1501- )) |
| 89072-58280 | Housing Set, Door Control Transmitter (For Smart Key) | Lock Cylinder Set ([01.2015 - ] (1501- )) |
| 89745-45010 | Battery, Transmitter | Lock Cylinder Set ([01.2015 - ] (1501- )) |
| 89745-50020 | Battery, Transmitter | Lock Cylinder Set ([01.2015 - ] (1501- )) |
| 89904-58270 | Transmitter Sub-Assy, Electrical Key | Lock Cylinder Set ([01.2015 - ] (1501- )) |
| 89904-58300 | Transmitter Sub-Assy, Electrical Key | Lock Cylinder Set ([01.2015 - ] (1501- )) |
