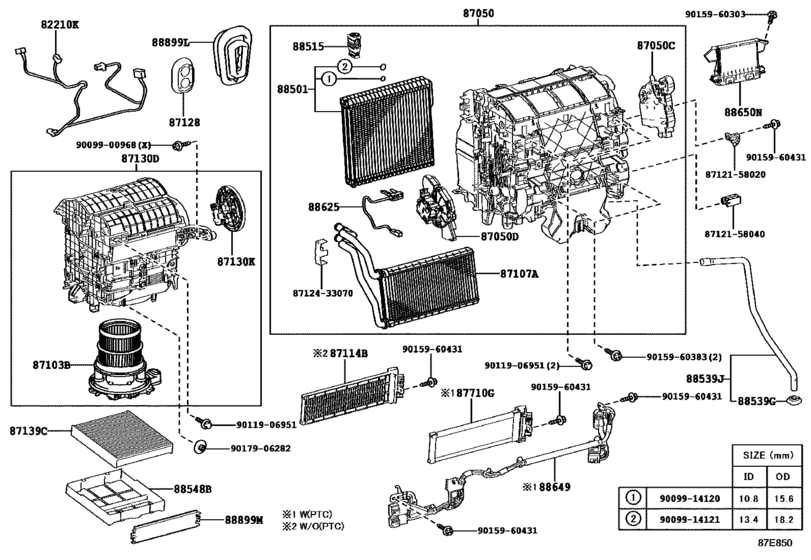

| 82212-58040 |
Harness Assy, Air Conditioner |
Heating & Air Conditioning - Cooler Unit ([01.2015 - ] FRONT (1501- )AYH30) |
| 87050-58100 |
Radiator Assy, Air Conditioner |
Heating & Air Conditioning - Cooler Unit ([01.2015 - ] FRONT (1501- )AYH30) |
| 87103-58070 |
Motor Sub-Assy, Blower W/fan |
Heating & Air Conditioning - Cooler Unit ([01.2015 - ] FRONT (1501- )AYH30) |
| 87106-28230 |
Damper Servo Sub-Assy, Air Conditioner Radiator, No.1 |
Heating & Air Conditioning - Cooler Unit ([01.2015 - ] FRONT (1501- )AYH30) |
| 87106-28250 |
Damper Servo Sub-Assy, Blower, No.1 |
Heating & Air Conditioning - Cooler Unit ([01.2015 - ] FRONT (1501- )AYH30) |
| 87106-48170 |
Damper Servo Sub-Assy, Air Conditioner Radiator, No.1 |
Heating & Air Conditioning - Cooler Unit ([01.2015 - ] FRONT (1501- )AYH30) |
| 87107-58050 |
Unit Sub-Assy, Heater Radiator |
Heating & Air Conditioning - Cooler Unit ([01.2015 - ] FRONT (1501- )AYH30) |
| 87114-58050 |
Cover, Heater |
Heating & Air Conditioning - Cooler Unit ([01.2015 - ] FRONT (1501- )AYH30) |
| 87121-58020 |
Bracket, Heater, Front Rh |
Heating & Air Conditioning - Cooler Unit ([01.2015 - ] FRONT (1501- )AYH30) |
| 87121-58040 |
Bracket, Heater, Front Rh |
Heating & Air Conditioning - Cooler Unit ([01.2015 - ] FRONT (1501- )AYH30) |
| 87124-33070 |
Clamp, Heater |
Heating & Air Conditioning - Cooler Unit ([01.2015 - ] FRONT (1501- )AYH30) |
| 87128-58030 |
Grommet, Heater |
Heating & Air Conditioning - Cooler Unit ([01.2015 - ] FRONT (1501- )AYH30) |
| 87130-58090 |
Blower Assy |
Heating & Air Conditioning - Cooler Unit ([01.2015 - ] FRONT (1501- )AYH30) |
| 87130-58091 |
Blower Assy |
Heating & Air Conditioning - Cooler Unit ([01.2015 - ] FRONT (1501- )AYH30) |
| 87139-58010 |
Filter, Clean Air (Charcoal) |
Heating & Air Conditioning - Cooler Unit ([01.2015 - ] FRONT (1501- )AYH30) |
| 87139-YZZ49 |
Filter, Cabin (Charcoal) |
Heating & Air Conditioning - Cooler Unit ([01.2015 - ] FRONT (1501- )AYH30) |
| 88501-58030 |
Evaporator Sub-Assy, Cooler, No.1 |
Heating & Air Conditioning - Cooler Unit ([01.2015 - ] FRONT (1501- )AYH30) |
| 88515-48110 |
Valve, Cooler Expansion |
Heating & Air Conditioning - Cooler Unit ([01.2015 - ] FRONT (1501- )AYH30) |
| 88539-58080 |
Hose, Drain Cooler |
Heating & Air Conditioning - Cooler Unit ([01.2015 - ] FRONT (1501- )AYH30) |
| 88620-28050 |
Sensor, Evaporator Temperature |
Heating & Air Conditioning - Cooler Unit ([01.2015 - ] FRONT (1501- )AYH30) |
| 88650-58220 |
Amplifier Assy, Air Conditioner |
Heating & Air Conditioning - Cooler Unit ([01.2015 - ] FRONT (1501- )AYH30) |
| 88650-58221 |
Amplifier Assy, Air Conditioner |
Heating & Air Conditioning - Cooler Unit ([01.2015 - ] FRONT (1501- )AYH30) |
| 88899-28620 |
Plate, Cover |
Heating & Air Conditioning - Cooler Unit ([01.2015 - ] FRONT (1501- )AYH30) |
| 88899-48070 |
Case, Air Filter |
Heating & Air Conditioning - Cooler Unit ([01.2015 - ] FRONT (1501- )AYH30) |
| 88899-58040 |
Parts, Cooling Unit |
Heating & Air Conditioning - Cooler Unit ([01.2015 - ] FRONT (1501- )AYH30) |
| 88899-58050 |
Case, Air Filter |
Heating & Air Conditioning - Cooler Unit ([01.2015 - ] FRONT (1501- )AYH30) |
| 90099-00968 |
Screw(For Air Conditioner Unit) |
Heating & Air Conditioning - Cooler Unit ([01.2015 - ] FRONT (1501- )AYH30) |
| 90099-14120 |
O-Ring, Cooler Evaporator No.1(Discharge) |
Heating & Air Conditioning - Cooler Unit ([01.2015 - ] FRONT (1501- )AYH30) |
| 90099-14121 |
O-Ring, Cooler Evaporator No.1(Suction) |
Heating & Air Conditioning - Cooler Unit ([01.2015 - ] FRONT (1501- )AYH30) |
| 90119-06951 |
BOLT WWASHER |
Heating & Air Conditioning - Cooler Unit ([01.2015 - ] FRONT (1501- )AYH30) |
| 90159-60303 |
SCREW |
Heating & Air Conditioning - Cooler Unit ([01.2015 - ] FRONT (1501- )AYH30) |
| 90159-60383 |
SCREW WWASHER |
Heating & Air Conditioning - Cooler Unit ([01.2015 - ] FRONT (1501- )AYH30) |
| 90159-60431 |
SCREW |
Heating & Air Conditioning - Cooler Unit ([01.2015 - ] FRONT (1501- )AYH30) |
| 90159-A0010 |
SCREW WWASHER TAPP |
Heating & Air Conditioning - Cooler Unit ([01.2015 - ] FRONT (1501- )AYH30) |
| 90179-06282 |
New Genuine Part |
Heating & Air Conditioning - Cooler Unit ([01.2015 - ] FRONT (1501- )AYH30) |
| 90480-26022 |
Grommet (For Cooler Unit) |
Heating & Air Conditioning - Cooler Unit ([01.2015 - ] FRONT (1501- )AYH30) |
