Search › Model › AYH30

AYH30

Toyota ALPHARD-VELLFIRE · 2015 · 4,129 parts · 321 categories

4,129 items

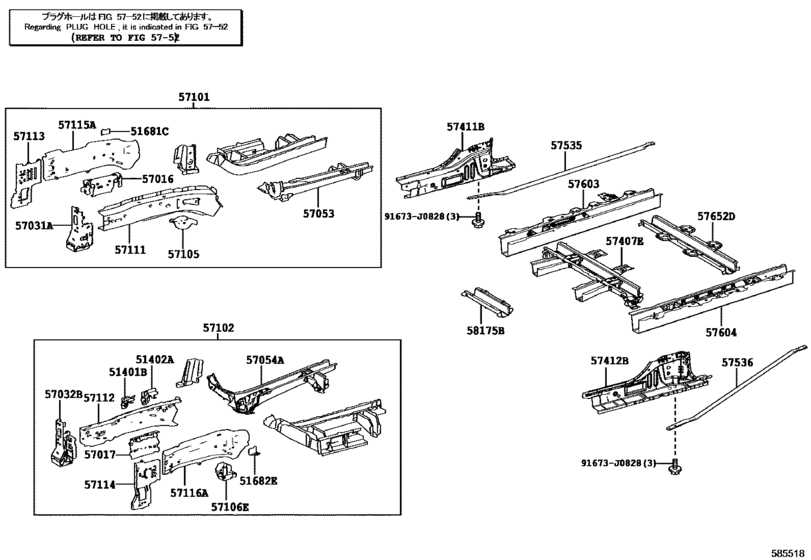

Front Floor Panel & Front Floor Member ([01.2015 - ] FLOOR MEMBER (1501- )) 30

#	OEM	Part name
51401	51401-28070	Bracket Sub-Assy, Engine Front Mounting
51402	51402-28060	Bracket Sub-Assy, Engine Front Mounting, Lh
51681	51681-12080	Plate, Front Brake Flexible Hose Support, Rh
51682	51682-12080	Plate, Front Brake Flexible Hose Support, Lh
57016	57016-12110	Reinforcement Sub-Assy, Front Side Member, Rh
57017	57017-12070	Reinforcement Sub-Assy, Front Side Member, Lh
57031	57031-12010	Reinforce Sub-Assy, Front Side Member, No.2 Rh
57032	57032-12010	Reinforcement Sub-Assy, Front Side Member, No.2 Lh
57053	57053-58010	Reinforcement Sub-Assy, Front Floor Cross Member, Rh
57054	57054-58010	Reinforcement Sub-Assy, Front Floor Cross Member, Lh
57101	57101-58040	Member Sub-Assy, Front Side, Rh
57102	57102-58050	Member Sub-Assy, Front Side, Lh
57105	57105-12160	Bracket Sub-Assy, Front Suspension Member Mounting, Front Rh
57106	57106-12150	Bracket Sub-Assy, Front Suspension Member Mounting, Front Lh
57111	57111-12230	Member, Front Side, Rh
57112	57112-58010	Member, Front Side, Lh
57113	57113-12220	Extension, Front Side Member, Rh
57114	57114-12191	Extension, Front Side Member, Lh
57115	57025-12010	Member Sub-Assy, Front Side, Outer Rh
57116	57026-12020	Member Sub-Assy, Front Side, Outer Lh
57407	57407-58100	Member Sub-Assy, Center Floor Cross
57411	57047-58010	Member, Floor Side, Inner Rh
57412	57048-58010	Member, Floor Side, Inner Lh
57535	57535-58010	Brace, Front Floor, Rh
57536	57536-58010	Brace, Front Floor, Lh
57603	57603-58020	Member Sub-Assy, Rear Floor Side, Front Rh
57604	57604-58050	Member Sub-Assy, Rear Floor Side, Front Lh
57652	57605-58070	Member, Rear Floor Cross, No.1
58175	58175-58010	Angle Sub-Assy, Front Floor, Rear
91673	91673-J0828	New Genuine Part

OEM	Part name	Category
51401-28070	Bracket Sub-Assy, Engine Front Mounting	Front Floor Panel & Front Floor Member ([01.2015 - ] FLOOR MEMBER (1501- ))
51402-28060	Bracket Sub-Assy, Engine Front Mounting, Lh	Front Floor Panel & Front Floor Member ([01.2015 - ] FLOOR MEMBER (1501- ))
51681-12080	Plate, Front Brake Flexible Hose Support, Rh	Front Floor Panel & Front Floor Member ([01.2015 - ] FLOOR MEMBER (1501- ))
51682-12080	Plate, Front Brake Flexible Hose Support, Lh	Front Floor Panel & Front Floor Member ([01.2015 - ] FLOOR MEMBER (1501- ))
57016-12110	Reinforcement Sub-Assy, Front Side Member, Rh	Front Floor Panel & Front Floor Member ([01.2015 - ] FLOOR MEMBER (1501- ))
57017-12070	Reinforcement Sub-Assy, Front Side Member, Lh	Front Floor Panel & Front Floor Member ([01.2015 - ] FLOOR MEMBER (1501- ))
57025-12010	Member Sub-Assy, Front Side, Outer Rh	Front Floor Panel & Front Floor Member ([01.2015 - ] FLOOR MEMBER (1501- ))
57026-12020	Member Sub-Assy, Front Side, Outer Lh	Front Floor Panel & Front Floor Member ([01.2015 - ] FLOOR MEMBER (1501- ))
57031-12010	Reinforce Sub-Assy, Front Side Member, No.2 Rh	Front Floor Panel & Front Floor Member ([01.2015 - ] FLOOR MEMBER (1501- ))
57032-12010	Reinforcement Sub-Assy, Front Side Member, No.2 Lh	Front Floor Panel & Front Floor Member ([01.2015 - ] FLOOR MEMBER (1501- ))
57047-58010	Member, Floor Side, Inner Rh	Front Floor Panel & Front Floor Member ([01.2015 - ] FLOOR MEMBER (1501- ))
57048-58010	Member, Floor Side, Inner Lh	Front Floor Panel & Front Floor Member ([01.2015 - ] FLOOR MEMBER (1501- ))
57053-58010	Reinforcement Sub-Assy, Front Floor Cross Member, Rh	Front Floor Panel & Front Floor Member ([01.2015 - ] FLOOR MEMBER (1501- ))
57054-58010	Reinforcement Sub-Assy, Front Floor Cross Member, Lh	Front Floor Panel & Front Floor Member ([01.2015 - ] FLOOR MEMBER (1501- ))
57101-58040	Member Sub-Assy, Front Side, Rh	Front Floor Panel & Front Floor Member ([01.2015 - ] FLOOR MEMBER (1501- ))
57102-58050	Member Sub-Assy, Front Side, Lh	Front Floor Panel & Front Floor Member ([01.2015 - ] FLOOR MEMBER (1501- ))
57105-12160	Bracket Sub-Assy, Front Suspension Member Mounting, Front Rh	Front Floor Panel & Front Floor Member ([01.2015 - ] FLOOR MEMBER (1501- ))
57106-12150	Bracket Sub-Assy, Front Suspension Member Mounting, Front Lh	Front Floor Panel & Front Floor Member ([01.2015 - ] FLOOR MEMBER (1501- ))
57111-12230	Member, Front Side, Rh	Front Floor Panel & Front Floor Member ([01.2015 - ] FLOOR MEMBER (1501- ))
57112-58010	Member, Front Side, Lh	Front Floor Panel & Front Floor Member ([01.2015 - ] FLOOR MEMBER (1501- ))
57113-12220	Extension, Front Side Member, Rh	Front Floor Panel & Front Floor Member ([01.2015 - ] FLOOR MEMBER (1501- ))
57114-12191	Extension, Front Side Member, Lh	Front Floor Panel & Front Floor Member ([01.2015 - ] FLOOR MEMBER (1501- ))
57407-58100	Member Sub-Assy, Center Floor Cross	Front Floor Panel & Front Floor Member ([01.2015 - ] FLOOR MEMBER (1501- ))
57535-58010	Brace, Front Floor, Rh	Front Floor Panel & Front Floor Member ([01.2015 - ] FLOOR MEMBER (1501- ))
57536-58010	Brace, Front Floor, Lh	Front Floor Panel & Front Floor Member ([01.2015 - ] FLOOR MEMBER (1501- ))
57603-58020	Member Sub-Assy, Rear Floor Side, Front Rh	Front Floor Panel & Front Floor Member ([01.2015 - ] FLOOR MEMBER (1501- ))
57604-58050	Member Sub-Assy, Rear Floor Side, Front Lh	Front Floor Panel & Front Floor Member ([01.2015 - ] FLOOR MEMBER (1501- ))
57605-58070	Member, Rear Floor Cross, No.1	Front Floor Panel & Front Floor Member ([01.2015 - ] FLOOR MEMBER (1501- ))
58175-58010	Angle Sub-Assy, Front Floor, Rear	Front Floor Panel & Front Floor Member ([01.2015 - ] FLOOR MEMBER (1501- ))
91673-J0828	New Genuine Part	Front Floor Panel & Front Floor Member ([01.2015 - ] FLOOR MEMBER (1501- ))
