AYH30

Toyota ALPHARD-VELLFIRE · 2015 · 4,129 parts · 321 categories

4,129 items

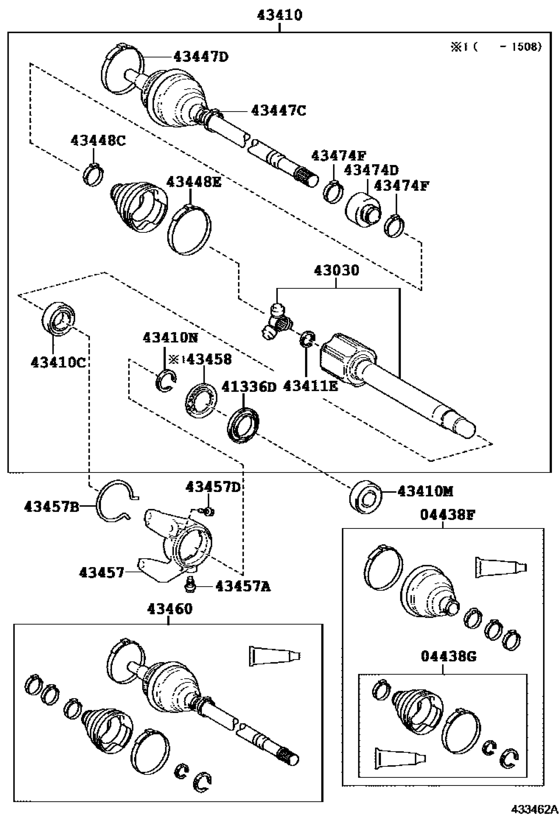

Front Drive Shaft ([01.2015 - ] RH (1501- )AYH30) 24

#	OEM	Part name
4438	04427-58100	Boot Kit, Front Drive Shaft, In & Outboard, Rh
4438	04427-58101	Boot Kit, Front Drive Shaft, In & Outboard, Rh
4438	04437-58040	Boot Kit, Front Drive Shaft Inboard Joint, Rh
41336	41336-78010	Cover, Front Drive Shaft Dust, Rh
43030	43030-58060	Joint Assy, Front Drive Inboard, Rh
43410	43410-58070	Shaft Assy, Front Drive, Rh
43410	90363-41003	Bearing (For Front Drive Shaft)
43410	90311-40039	Oil Seal, Front Drive Shaft, Rh
43410	43425-78010	Ring, Hole Snap (For Front Drive Shaft Rh)
43411	43425-78020	Ring, Hole Snap (For Front Drive Shaft Rh)
43447	42345-58140	Clamp (For Front Axle Outboard Joint Boot Rh)
43447	42346-24020	Clamp (For Front Axle Outboard Joint Boot Rh)
43447	42345-58020	Clamp, No.2 (For Front Axle Outboard Joint Boot Rh)
43447	42345-58130	Clamp, No.2 (For Front Axle Outboard Joint Boot Rh)
43448	42345-78010	Clamp (For Front Axle Inboard Joint Boot Rh)
43448	42345-78020	Clamp, No.2 (For Front Axle Inboard Joint Boot Rh)
43457	43457-33040	Bracket, Drive Shaft Bearing
43457	90119-10461	Bolt (For Drive Shaft Bearing Bracket Setting No.1)
43457	90521-78002	Ring, Hole Snap(For Rear Drive Shaft)
43457	90105-10381	Bolt (For Drive Shaft Bearing Bracket Setting No.1)
43458	43458-78010	Cover, Front Drive Shaft Dust
43460	43460-59865	Shaft Assy, Front Drive Outboard Joint, Rh
43474	43474-58010	Damper, Front Drive Shaft, Rh
43474	42345-58050	Clamp (For Front Drive Shaft Damper Rh)

OEM	Part name	Category
04427-58100	Boot Kit, Front Drive Shaft, In & Outboard, Rh	Front Drive Shaft ([01.2015 - ] RH (1501- )AYH30)
04427-58101	Boot Kit, Front Drive Shaft, In & Outboard, Rh	Front Drive Shaft ([01.2015 - ] RH (1501- )AYH30)
04437-58040	Boot Kit, Front Drive Shaft Inboard Joint, Rh	Front Drive Shaft ([01.2015 - ] RH (1501- )AYH30)
41336-78010	Cover, Front Drive Shaft Dust, Rh	Front Drive Shaft ([01.2015 - ] RH (1501- )AYH30)
42345-58020	Clamp, No.2 (For Front Axle Outboard Joint Boot Rh)	Front Drive Shaft ([01.2015 - ] RH (1501- )AYH30)
42345-58050	Clamp (For Front Drive Shaft Damper Rh)	Front Drive Shaft ([01.2015 - ] RH (1501- )AYH30)
42345-58130	Clamp, No.2 (For Front Axle Outboard Joint Boot Rh)	Front Drive Shaft ([01.2015 - ] RH (1501- )AYH30)
42345-58140	Clamp (For Front Axle Outboard Joint Boot Rh)	Front Drive Shaft ([01.2015 - ] RH (1501- )AYH30)
42345-78010	Clamp (For Front Axle Inboard Joint Boot Rh)	Front Drive Shaft ([01.2015 - ] RH (1501- )AYH30)
42345-78020	Clamp, No.2 (For Front Axle Inboard Joint Boot Rh)	Front Drive Shaft ([01.2015 - ] RH (1501- )AYH30)
42346-24020	Clamp (For Front Axle Outboard Joint Boot Rh)	Front Drive Shaft ([01.2015 - ] RH (1501- )AYH30)
43030-58060	Joint Assy, Front Drive Inboard, Rh	Front Drive Shaft ([01.2015 - ] RH (1501- )AYH30)
43410-58070	Shaft Assy, Front Drive, Rh	Front Drive Shaft ([01.2015 - ] RH (1501- )AYH30)
43425-78010	Ring, Hole Snap (For Front Drive Shaft Rh)	Front Drive Shaft ([01.2015 - ] RH (1501- )AYH30)
43425-78020	Ring, Hole Snap (For Front Drive Shaft Rh)	Front Drive Shaft ([01.2015 - ] RH (1501- )AYH30)
43457-33040	Bracket, Drive Shaft Bearing	Front Drive Shaft ([01.2015 - ] RH (1501- )AYH30)
43458-78010	Cover, Front Drive Shaft Dust	Front Drive Shaft ([01.2015 - ] RH (1501- )AYH30)
43460-59865	Shaft Assy, Front Drive Outboard Joint, Rh	Front Drive Shaft ([01.2015 - ] RH (1501- )AYH30)
43474-58010	Damper, Front Drive Shaft, Rh	Front Drive Shaft ([01.2015 - ] RH (1501- )AYH30)
90105-10381	Bolt (For Drive Shaft Bearing Bracket Setting No.1)	Front Drive Shaft ([01.2015 - ] RH (1501- )AYH30)
90119-10461	Bolt (For Drive Shaft Bearing Bracket Setting No.1)	Front Drive Shaft ([01.2015 - ] RH (1501- )AYH30)
90311-40039	Oil Seal, Front Drive Shaft, Rh	Front Drive Shaft ([01.2015 - ] RH (1501- )AYH30)
90363-41003	Bearing (For Front Drive Shaft)	Front Drive Shaft ([01.2015 - ] RH (1501- )AYH30)
90521-78002	Ring, Hole Snap(For Rear Drive Shaft)	Front Drive Shaft ([01.2015 - ] RH (1501- )AYH30)
