Search › Model › AYH30
AYH30

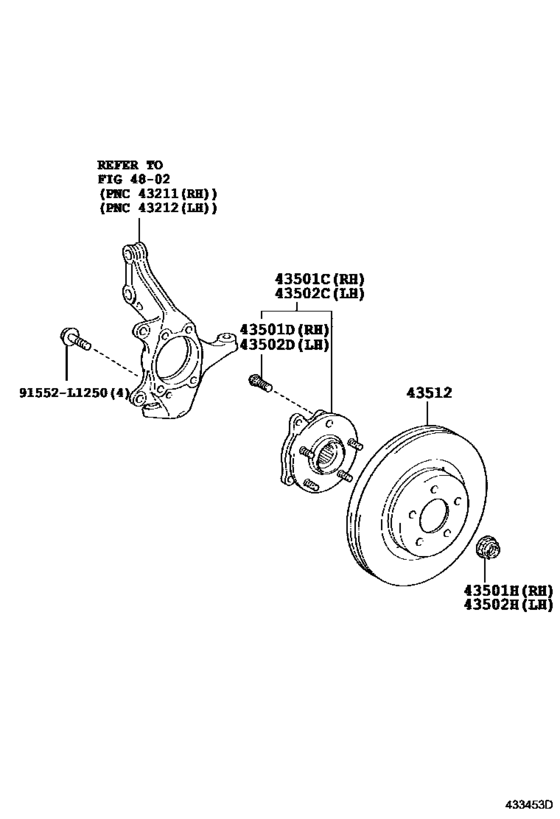

Front Axle Hub ([01.2015 - ] (1501- )) 6
| # | OEM | Part name |
|---|---|---|
| 43501 | 43550-28030 | Hub Sub-Assy, Front Axle, Rh |
| 43501 | 90942-02049 | Bolt, Hub |
| 43501 | 90942-02082 | Bolt, Hub |
| 43501 | 90177-22001 | Nut (For Axle Shaft) |
| 43512 | 43512-28190 | Disc, Front |
| 91552 | 91552-L1250 | BOLT FLANGE |
| OEM | Part name | Category |
|---|---|---|
| 43512-28190 | Disc, Front | Front Axle Hub ([01.2015 - ] (1501- )) |
| 43550-28030 | Hub Sub-Assy, Front Axle, Rh | Front Axle Hub ([01.2015 - ] (1501- )) |
| 90177-22001 | Nut (For Axle Shaft) | Front Axle Hub ([01.2015 - ] (1501- )) |
| 90942-02049 | Bolt, Hub | Front Axle Hub ([01.2015 - ] (1501- )) |
| 90942-02082 | Bolt, Hub | Front Axle Hub ([01.2015 - ] (1501- )) |
| 91552-L1250 | BOLT FLANGE | Front Axle Hub ([01.2015 - ] (1501- )) |
