Search › Model › AYH30

AYH30

Toyota ALPHARD-VELLFIRE · 2015 · 4,129 parts · 321 categories

4,129 items

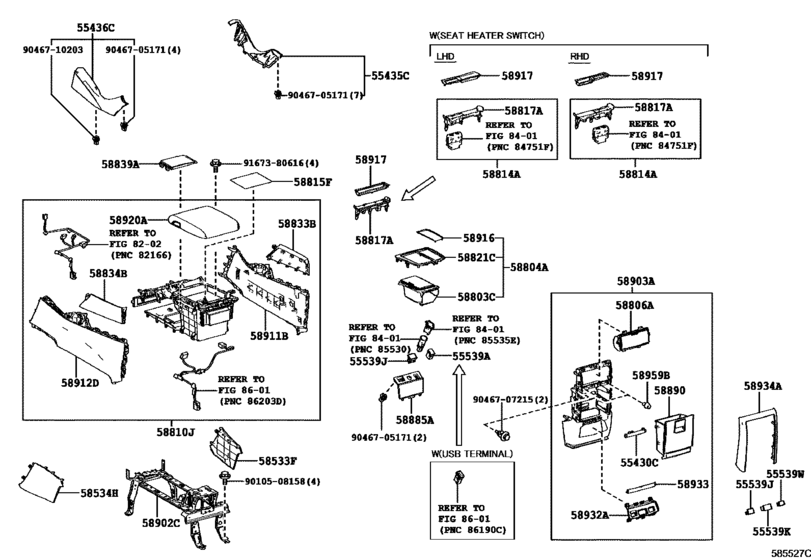

Console Box & Bracket ([01.2015 - ] (1501- )GGH30..ALPHD ; (1501- )AGH30,AYH30 ..L,Q) 40

#	OEM	Part name
55430	55430-58020	Damper Assy, Instrument Cluster Finish Panel
55435	55412-58210-A1	Panel, Instrument Panel Finish, End Rh
55436	55413-58050-A1	Panel, Instrument Panel Finish, End Lh
55539	55539-58070-C0	Cover, Spare Switch Hole
55539	55539-58120-C0	Cover, Spare Switch Hole
55539	55539-58080-C0	Cover, Spare Switch Hole
55539	55539-58100-C0	Cover, Spare Switch Hole
58533	58533-58070-C0	Cover, Floor Carpet, Center Rh
58534	58534-58070-C0	Cover, Floor Carpet, Center Lh
58803	58803-58160	Box Sub-Assy, Console Cup Holder
58804	58804-58170	Panel Sub-Assy, Console, Upper
58806	58806-58020	Pocket Sub-Assy, Console Box
58810	58810-58310-C2	Box Assy, Console
58810	58810-58311-C2	Box Assy, Console
58815	58815-58040	Carpet, Console Box
58817	58817-58020	Insert, Console Box, Front No.2
58821	58821-58170	Panel, Console, Upper
58833	58833-58150-A0	Garnish, Console Upper Panel, No.1
58834	58834-58120-A0	Garnish, Console Upper Panel, No.2
58839	58839-58040	Cover, Console Box Hole
58885	58885-58010	Panel, Equipment Set
58890	58890-58020-C0	Box Assy, Trash
58902	58902-58060	Bracket Sub-Assy, Console Box Mounting
58903	58903-58340-C0	Panel Sub-Assy, Console Rear End
58903	58903-58341-C0	Panel Sub-Assy, Console Rear End
58911	58911-58070-C0	Panel, Box, No.1
58912	58912-58060-C0	Panel, Box, No.2
58916	58916-58050	Mat, Box Bottom
58917	58917-58040	Mat, Box Bottom, No.2
58920	58920-58020-A2	Armrest Assy, Rear Console
58932	58932-58010-C0	Garnish, Rear Console Box
58932	58932-58011-C0	Garnish, Rear Console Box
58933	58933-58020	Garnish, Console Rear End Panel
58934	58934-58010	Garnish, Console Rear End Panel, No.2
58959	58959-60060	Cushion, Instrument Panel
9010508158	90105-08158	Plug(For Fuel Sub-Tank)
9046705171	90467-05171	Clip, Instrument Panel
9046707215	90467-07215	Clip
9046710203	90467-10203	Direct
9167380616	91673-80616	Bolt, W/washer

OEM	Part name	Category
55412-58210-A1	Panel, Instrument Panel Finish, End Rh	Console Box & Bracket ([01.2015 - ] (1501- )GGH30..ALPHD ; (1501- )AGH30,AYH30 ..L,Q)
55413-58050-A1	Panel, Instrument Panel Finish, End Lh	Console Box & Bracket ([01.2015 - ] (1501- )GGH30..ALPHD ; (1501- )AGH30,AYH30 ..L,Q)
55430-58020	Damper Assy, Instrument Cluster Finish Panel	Console Box & Bracket ([01.2015 - ] (1501- )GGH30..ALPHD ; (1501- )AGH30,AYH30 ..L,Q)
55539-58070-C0	Cover, Spare Switch Hole	Console Box & Bracket ([01.2015 - ] (1501- )GGH30..ALPHD ; (1501- )AGH30,AYH30 ..L,Q)
55539-58080-C0	Cover, Spare Switch Hole	Console Box & Bracket ([01.2015 - ] (1501- )GGH30..ALPHD ; (1501- )AGH30,AYH30 ..L,Q)
55539-58100-C0	Cover, Spare Switch Hole	Console Box & Bracket ([01.2015 - ] (1501- )GGH30..ALPHD ; (1501- )AGH30,AYH30 ..L,Q)
55539-58120-C0	Cover, Spare Switch Hole	Console Box & Bracket ([01.2015 - ] (1501- )GGH30..ALPHD ; (1501- )AGH30,AYH30 ..L,Q)
58533-58070-C0	Cover, Floor Carpet, Center Rh	Console Box & Bracket ([01.2015 - ] (1501- )GGH30..ALPHD ; (1501- )AGH30,AYH30 ..L,Q)
58534-58070-C0	Cover, Floor Carpet, Center Lh	Console Box & Bracket ([01.2015 - ] (1501- )GGH30..ALPHD ; (1501- )AGH30,AYH30 ..L,Q)
58803-58160	Box Sub-Assy, Console Cup Holder	Console Box & Bracket ([01.2015 - ] (1501- )GGH30..ALPHD ; (1501- )AGH30,AYH30 ..L,Q)
58804-58170	Panel Sub-Assy, Console, Upper	Console Box & Bracket ([01.2015 - ] (1501- )GGH30..ALPHD ; (1501- )AGH30,AYH30 ..L,Q)
58806-58020	Pocket Sub-Assy, Console Box	Console Box & Bracket ([01.2015 - ] (1501- )GGH30..ALPHD ; (1501- )AGH30,AYH30 ..L,Q)
58810-58310-C2	Box Assy, Console	Console Box & Bracket ([01.2015 - ] (1501- )GGH30..ALPHD ; (1501- )AGH30,AYH30 ..L,Q)
58810-58311-C2	Box Assy, Console	Console Box & Bracket ([01.2015 - ] (1501- )GGH30..ALPHD ; (1501- )AGH30,AYH30 ..L,Q)
58815-58040	Carpet, Console Box	Console Box & Bracket ([01.2015 - ] (1501- )GGH30..ALPHD ; (1501- )AGH30,AYH30 ..L,Q)
58817-58020	Insert, Console Box, Front No.2	Console Box & Bracket ([01.2015 - ] (1501- )GGH30..ALPHD ; (1501- )AGH30,AYH30 ..L,Q)
58821-58170	Panel, Console, Upper	Console Box & Bracket ([01.2015 - ] (1501- )GGH30..ALPHD ; (1501- )AGH30,AYH30 ..L,Q)
58833-58150-A0	Garnish, Console Upper Panel, No.1	Console Box & Bracket ([01.2015 - ] (1501- )GGH30..ALPHD ; (1501- )AGH30,AYH30 ..L,Q)
58834-58120-A0	Garnish, Console Upper Panel, No.2	Console Box & Bracket ([01.2015 - ] (1501- )GGH30..ALPHD ; (1501- )AGH30,AYH30 ..L,Q)
58839-58040	Cover, Console Box Hole	Console Box & Bracket ([01.2015 - ] (1501- )GGH30..ALPHD ; (1501- )AGH30,AYH30 ..L,Q)
58885-58010	Panel, Equipment Set	Console Box & Bracket ([01.2015 - ] (1501- )GGH30..ALPHD ; (1501- )AGH30,AYH30 ..L,Q)
58890-58020-C0	Box Assy, Trash	Console Box & Bracket ([01.2015 - ] (1501- )GGH30..ALPHD ; (1501- )AGH30,AYH30 ..L,Q)
58902-58060	Bracket Sub-Assy, Console Box Mounting	Console Box & Bracket ([01.2015 - ] (1501- )GGH30..ALPHD ; (1501- )AGH30,AYH30 ..L,Q)
58903-58340-C0	Panel Sub-Assy, Console Rear End	Console Box & Bracket ([01.2015 - ] (1501- )GGH30..ALPHD ; (1501- )AGH30,AYH30 ..L,Q)
58903-58341-C0	Panel Sub-Assy, Console Rear End	Console Box & Bracket ([01.2015 - ] (1501- )GGH30..ALPHD ; (1501- )AGH30,AYH30 ..L,Q)
58911-58070-C0	Panel, Box, No.1	Console Box & Bracket ([01.2015 - ] (1501- )GGH30..ALPHD ; (1501- )AGH30,AYH30 ..L,Q)
58912-58060-C0	Panel, Box, No.2	Console Box & Bracket ([01.2015 - ] (1501- )GGH30..ALPHD ; (1501- )AGH30,AYH30 ..L,Q)
58916-58050	Mat, Box Bottom	Console Box & Bracket ([01.2015 - ] (1501- )GGH30..ALPHD ; (1501- )AGH30,AYH30 ..L,Q)
58917-58040	Mat, Box Bottom, No.2	Console Box & Bracket ([01.2015 - ] (1501- )GGH30..ALPHD ; (1501- )AGH30,AYH30 ..L,Q)
58920-58020-A2	Armrest Assy, Rear Console	Console Box & Bracket ([01.2015 - ] (1501- )GGH30..ALPHD ; (1501- )AGH30,AYH30 ..L,Q)
58932-58010-C0	Garnish, Rear Console Box	Console Box & Bracket ([01.2015 - ] (1501- )GGH30..ALPHD ; (1501- )AGH30,AYH30 ..L,Q)
58932-58011-C0	Garnish, Rear Console Box	Console Box & Bracket ([01.2015 - ] (1501- )GGH30..ALPHD ; (1501- )AGH30,AYH30 ..L,Q)
58933-58020	Garnish, Console Rear End Panel	Console Box & Bracket ([01.2015 - ] (1501- )GGH30..ALPHD ; (1501- )AGH30,AYH30 ..L,Q)
58934-58010	Garnish, Console Rear End Panel, No.2	Console Box & Bracket ([01.2015 - ] (1501- )GGH30..ALPHD ; (1501- )AGH30,AYH30 ..L,Q)
58959-60060	Cushion, Instrument Panel	Console Box & Bracket ([01.2015 - ] (1501- )GGH30..ALPHD ; (1501- )AGH30,AYH30 ..L,Q)
90105-08158	Plug(For Fuel Sub-Tank)	Console Box & Bracket ([01.2015 - ] (1501- )GGH30..ALPHD ; (1501- )AGH30,AYH30 ..L,Q)
90467-05171	Clip, Instrument Panel	Console Box & Bracket ([01.2015 - ] (1501- )GGH30..ALPHD ; (1501- )AGH30,AYH30 ..L,Q)
90467-07215	Clip	Console Box & Bracket ([01.2015 - ] (1501- )GGH30..ALPHD ; (1501- )AGH30,AYH30 ..L,Q)
90467-10203	Direct	Console Box & Bracket ([01.2015 - ] (1501- )GGH30..ALPHD ; (1501- )AGH30,AYH30 ..L,Q)
91673-80616	Bolt, W/washer	Console Box & Bracket ([01.2015 - ] (1501- )GGH30..ALPHD ; (1501- )AGH30,AYH30 ..L,Q)
