Search › Model › AYH30

AYH30

Toyota ALPHARD-VELLFIRE · 2015 · 4,129 parts · 321 categories

4,129 items

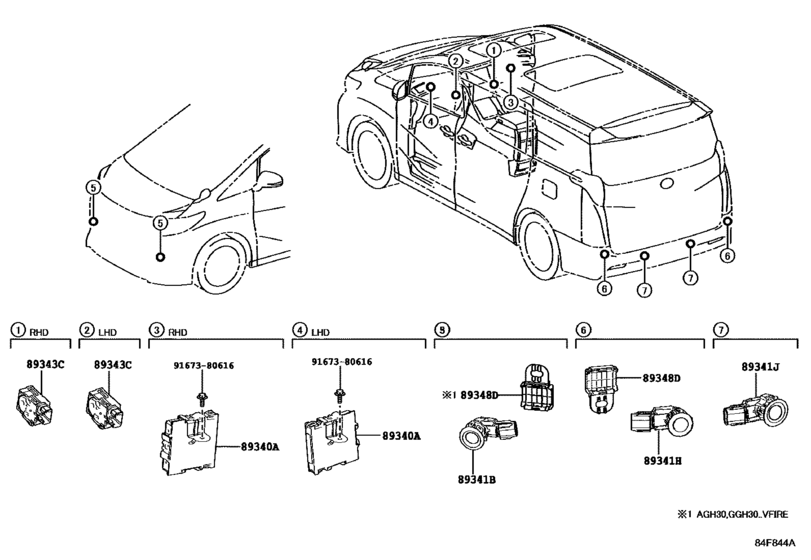

Clearance & Back Sonar ([01.2015 - ] (1501- )) 20

#	OEM	Part name
89340	89340-58050	Computer Assy, Clearance Warning
89341	89341-58080-A0	Sensor, Ultrasonic, No.2
89341	89341-58080-A1	Sensor, Ultrasonic, No.2
89341	89341-58080-B0	Sensor, Ultrasonic, No.2
89341	89341-58080-C0	Sensor, Ultrasonic, No.2
89341	89341-58081-A0	Sensor, Ultrasonic, No.2
89341	89341-58081-A1	Sensor, Ultrasonic, No.2
89341	89341-58081-B0	Sensor, Ultrasonic, No.2
89341	89341-58081-C0	Sensor, Ultrasonic, No.2
89341	89341-58050-A0	Sensor, Ultrasonic, No.5
89341	89341-58051-A0	Sensor, Ultrasonic, No.5
89341	89341-58050-A1	Sensor, Ultrasonic, No.5
89341	89341-58050-B0	Sensor, Ultrasonic, No.5
89341	89341-58050-C0	Sensor, Ultrasonic, No.5
89341	89341-58051-A1	Sensor, Ultrasonic, No.5
89341	89341-58051-B0	Sensor, Ultrasonic, No.5
89341	89341-58051-C0	Sensor, Ultrasonic, No.5
89343	89343-48010	Buzzer, Clearance Warning, No.1
89348	89348-12020	Clip, Ultrasonic Sensor
9167380616	91673-80616	Bolt, W/washer

OEM	Part name	Category
89340-58050	Computer Assy, Clearance Warning	Clearance & Back Sonar ([01.2015 - ] (1501- ))
89341-58050-A0	Sensor, Ultrasonic, No.5	Clearance & Back Sonar ([01.2015 - ] (1501- ))
89341-58050-A1	Sensor, Ultrasonic, No.5	Clearance & Back Sonar ([01.2015 - ] (1501- ))
89341-58050-B0	Sensor, Ultrasonic, No.5	Clearance & Back Sonar ([01.2015 - ] (1501- ))
89341-58050-C0	Sensor, Ultrasonic, No.5	Clearance & Back Sonar ([01.2015 - ] (1501- ))
89341-58051-A0	Sensor, Ultrasonic, No.5	Clearance & Back Sonar ([01.2015 - ] (1501- ))
89341-58051-A1	Sensor, Ultrasonic, No.5	Clearance & Back Sonar ([01.2015 - ] (1501- ))
89341-58051-B0	Sensor, Ultrasonic, No.5	Clearance & Back Sonar ([01.2015 - ] (1501- ))
89341-58051-C0	Sensor, Ultrasonic, No.5	Clearance & Back Sonar ([01.2015 - ] (1501- ))
89341-58080-A0	Sensor, Ultrasonic, No.2	Clearance & Back Sonar ([01.2015 - ] (1501- ))
89341-58080-A1	Sensor, Ultrasonic, No.2	Clearance & Back Sonar ([01.2015 - ] (1501- ))
89341-58080-B0	Sensor, Ultrasonic, No.2	Clearance & Back Sonar ([01.2015 - ] (1501- ))
89341-58080-C0	Sensor, Ultrasonic, No.2	Clearance & Back Sonar ([01.2015 - ] (1501- ))
89341-58081-A0	Sensor, Ultrasonic, No.2	Clearance & Back Sonar ([01.2015 - ] (1501- ))
89341-58081-A1	Sensor, Ultrasonic, No.2	Clearance & Back Sonar ([01.2015 - ] (1501- ))
89341-58081-B0	Sensor, Ultrasonic, No.2	Clearance & Back Sonar ([01.2015 - ] (1501- ))
89341-58081-C0	Sensor, Ultrasonic, No.2	Clearance & Back Sonar ([01.2015 - ] (1501- ))
89343-48010	Buzzer, Clearance Warning, No.1	Clearance & Back Sonar ([01.2015 - ] (1501- ))
89348-12020	Clip, Ultrasonic Sensor	Clearance & Back Sonar ([01.2015 - ] (1501- ))
91673-80616	Bolt, W/washer	Clearance & Back Sonar ([01.2015 - ] (1501- ))

Source: Public OEM parts-catalog data
Variants: 2 / 11
Category: 321
Collected: 2026-08-02
