Search › Model › AYH30
AYH30

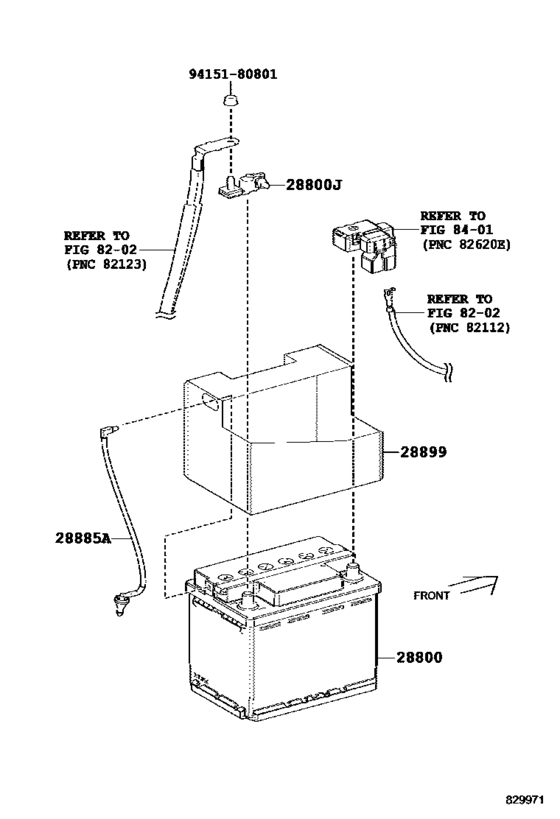

Battery & Battery Cable ([01.2015 - ] 12V BATTERY (1501- )AYH30) 5
| # | OEM | Part name |
|---|---|---|
| 28800 | 28800-37120 | Battery |
| 28800 | 90982-06070 | Terminal, Battery Negative |
| 28885 | 28885-36070 | Hose, Battery Room Ventilation |
| 28899 | 28877-36010 | Insulator, Battery |
| 9415180801 | 94151-80801 | NUT FLANGE |
| OEM | Part name | Category |
|---|---|---|
| 28800-37120 | Battery | Battery & Battery Cable ([01.2015 - ] 12V BATTERY (1501- )AYH30) |
| 28877-36010 | Insulator, Battery | Battery & Battery Cable ([01.2015 - ] 12V BATTERY (1501- )AYH30) |
| 28885-36070 | Hose, Battery Room Ventilation | Battery & Battery Cable ([01.2015 - ] 12V BATTERY (1501- )AYH30) |
| 90982-06070 | Terminal, Battery Negative | Battery & Battery Cable ([01.2015 - ] 12V BATTERY (1501- )AYH30) |
| 94151-80801 | NUT FLANGE | Battery & Battery Cable ([01.2015 - ] 12V BATTERY (1501- )AYH30) |
