Search › Model › AXVA70
AXVA70

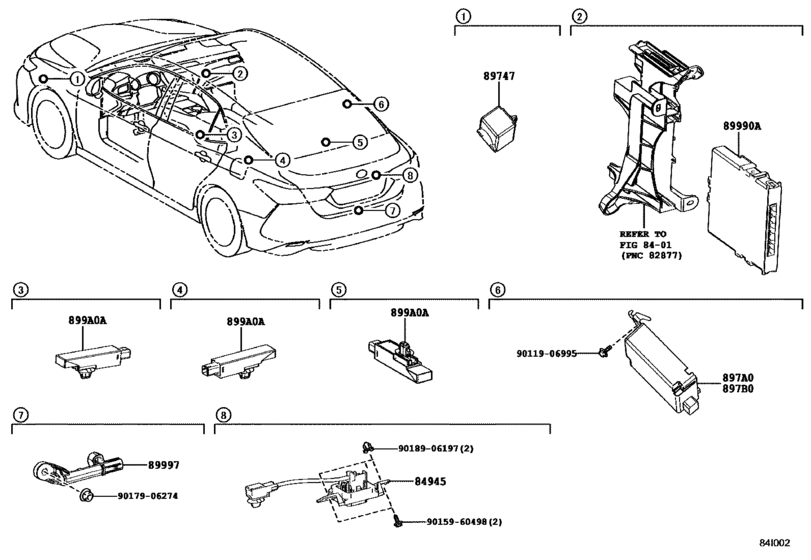

Wireless Door Lock ([03.2017 - ] (1703- )) 8
| # | OEM | Part name |
|---|---|---|
| 84945 | 84945-33040 | Switch, Luggage Electrical Key |
| 89747 | 89747-30040 | Buzzer, Wireless Door Lock |
| 89990 | 89990-33400 | Computer Assy, Smart Key |
| 89997 | 89997-30100 | Antenna, Electrical Key |
| 9011906995 | 90119-06995 | BOLT WWASHER |
| 9015960498 | 90159-60498 | SCREW W-WASHER |
| 9017906274 | 90179-06274 | Nut |
| 9018906197 | 90189-06197 | GROMMET SCREW |
| OEM | Part name | Category |
|---|---|---|
| 84945-33040 | Switch, Luggage Electrical Key | Wireless Door Lock ([03.2017 - ] (1703- )) |
| 89747-30040 | Buzzer, Wireless Door Lock | Wireless Door Lock ([03.2017 - ] (1703- )) |
| 89990-33400 | Computer Assy, Smart Key | Wireless Door Lock ([03.2017 - ] (1703- )) |
| 89997-30100 | Antenna, Electrical Key | Wireless Door Lock ([03.2017 - ] (1703- )) |
| 90119-06995 | BOLT WWASHER | Wireless Door Lock ([03.2017 - ] (1703- )) |
| 90159-60498 | SCREW W-WASHER | Wireless Door Lock ([03.2017 - ] (1703- )) |
| 90179-06274 | Nut | Wireless Door Lock ([03.2017 - ] (1703- )) |
| 90189-06197 | GROMMET SCREW | Wireless Door Lock ([03.2017 - ] (1703- )) |
