Search › Model › AXVA70
AXVA70

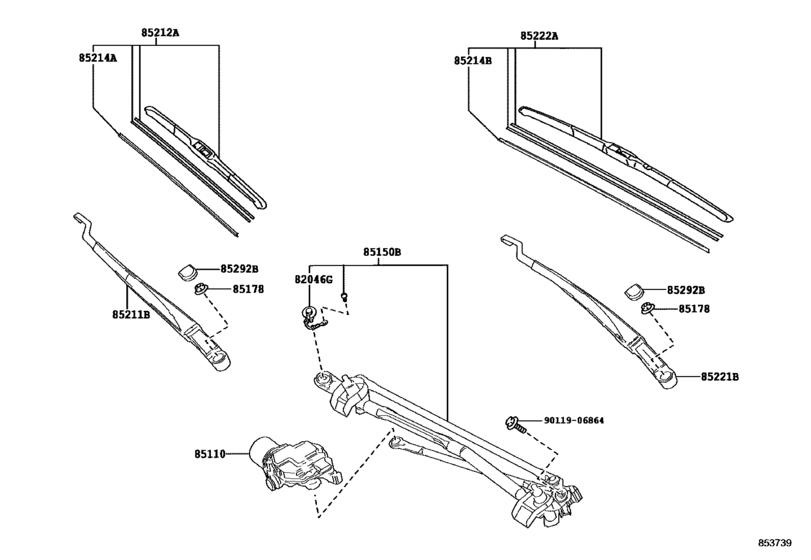

Windshield Wiper ([03.2017 - ] (1703- )) 12
| # | OEM | Part name |
|---|---|---|
| 82046 | 82046-33060 | Wire Sub-Assy, Body Ground |
| 85110 | 85110-33430 | Motor Assy, Windshield Wiper |
| 85150 | 85150-33280 | Link Assy, Wiper |
| 85178 | 90182-10006 | Nut (For Front Wiper Arm Setting) |
| 85211 | 85211-33440 | Arm, Front Wiper, Rh |
| 85212 | 85212-33340 | Blade, Fr Wiper, Rh |
| 85214 | 85214-60120 | Rubber, Wiper, Lh |
| 85214 | 85214-52110 | Rubber, Wiper, Rh |
| 85221 | 85221-33430 | Arm, Front Wiper, Lh |
| 85222 | 85222-33340 | Blade, Fr Wiper, Lh |
| 85292 | 85292-13010 | Cover, Windshield Wiper Arm |
| 9011906864 | 90119-06864 | BOLT W-WASHER |
| OEM | Part name | Category |
|---|---|---|
| 82046-33060 | Wire Sub-Assy, Body Ground | Windshield Wiper ([03.2017 - ] (1703- )) |
| 85110-33430 | Motor Assy, Windshield Wiper | Windshield Wiper ([03.2017 - ] (1703- )) |
| 85150-33280 | Link Assy, Wiper | Windshield Wiper ([03.2017 - ] (1703- )) |
| 85211-33440 | Arm, Front Wiper, Rh | Windshield Wiper ([03.2017 - ] (1703- )) |
| 85212-33340 | Blade, Fr Wiper, Rh | Windshield Wiper ([03.2017 - ] (1703- )) |
| 85214-52110 | Rubber, Wiper, Rh | Windshield Wiper ([03.2017 - ] (1703- )) |
| 85214-60120 | Rubber, Wiper, Lh | Windshield Wiper ([03.2017 - ] (1703- )) |
| 85221-33430 | Arm, Front Wiper, Lh | Windshield Wiper ([03.2017 - ] (1703- )) |
| 85222-33340 | Blade, Fr Wiper, Lh | Windshield Wiper ([03.2017 - ] (1703- )) |
| 85292-13010 | Cover, Windshield Wiper Arm | Windshield Wiper ([03.2017 - ] (1703- )) |
| 90119-06864 | BOLT W-WASHER | Windshield Wiper ([03.2017 - ] (1703- )) |
| 90182-10006 | Nut (For Front Wiper Arm Setting) | Windshield Wiper ([03.2017 - ] (1703- )) |
