AXVA70

Toyota CAMRY-VISTA-AURION · 2017 · 2,985 parts · 169 categories

2,985 items

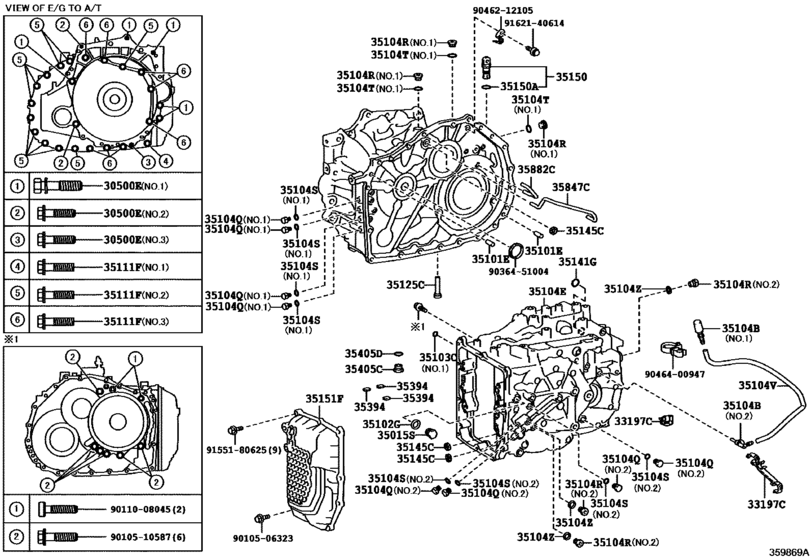

Transmission Case & Oil Pan (Atm) ([03.2017 - ] UB80E (1703- )) 37

#	OEM	Part name
30500	91552-81045	Bolt, No.1(For Alternator)
30500	91552-81250	Bolt(For Transaxle & Engine Setting)
30500	91553-80830	Bolt(For Transaxle & Engine Setting)
33197	33197-33020	Clamp, Transmission Breather
35015	90341-18064	Plug, Straight(For Transmission Case Adapter)
35101	90250-10017	Pin, Straight(For Clutch Housing Set)
35101	90250-10021	Pin, Straight (For Transaxle Case)
35102	90430-18008	Gasket
35102	90430-T0021	Gasket(For Manual Transmission Filler Plug)
35103	90301-06021	Ring, O (For Breather Plug)
35104	90930-03216	Plug, Breather, No.1(Cvt)
35104	90930-03230	Plug, Breather, No.1 (Atm)
35104	35104-33130	Case Sub-Assy, Automatic Transaxle
35104	35104-33140	Case Sub-Assy, Automatic Transaxle
35104	90341-08001	Plug, Transaxle Case, No.1
35104	90341-14015	Plug, W/head Straight Screw, No.1
35104	90301-06196	O Ring, Transaxle Case, No.1
35104	90430-14008	Gasket(For Water Hole)
35104	35121-33070	Hose (For Breather Plug)
35111	90105-08496	Bolt (For Transaxle Housing & Transaxle Case Setting)
35111	91551-00835	Bolt (For Transaxle Housing & Transaxle Case Setting)
35111	91551-00840	Bolt (For Transaxle Housing & Transaxle Case Setting)
35125	35125-33110	Tube, Transmission Oil Filler, No.1
35141	90301-10018	Ring, O(For Oil Cooler Tube Union)
35145	35145-33010	Gasket, Transaxle Case
35150	35150-44010	Plug(For Transmission Case)
35150	90301-09173	Ring, O(For Transmission Oil Filler Tube)
35151	35151-33160	Cover, Transmission Case, Side
35394	35394-48010	Magnet, Oil Cleaner (For Transmission)
35405	90341-18016	Plug, W/head Straight Screw(For Transaxle Housing & Case)
35847	35847-48020	Tube, Transmission Lube Apply
35847	35847-48030	Tube, Transmission Lube Apply
35882	35882-48020	Tube, Differential Gear Lube Apply
35882	35882-48030	Tube, Differential Gear Lube Apply
9010506323	90105-06323	BOLT FLANGE
9155180625	91551-80625	Bolt(For Camshaft Housing Set)
9162140614	91621-40614	BOLT

OEM	Part name	Category
33197-33020	Clamp, Transmission Breather	Transmission Case & Oil Pan (Atm) ([03.2017 - ] UB80E (1703- ))
35104-33130	Case Sub-Assy, Automatic Transaxle	Transmission Case & Oil Pan (Atm) ([03.2017 - ] UB80E (1703- ))
35104-33140	Case Sub-Assy, Automatic Transaxle	Transmission Case & Oil Pan (Atm) ([03.2017 - ] UB80E (1703- ))
35121-33070	Hose (For Breather Plug)	Transmission Case & Oil Pan (Atm) ([03.2017 - ] UB80E (1703- ))
35125-33110	Tube, Transmission Oil Filler, No.1	Transmission Case & Oil Pan (Atm) ([03.2017 - ] UB80E (1703- ))
35145-33010	Gasket, Transaxle Case	Transmission Case & Oil Pan (Atm) ([03.2017 - ] UB80E (1703- ))
35150-44010	Plug(For Transmission Case)	Transmission Case & Oil Pan (Atm) ([03.2017 - ] UB80E (1703- ))
35151-33160	Cover, Transmission Case, Side	Transmission Case & Oil Pan (Atm) ([03.2017 - ] UB80E (1703- ))
35394-48010	Magnet, Oil Cleaner (For Transmission)	Transmission Case & Oil Pan (Atm) ([03.2017 - ] UB80E (1703- ))
35847-48020	Tube, Transmission Lube Apply	Transmission Case & Oil Pan (Atm) ([03.2017 - ] UB80E (1703- ))
35847-48030	Tube, Transmission Lube Apply	Transmission Case & Oil Pan (Atm) ([03.2017 - ] UB80E (1703- ))
35882-48020	Tube, Differential Gear Lube Apply	Transmission Case & Oil Pan (Atm) ([03.2017 - ] UB80E (1703- ))
35882-48030	Tube, Differential Gear Lube Apply	Transmission Case & Oil Pan (Atm) ([03.2017 - ] UB80E (1703- ))
90105-06323	BOLT FLANGE	Transmission Case & Oil Pan (Atm) ([03.2017 - ] UB80E (1703- ))
90105-08496	Bolt (For Transaxle Housing & Transaxle Case Setting)	Transmission Case & Oil Pan (Atm) ([03.2017 - ] UB80E (1703- ))
90250-10017	Pin, Straight(For Clutch Housing Set)	Transmission Case & Oil Pan (Atm) ([03.2017 - ] UB80E (1703- ))
90250-10021	Pin, Straight (For Transaxle Case)	Transmission Case & Oil Pan (Atm) ([03.2017 - ] UB80E (1703- ))
90301-06021	Ring, O (For Breather Plug)	Transmission Case & Oil Pan (Atm) ([03.2017 - ] UB80E (1703- ))
90301-06196	O Ring, Transaxle Case, No.1	Transmission Case & Oil Pan (Atm) ([03.2017 - ] UB80E (1703- ))
90301-09173	Ring, O(For Transmission Oil Filler Tube)	Transmission Case & Oil Pan (Atm) ([03.2017 - ] UB80E (1703- ))
90301-10018	Ring, O(For Oil Cooler Tube Union)	Transmission Case & Oil Pan (Atm) ([03.2017 - ] UB80E (1703- ))
90341-08001	Plug, Transaxle Case, No.1	Transmission Case & Oil Pan (Atm) ([03.2017 - ] UB80E (1703- ))
90341-14015	Plug, W/head Straight Screw, No.1	Transmission Case & Oil Pan (Atm) ([03.2017 - ] UB80E (1703- ))
90341-18016	Plug, W/head Straight Screw(For Transaxle Housing & Case)	Transmission Case & Oil Pan (Atm) ([03.2017 - ] UB80E (1703- ))
90341-18064	Plug, Straight(For Transmission Case Adapter)	Transmission Case & Oil Pan (Atm) ([03.2017 - ] UB80E (1703- ))
90430-14008	Gasket(For Water Hole)	Transmission Case & Oil Pan (Atm) ([03.2017 - ] UB80E (1703- ))
90430-18008	Gasket	Transmission Case & Oil Pan (Atm) ([03.2017 - ] UB80E (1703- ))
90430-T0021	Gasket(For Manual Transmission Filler Plug)	Transmission Case & Oil Pan (Atm) ([03.2017 - ] UB80E (1703- ))
90930-03216	Plug, Breather, No.1(Cvt)	Transmission Case & Oil Pan (Atm) ([03.2017 - ] UB80E (1703- ))
90930-03230	Plug, Breather, No.1 (Atm)	Transmission Case & Oil Pan (Atm) ([03.2017 - ] UB80E (1703- ))
91551-00835	Bolt (For Transaxle Housing & Transaxle Case Setting)	Transmission Case & Oil Pan (Atm) ([03.2017 - ] UB80E (1703- ))
91551-00840	Bolt (For Transaxle Housing & Transaxle Case Setting)	Transmission Case & Oil Pan (Atm) ([03.2017 - ] UB80E (1703- ))
91551-80625	Bolt(For Camshaft Housing Set)	Transmission Case & Oil Pan (Atm) ([03.2017 - ] UB80E (1703- ))
91552-81045	Bolt, No.1(For Alternator)	Transmission Case & Oil Pan (Atm) ([03.2017 - ] UB80E (1703- ))
91552-81250	Bolt(For Transaxle & Engine Setting)	Transmission Case & Oil Pan (Atm) ([03.2017 - ] UB80E (1703- ))
91553-80830	Bolt(For Transaxle & Engine Setting)	Transmission Case & Oil Pan (Atm) ([03.2017 - ] UB80E (1703- ))
91621-40614	BOLT	Transmission Case & Oil Pan (Atm) ([03.2017 - ] UB80E (1703- ))
