Search › Model › AXVA70

AXVA70

Toyota CAMRY-VISTA-AURION · 2017 · 2,985 parts · 169 categories

2,985 items

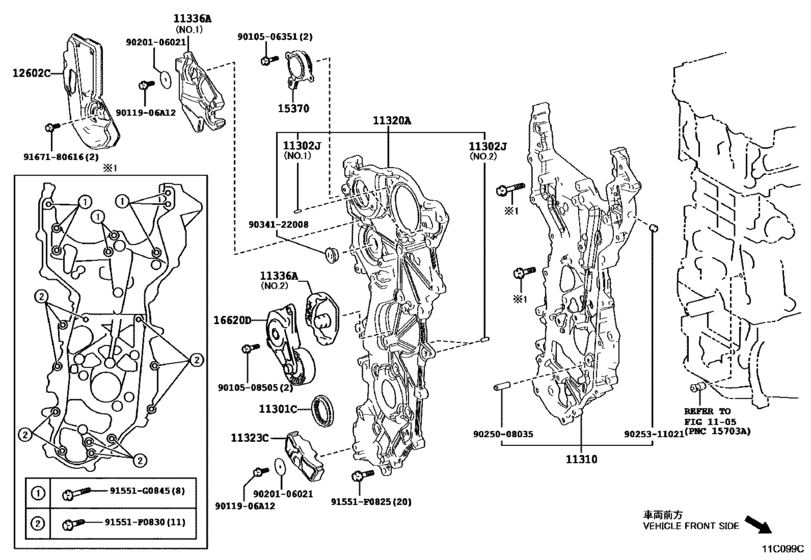

Timing Gear Cover & Rear End Plate ([03.2017 - ] (1703- )) 23

#	OEM	Part name
11301	90311-40044	Seal, Oil(For Timing Gear Case Or Timing Chain Case)
11302	90250-04097	Pin, Straight(For Camshaft Housing Rh)
11302	90250-06003	Pin, Straight
11310	11310-25030	Cover Assy, Timing Chain
11320	11320-25010	Cover Assy, Timing Gear, No.2
11323	11323-25010	Cover, Timing Chain, No.3
11336	11336-25010	Insulator, Timing Gear Cover
11336	11339-25010	Insulator, Timing Gear Cover
12602	12612-25010	Cover, Engine, No.2
15370	15370-25020	Solenoid Assy, Cam Timing Oil Control
16620	16620-25010	Tensioner Assy, V-Ribbed Belt
16620	16620-25011	Tensioner Assy
91551	91551-F0825	BOLT FLANGE
91551	91551-F0830	BOLT FLANGE
91551	91551-G0845	Bolt(For Camshaft Housing Set)
9011906	90119-06A12	New Genuine Part
9010506351	90105-06351	New Genuine Part
9010508505	90105-08505	New Genuine Part
9020106021	90201-06021	New Genuine Part
9025008035	90250-08035	New Genuine Part
9025311021	90253-11021	Pin, Ring
9034122008	90341-22008	Plug, W/head Straight Screw, No.1
9167180616	91671-80616	BOLT FLANGE

OEM	Part name	Category
11310-25030	Cover Assy, Timing Chain	Timing Gear Cover & Rear End Plate ([03.2017 - ] (1703- ))
11320-25010	Cover Assy, Timing Gear, No.2	Timing Gear Cover & Rear End Plate ([03.2017 - ] (1703- ))
11323-25010	Cover, Timing Chain, No.3	Timing Gear Cover & Rear End Plate ([03.2017 - ] (1703- ))
11336-25010	Insulator, Timing Gear Cover	Timing Gear Cover & Rear End Plate ([03.2017 - ] (1703- ))
11339-25010	Insulator, Timing Gear Cover	Timing Gear Cover & Rear End Plate ([03.2017 - ] (1703- ))
12612-25010	Cover, Engine, No.2	Timing Gear Cover & Rear End Plate ([03.2017 - ] (1703- ))
15370-25020	Solenoid Assy, Cam Timing Oil Control	Timing Gear Cover & Rear End Plate ([03.2017 - ] (1703- ))
16620-25010	Tensioner Assy, V-Ribbed Belt	Timing Gear Cover & Rear End Plate ([03.2017 - ] (1703- ))
16620-25011	Tensioner Assy	Timing Gear Cover & Rear End Plate ([03.2017 - ] (1703- ))
90105-06351	New Genuine Part	Timing Gear Cover & Rear End Plate ([03.2017 - ] (1703- ))
90105-08505	New Genuine Part	Timing Gear Cover & Rear End Plate ([03.2017 - ] (1703- ))
90119-06A12	New Genuine Part	Timing Gear Cover & Rear End Plate ([03.2017 - ] (1703- ))
90201-06021	New Genuine Part	Timing Gear Cover & Rear End Plate ([03.2017 - ] (1703- ))
90250-04097	Pin, Straight(For Camshaft Housing Rh)	Timing Gear Cover & Rear End Plate ([03.2017 - ] (1703- ))
90250-06003	Pin, Straight	Timing Gear Cover & Rear End Plate ([03.2017 - ] (1703- ))
90250-08035	New Genuine Part	Timing Gear Cover & Rear End Plate ([03.2017 - ] (1703- ))
90253-11021	Pin, Ring	Timing Gear Cover & Rear End Plate ([03.2017 - ] (1703- ))
90311-40044	Seal, Oil(For Timing Gear Case Or Timing Chain Case)	Timing Gear Cover & Rear End Plate ([03.2017 - ] (1703- ))
90341-22008	Plug, W/head Straight Screw, No.1	Timing Gear Cover & Rear End Plate ([03.2017 - ] (1703- ))
91551-F0825	BOLT FLANGE	Timing Gear Cover & Rear End Plate ([03.2017 - ] (1703- ))
91551-F0830	BOLT FLANGE	Timing Gear Cover & Rear End Plate ([03.2017 - ] (1703- ))
91551-G0845	Bolt(For Camshaft Housing Set)	Timing Gear Cover & Rear End Plate ([03.2017 - ] (1703- ))
91671-80616	BOLT FLANGE	Timing Gear Cover & Rear End Plate ([03.2017 - ] (1703- ))
