Search › Model › AXVA70
AXVA70

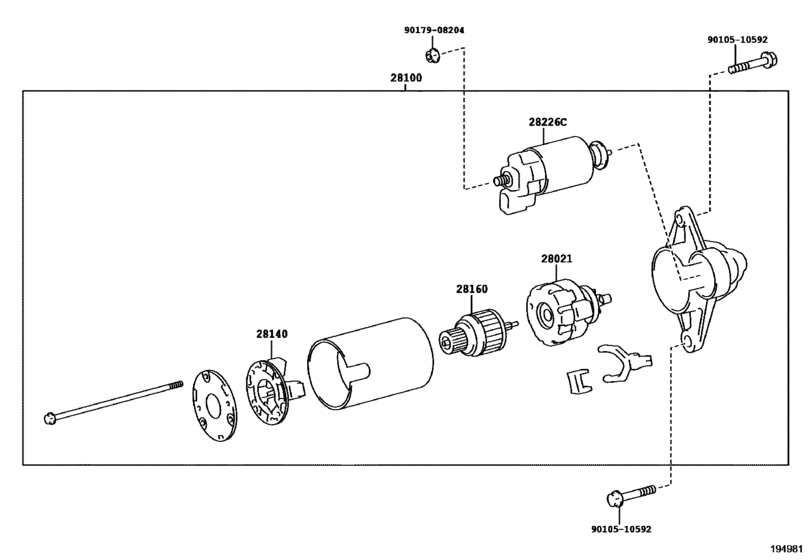

Starter ([03.2017 - ] 12V 1.3KW (1703- )) 8
| # | OEM | Part name |
|---|---|---|
| 28021 | 28021-25050 | Clutch Sub-Assy, Starter Center Bearing |
| 28100 | 28100-25050 | Starter Assy |
| 28140 | 28140-25050 | Holder Assy, Starter Brush |
| 28160 | 28160-21080 | Armature Assy, Starter |
| 28226 | 28226-25050 | Starter Kit, Repair Service, No.2 |
| 9010510592 | 90105-10592 | New Genuine Part |
| 9017908204 | 90179-08204 | Nut |
| 9017908204 | 90080-18070 | NUT, WWASHER |
| OEM | Part name | Category |
|---|---|---|
| 28021-25050 | Clutch Sub-Assy, Starter Center Bearing | Starter ([03.2017 - ] 12V 1.3KW (1703- )) |
| 28100-25050 | Starter Assy | Starter ([03.2017 - ] 12V 1.3KW (1703- )) |
| 28140-25050 | Holder Assy, Starter Brush | Starter ([03.2017 - ] 12V 1.3KW (1703- )) |
| 28160-21080 | Armature Assy, Starter | Starter ([03.2017 - ] 12V 1.3KW (1703- )) |
| 28226-25050 | Starter Kit, Repair Service, No.2 | Starter ([03.2017 - ] 12V 1.3KW (1703- )) |
| 90080-18070 | NUT, WWASHER | Starter ([03.2017 - ] 12V 1.3KW (1703- )) |
| 90105-10592 | New Genuine Part | Starter ([03.2017 - ] 12V 1.3KW (1703- )) |
| 90179-08204 | Nut | Starter ([03.2017 - ] 12V 1.3KW (1703- )) |
