Search › Model › AXVA70
AXVA70

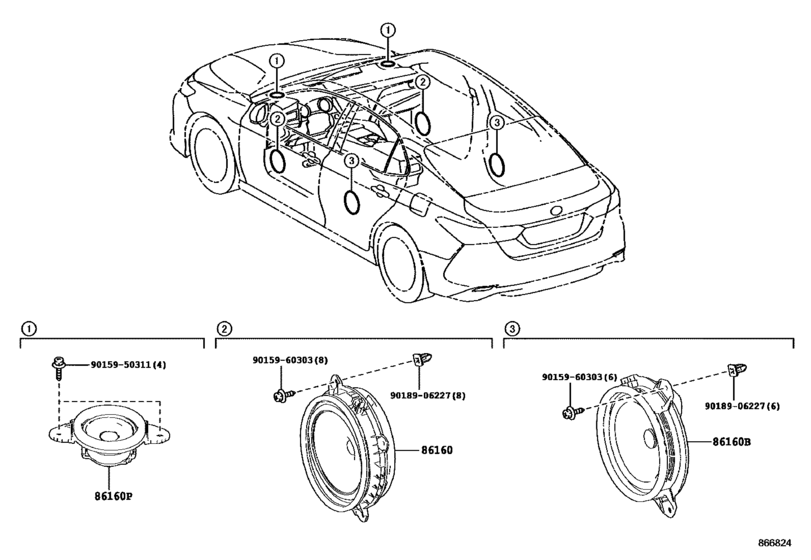

Speaker ([03.2017 - ] (1703- )) 7
| # | OEM | Part name |
|---|---|---|
| 86160 | 86160-33A20 | Speaker Assy, Front No.1 |
| 86160 | 86160-52331 | Speaker Assy, Front No.1 |
| 86160 | 86160-33760 | Speaker Set, Front |
| 9015950311 | 90159-50311 | SCREW |
| 9015950311 | 90159-A0034 | SCREW WWASHER |
| 9015960303 | 90159-60303 | SCREW |
| 9018906227 | 90189-06227 | GROMMET SCREW |
| OEM | Part name | Category |
|---|---|---|
| 86160-33760 | Speaker Set, Front | Speaker ([03.2017 - ] (1703- )) |
| 86160-33A20 | Speaker Assy, Front No.1 | Speaker ([03.2017 - ] (1703- )) |
| 86160-52331 | Speaker Assy, Front No.1 | Speaker ([03.2017 - ] (1703- )) |
| 90159-50311 | SCREW | Speaker ([03.2017 - ] (1703- )) |
| 90159-60303 | SCREW | Speaker ([03.2017 - ] (1703- )) |
| 90159-A0034 | SCREW WWASHER | Speaker ([03.2017 - ] (1703- )) |
| 90189-06227 | GROMMET SCREW | Speaker ([03.2017 - ] (1703- )) |
