AXVA70

Toyota CAMRY-VISTA-AURION · 2017 · 2,985 parts · 169 categories

2,985 items

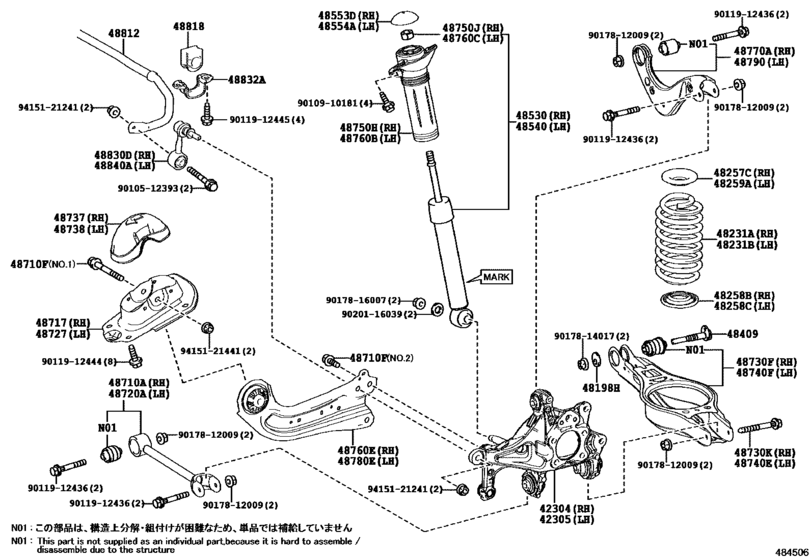

Rear Spring & Shock Absorber ([03.2017 - ] (1703- )) 46

#	OEM	Part name
42304	42304-33050	Carrier Sub-Assy, Rear Axle, Rh
42305	42305-33050	Carrier Sub-Assy, Rear Axle, Lh
48198	48198-47010	Cam, Camber Adjust, No.2
48231	48231-33720	Spring, Coil, Rear Rh
48231	48231-33710	Spring, Coil, Rear Rh
48257	48257-47020	Insulator, Rear Coil Spring, Upper Rh
48258	48258-47010	Insulator, Rear Coil Spring, Lower Rh
48409	48409-47011	Cam Sub-Assy, Rear Suspension Toe Adjust
48530	48530-80813	Absorber Assy, Shock, Rear Rh
48530	48530-80809	Absorber Assy, Shock, Rear Rh
48553	48553-47010	Cap, Rear Shock Absorber
48710	48710-33160	Arm Assy, Rear Suspension, No.1 Rh
48710	90105-14195	Bolt(For Rear Trailing Arm)
48710	90105-14197	Bolt(For Rear Trailing Arm)
48710	48710-33150	Arm Assy, Rear Suspension, No.1 Rh
48717	48717-47020	Bracket, Rear Suspension Arm, Rh
48727	48727-47020	Bracket, Rear Suspension Arm, Lh
48730	48730-33160	Arm Assy, Rear Suspension, No.2
48730	90119-12426	Bolt(For Rear Suspension Arm No.2 Rh)
48737	48753-47010	Cover, Rear Suspension Arm, Rh
48738	48753-47020	Cover, Rear Suspension Arm, Lh
48750	48750-33170	Support Assy, Rear Suspension, Rh
48750	94130-61200	Nut
48760	48760-33170	Arm Assy, Trailing, Rear Rh
48760	48760-33160	Arm Assy, Trailing, Rear Rh
48770	48770-33020	Arm Assy, Upper Control, Rear Rh
48780	48780-33090	Arm Assy, Trailing, Rear Lh
48780	48780-33080	Arm Assy, Trailing, Rear Lh
48790	48790-33020	Arm Assy, Upper Control, Rear Lh
48812	48812-33290	Bar, Stabilizer, Rear
48812	48812-33280	Bar, Stabilizer, Rear
48818	48818-33130	Bush, Stabilizer, Rear
48830	48830-47010	Link Assy, Rear Stabilizer, Rh
48832	48832-47010	Bracket, Rear Stabilizer Bar, No.1
9010512393	90105-12393	New Genuine Part
9010910181	90109-10181	Bolt
9011912436	90119-12436	BOLT WWASHER
9011912444	90119-12444	New Genuine Part
9011912445	90119-12445	New Genuine Part
9017812009	90178-12009	Nut(For Suspension Lower Arm Shaft)
9017814017	90178-14017	NUT FLANGE
9017816007	90178-16007	Nut
9017816007	90178-A0118	Nut
9020116039	90201-16039	New Genuine Part
9415121241	94151-21241	Nut(For Front Stabilizer Link)
9415121441	94151-21441	NUT FLANGE

OEM	Part name	Category
42304-33050	Carrier Sub-Assy, Rear Axle, Rh	Rear Spring & Shock Absorber ([03.2017 - ] (1703- ))
42305-33050	Carrier Sub-Assy, Rear Axle, Lh	Rear Spring & Shock Absorber ([03.2017 - ] (1703- ))
48198-47010	Cam, Camber Adjust, No.2	Rear Spring & Shock Absorber ([03.2017 - ] (1703- ))
48231-33710	Spring, Coil, Rear Rh	Rear Spring & Shock Absorber ([03.2017 - ] (1703- ))
48231-33720	Spring, Coil, Rear Rh	Rear Spring & Shock Absorber ([03.2017 - ] (1703- ))
48257-47020	Insulator, Rear Coil Spring, Upper Rh	Rear Spring & Shock Absorber ([03.2017 - ] (1703- ))
48258-47010	Insulator, Rear Coil Spring, Lower Rh	Rear Spring & Shock Absorber ([03.2017 - ] (1703- ))
48409-47011	Cam Sub-Assy, Rear Suspension Toe Adjust	Rear Spring & Shock Absorber ([03.2017 - ] (1703- ))
48530-80809	Absorber Assy, Shock, Rear Rh	Rear Spring & Shock Absorber ([03.2017 - ] (1703- ))
48530-80813	Absorber Assy, Shock, Rear Rh	Rear Spring & Shock Absorber ([03.2017 - ] (1703- ))
48553-47010	Cap, Rear Shock Absorber	Rear Spring & Shock Absorber ([03.2017 - ] (1703- ))
48710-33150	Arm Assy, Rear Suspension, No.1 Rh	Rear Spring & Shock Absorber ([03.2017 - ] (1703- ))
48710-33160	Arm Assy, Rear Suspension, No.1 Rh	Rear Spring & Shock Absorber ([03.2017 - ] (1703- ))
48717-47020	Bracket, Rear Suspension Arm, Rh	Rear Spring & Shock Absorber ([03.2017 - ] (1703- ))
48727-47020	Bracket, Rear Suspension Arm, Lh	Rear Spring & Shock Absorber ([03.2017 - ] (1703- ))
48730-33160	Arm Assy, Rear Suspension, No.2	Rear Spring & Shock Absorber ([03.2017 - ] (1703- ))
48750-33170	Support Assy, Rear Suspension, Rh	Rear Spring & Shock Absorber ([03.2017 - ] (1703- ))
48753-47010	Cover, Rear Suspension Arm, Rh	Rear Spring & Shock Absorber ([03.2017 - ] (1703- ))
48753-47020	Cover, Rear Suspension Arm, Lh	Rear Spring & Shock Absorber ([03.2017 - ] (1703- ))
48760-33160	Arm Assy, Trailing, Rear Rh	Rear Spring & Shock Absorber ([03.2017 - ] (1703- ))
48760-33170	Arm Assy, Trailing, Rear Rh	Rear Spring & Shock Absorber ([03.2017 - ] (1703- ))
48770-33020	Arm Assy, Upper Control, Rear Rh	Rear Spring & Shock Absorber ([03.2017 - ] (1703- ))
48780-33080	Arm Assy, Trailing, Rear Lh	Rear Spring & Shock Absorber ([03.2017 - ] (1703- ))
48780-33090	Arm Assy, Trailing, Rear Lh	Rear Spring & Shock Absorber ([03.2017 - ] (1703- ))
48790-33020	Arm Assy, Upper Control, Rear Lh	Rear Spring & Shock Absorber ([03.2017 - ] (1703- ))
48812-33280	Bar, Stabilizer, Rear	Rear Spring & Shock Absorber ([03.2017 - ] (1703- ))
48812-33290	Bar, Stabilizer, Rear	Rear Spring & Shock Absorber ([03.2017 - ] (1703- ))
48818-33130	Bush, Stabilizer, Rear	Rear Spring & Shock Absorber ([03.2017 - ] (1703- ))
48830-47010	Link Assy, Rear Stabilizer, Rh	Rear Spring & Shock Absorber ([03.2017 - ] (1703- ))
48832-47010	Bracket, Rear Stabilizer Bar, No.1	Rear Spring & Shock Absorber ([03.2017 - ] (1703- ))
90105-12393	New Genuine Part	Rear Spring & Shock Absorber ([03.2017 - ] (1703- ))
90105-14195	Bolt(For Rear Trailing Arm)	Rear Spring & Shock Absorber ([03.2017 - ] (1703- ))
90105-14197	Bolt(For Rear Trailing Arm)	Rear Spring & Shock Absorber ([03.2017 - ] (1703- ))
90109-10181	Bolt	Rear Spring & Shock Absorber ([03.2017 - ] (1703- ))
90119-12426	Bolt(For Rear Suspension Arm No.2 Rh)	Rear Spring & Shock Absorber ([03.2017 - ] (1703- ))
90119-12436	BOLT WWASHER	Rear Spring & Shock Absorber ([03.2017 - ] (1703- ))
90119-12444	New Genuine Part	Rear Spring & Shock Absorber ([03.2017 - ] (1703- ))
90119-12445	New Genuine Part	Rear Spring & Shock Absorber ([03.2017 - ] (1703- ))
90178-12009	Nut(For Suspension Lower Arm Shaft)	Rear Spring & Shock Absorber ([03.2017 - ] (1703- ))
90178-14017	NUT FLANGE	Rear Spring & Shock Absorber ([03.2017 - ] (1703- ))
90178-16007	Nut	Rear Spring & Shock Absorber ([03.2017 - ] (1703- ))
90178-A0118	Nut	Rear Spring & Shock Absorber ([03.2017 - ] (1703- ))
90201-16039	New Genuine Part	Rear Spring & Shock Absorber ([03.2017 - ] (1703- ))
94130-61200	Nut	Rear Spring & Shock Absorber ([03.2017 - ] (1703- ))
94151-21241	Nut(For Front Stabilizer Link)	Rear Spring & Shock Absorber ([03.2017 - ] (1703- ))
94151-21441	NUT FLANGE	Rear Spring & Shock Absorber ([03.2017 - ] (1703- ))
