Search › Model › AXVA70
AXVA70

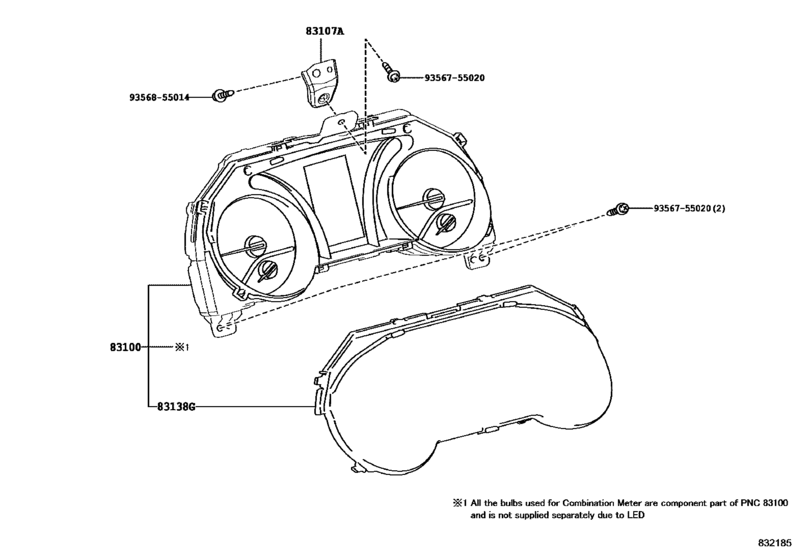

Meter ([03.2017 - ] (1703- )) 5
| # | OEM | Part name |
|---|---|---|
| 83100 | 83800-33Q10 | Meter Assy, Combination |
| 83107 | 83107-33010 | Bracket Sub-Assy, Meter, No.1 |
| 83138 | 83852-33Q10 | Glass, Combination Meter |
| 9356755020 | 93567-55020 | SCREW |
| 9356855014 | 93568-55014 | Screw |
| OEM | Part name | Category |
|---|---|---|
| 83107-33010 | Bracket Sub-Assy, Meter, No.1 | Meter ([03.2017 - ] (1703- )) |
| 83800-33Q10 | Meter Assy, Combination | Meter ([03.2017 - ] (1703- )) |
| 83852-33Q10 | Glass, Combination Meter | Meter ([03.2017 - ] (1703- )) |
| 93567-55020 | SCREW | Meter ([03.2017 - ] (1703- )) |
| 93568-55014 | Screw | Meter ([03.2017 - ] (1703- )) |
