AXVA70

Toyota CAMRY-VISTA-AURION · 2017 · 2,985 parts · 169 categories
AXVA70 ×

← Back to categories

2,985 items

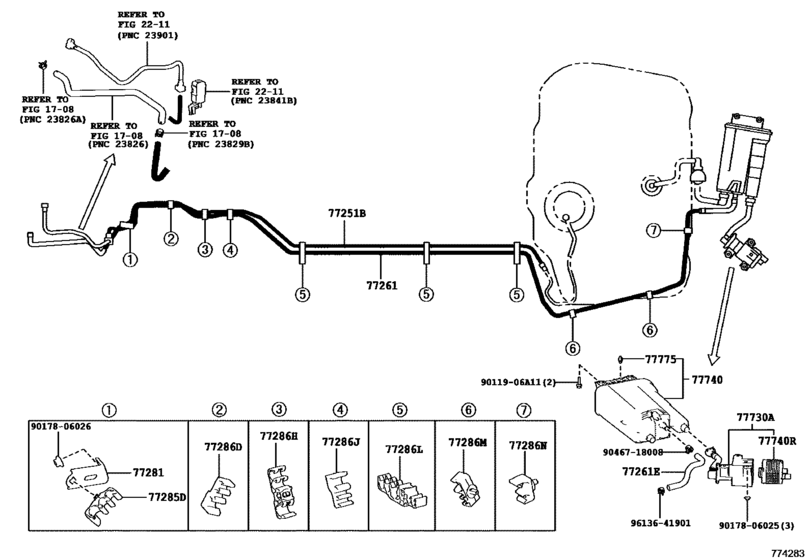

Fuel Tank & Tube ([03.2017 - ] FUEL TUBE (1703- )) 19
#OEMPart name
77251 77251-33240 Tube, Fuel Main
77261 77261-33230 Tube Sub-Assy, Fuel Emission
77261 77249-33120 Hose, Fuel, No.1 (For Fuel Tank To Canister Tube)
77281 77281-33080 Bracket, Fuel Main Tube, No.1
77285 77285-33090 Clamp, Fuel Tube, No.1
77286 77286-48120 Clamp, Fuel Tube, No.7
77286 77298-33110 Clamp, Fuel Tube, No.3
77286 77298-48190 Clamp, Fuel Tube, No.10
77286 77298-33040 Clamp, Fuel Tube, No.5
77286 77286-47050 Clamp, Brake Tube, No.7
77286 77286-33110 Clamp, Fuel Tube, No.7
77730 77730-33110 Canister Assy, Trap W/outlet Valve
77740 77740-33220 Canister Assy, Charcoal
77740 90910-14008 Leak Detection Pump Sub-Assy, Charcoal Canister
77775 77775-33010 Guide, Charcoal Canister Outlet
9011906 90119-06A11 BOLT WWASHER
9017806026 90178-06026 New Genuine Part
9046718008 90467-18008 Clip(For Water By-Pass Hose No.2)
9613641901 96136-41901 Clip Or Clamp(For Ventilation Hose)
