Search › Model › AXVA70

AXVA70

Toyota CAMRY-VISTA-AURION · 2017 · 2,985 parts · 169 categories

2,985 items

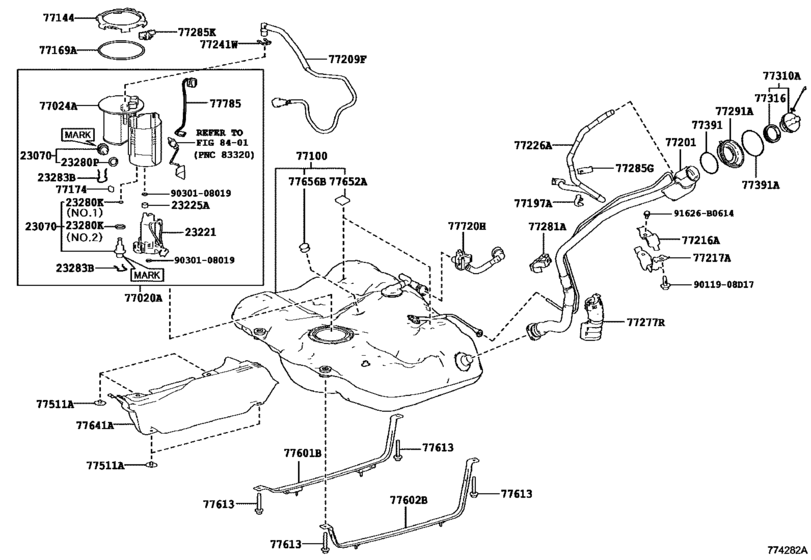

Fuel Tank & Tube ([03.2017 - ] FUEL TANK (1703- )) 41

#	OEM	Part name
23070	23070-25020	Valve Assy, Fuel Main
23070	23070-31030	Valve Assy, Fuel Main
23221	23220-25020	Pump, Fuel
23225	23225-31020	Spacer, Fuel Pump
23280	90301-04013	Ring, O(For Fuel Pump)
23280	90301-15024	Ring, O(For Fuel Pump)
23283	23283-36010	Holder, Fuel Pressure Regulator
77020	77020-33530	Tube Assy, Fuel Suction W/pump & Gage
77024	77024-33240	Plate Sub-Assy, Fuel Suction
77100	77001-33290	Tank Assy, Fuel
77144	77144-30030	Retainer, Fuel Pump Gauge
77169	77169-47040	Gasket, Fuel Suction Tube Set
77174	77174-33060	Support, Fuel Suction, No.1
77197	77197-47010	Clamp, Evaporation Vent Tube, No.2
77201	77201-33410	Pipe Sub-Assy, Fuel Tank Inlet
77209	77209-33150	Tube Sub-Assy, Fuel Tank Main
77216	77216-33160	Support, Fuel Tank Filler Pipe, No.1
77217	77217-33100	Support, Fuel Tank Filler Pipe, No.2
77226	77226-33140	Tube, Fuel Tank Breather, No.6
77241	77241-33011	Clip, Tube Joint
77277	77277-33110	Protector, Fuel Tank Filler Pipe
77281	77281-33070	Clamp, Fuel Filler Pipe
77285	77285-47120	Clamp, Fuel Tube, No.1
77285	77285-30350	Clamp, Fuel Tube, No.1
77291	77291-33110	Shield, Fuel Tank Filler Pipe
77310	77300-53030	Cap Assy, Fuel Tank
77316	77316-75020	Gasket, Fuel Tank Cap
77391	77391-12020	Ring, Fuel Inlet Box
77391	77391-20040	Ring, Fuel Inlet Box
77511	77512-35140	Bracket, Fuel Tank
77601	77601-33170	Band Sub-Assy, Fuel Tank, No.1 Rh
77602	77602-33180	Band Sub-Assy, Fuel Tank, No.1 Lh
77613	90119-10995	Bolt(For Body Mount No.2 Cushion)
77641	77641-33030	Protector, Fuel Tank, No.1
77652	77652-33060	Cushion, Fuel Tank, No.2
77656	77656-33010	Cushion, Fuel Tank, No.6
77720	77720-33010	Valve Assy, Fuel Outlet
77785	77785-33140	Harness, Fuel Pump
91626	91626-B0614	BOLT, W/WASHER
9011908	90119-08D17	BOLT WWASHER
9030108019	90301-08019	Ring, O(For Fuel Pressure Regulator)

OEM	Part name	Category
23070-25020	Valve Assy, Fuel Main	Fuel Tank & Tube ([03.2017 - ] FUEL TANK (1703- ))
23070-31030	Valve Assy, Fuel Main	Fuel Tank & Tube ([03.2017 - ] FUEL TANK (1703- ))
23220-25020	Pump, Fuel	Fuel Tank & Tube ([03.2017 - ] FUEL TANK (1703- ))
23225-31020	Spacer, Fuel Pump	Fuel Tank & Tube ([03.2017 - ] FUEL TANK (1703- ))
23283-36010	Holder, Fuel Pressure Regulator	Fuel Tank & Tube ([03.2017 - ] FUEL TANK (1703- ))
77001-33290	Tank Assy, Fuel	Fuel Tank & Tube ([03.2017 - ] FUEL TANK (1703- ))
77020-33530	Tube Assy, Fuel Suction W/pump & Gage	Fuel Tank & Tube ([03.2017 - ] FUEL TANK (1703- ))
77024-33240	Plate Sub-Assy, Fuel Suction	Fuel Tank & Tube ([03.2017 - ] FUEL TANK (1703- ))
77144-30030	Retainer, Fuel Pump Gauge	Fuel Tank & Tube ([03.2017 - ] FUEL TANK (1703- ))
77169-47040	Gasket, Fuel Suction Tube Set	Fuel Tank & Tube ([03.2017 - ] FUEL TANK (1703- ))
77174-33060	Support, Fuel Suction, No.1	Fuel Tank & Tube ([03.2017 - ] FUEL TANK (1703- ))
77197-47010	Clamp, Evaporation Vent Tube, No.2	Fuel Tank & Tube ([03.2017 - ] FUEL TANK (1703- ))
77201-33410	Pipe Sub-Assy, Fuel Tank Inlet	Fuel Tank & Tube ([03.2017 - ] FUEL TANK (1703- ))
77209-33150	Tube Sub-Assy, Fuel Tank Main	Fuel Tank & Tube ([03.2017 - ] FUEL TANK (1703- ))
77216-33160	Support, Fuel Tank Filler Pipe, No.1	Fuel Tank & Tube ([03.2017 - ] FUEL TANK (1703- ))
77217-33100	Support, Fuel Tank Filler Pipe, No.2	Fuel Tank & Tube ([03.2017 - ] FUEL TANK (1703- ))
77226-33140	Tube, Fuel Tank Breather, No.6	Fuel Tank & Tube ([03.2017 - ] FUEL TANK (1703- ))
77241-33011	Clip, Tube Joint	Fuel Tank & Tube ([03.2017 - ] FUEL TANK (1703- ))
77277-33110	Protector, Fuel Tank Filler Pipe	Fuel Tank & Tube ([03.2017 - ] FUEL TANK (1703- ))
77281-33070	Clamp, Fuel Filler Pipe	Fuel Tank & Tube ([03.2017 - ] FUEL TANK (1703- ))
77285-30350	Clamp, Fuel Tube, No.1	Fuel Tank & Tube ([03.2017 - ] FUEL TANK (1703- ))
77285-47120	Clamp, Fuel Tube, No.1	Fuel Tank & Tube ([03.2017 - ] FUEL TANK (1703- ))
77291-33110	Shield, Fuel Tank Filler Pipe	Fuel Tank & Tube ([03.2017 - ] FUEL TANK (1703- ))
77300-53030	Cap Assy, Fuel Tank	Fuel Tank & Tube ([03.2017 - ] FUEL TANK (1703- ))
77316-75020	Gasket, Fuel Tank Cap	Fuel Tank & Tube ([03.2017 - ] FUEL TANK (1703- ))
77391-12020	Ring, Fuel Inlet Box	Fuel Tank & Tube ([03.2017 - ] FUEL TANK (1703- ))
77391-20040	Ring, Fuel Inlet Box	Fuel Tank & Tube ([03.2017 - ] FUEL TANK (1703- ))
77512-35140	Bracket, Fuel Tank	Fuel Tank & Tube ([03.2017 - ] FUEL TANK (1703- ))
77601-33170	Band Sub-Assy, Fuel Tank, No.1 Rh	Fuel Tank & Tube ([03.2017 - ] FUEL TANK (1703- ))
77602-33180	Band Sub-Assy, Fuel Tank, No.1 Lh	Fuel Tank & Tube ([03.2017 - ] FUEL TANK (1703- ))
77641-33030	Protector, Fuel Tank, No.1	Fuel Tank & Tube ([03.2017 - ] FUEL TANK (1703- ))
77652-33060	Cushion, Fuel Tank, No.2	Fuel Tank & Tube ([03.2017 - ] FUEL TANK (1703- ))
77656-33010	Cushion, Fuel Tank, No.6	Fuel Tank & Tube ([03.2017 - ] FUEL TANK (1703- ))
77720-33010	Valve Assy, Fuel Outlet	Fuel Tank & Tube ([03.2017 - ] FUEL TANK (1703- ))
77785-33140	Harness, Fuel Pump	Fuel Tank & Tube ([03.2017 - ] FUEL TANK (1703- ))
90119-08D17	BOLT WWASHER	Fuel Tank & Tube ([03.2017 - ] FUEL TANK (1703- ))
90119-10995	Bolt(For Body Mount No.2 Cushion)	Fuel Tank & Tube ([03.2017 - ] FUEL TANK (1703- ))
90301-04013	Ring, O(For Fuel Pump)	Fuel Tank & Tube ([03.2017 - ] FUEL TANK (1703- ))
90301-08019	Ring, O(For Fuel Pressure Regulator)	Fuel Tank & Tube ([03.2017 - ] FUEL TANK (1703- ))
90301-15024	Ring, O(For Fuel Pump)	Fuel Tank & Tube ([03.2017 - ] FUEL TANK (1703- ))
91626-B0614	BOLT, W/WASHER	Fuel Tank & Tube ([03.2017 - ] FUEL TANK (1703- ))

Source: Public OEM parts-catalog data
Variants: 2 / 2
Category: 169
Collected: 2026-08-02
