Search › Model › AXVA70

AXVA70

Toyota CAMRY-VISTA-AURION · 2017 · 2,985 parts · 169 categories

2,985 items

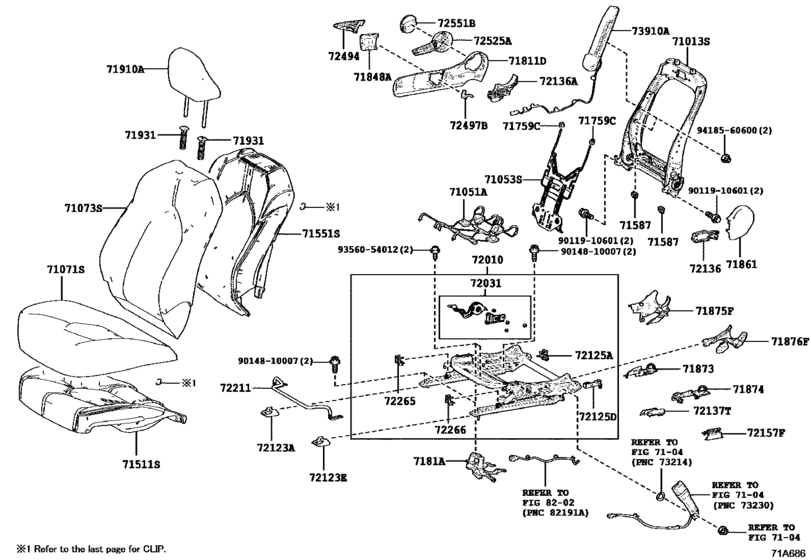

Front Seat & Seat Track ([03.2017 - ] PASSENGER SEAT (1703- )) 73

#	OEM	Part name
71013	71013-33360	Frame Sub-Assy, Front Seat Back, Rh
71051	71051-47090	Spring Sub-Assy, Front Seat Cushion, Rh
71053	71053-47050	Spring Sub-Assy, Front Seat Back, Rh
71071	71071-33R90-B3	Cover, Front Seat Cushion, Rh(For Separate Type)
71071	71071-33R90-C3	Cover, Front Seat Cushion, Rh(For Separate Type)
71071	71071-33P90-A3	Cover, Front Seat Cushion, Rh(For Separate Type)
71071	71071-33P90-B3	Cover, Front Seat Cushion, Rh(For Separate Type)
71071	71071-33P90-C3	Cover, Front Seat Cushion, Rh(For Separate Type)
71073	71073-33T50-B4	Cover, Front Seat Back, Rh(For Separate Type)
71073	71073-33T50-C3	Cover, Front Seat Back, Rh(For Separate Type)
71073	71073-33R40-A4	Cover, Front Seat Back, Rh(For Separate Type)
71073	71073-33R40-B4	Cover, Front Seat Back, Rh(For Separate Type)
71073	71073-33R40-C4	Cover, Front Seat Back, Rh(For Separate Type)
71511	71511-33530	Pad, Front Seat Cushion, Rh(For Separate Type)
71551	71551-33410	Pad, Front Seat Back, Rh(For Separate Type)
71587	71587-47010	Protector, Front Seat Back Edge
71759	71759-52050	Hook, Front Seat Back
71811	71811-47140-B0	Shield, Front Seat Cushion, Rh
71811	71811-47140-C1	Shield, Front Seat Cushion, Rh
71811	71811-47140-E0	Shield, Front Seat Cushion, Rh
71848	71848-47040-B0	Cap, Seat Adjuster Cover, Rh
71848	71848-47040-C1	Cap, Seat Adjuster Cover, Rh
71848	71848-47040-E0	Cap, Seat Adjuster Cover, Rh
71861	71861-47070-B0	Shield, Front Seat Cushion, Inner Rh
71861	71861-47070-C1	Shield, Front Seat Cushion, Inner Rh
71861	71861-47070-E0	Shield, Front Seat Cushion, Inner Rh
71873	71873-47070	Shield, Front Seat Cushion, Lower Rh
71874	71873-33140	Shield, Front Seat Cushion, Lower Lh
71875	71875-47040-B0	Cover, Reclining Adjuster Inside, Rh (For Rh Seat)
71875	71875-47040-C1	Cover, Reclining Adjuster Inside, Rh (For Rh Seat)
71875	71875-47040-E0	Cover, Reclining Adjuster Inside, Rh (For Rh Seat)
71876	71875-47070-B0	Cover, Reclining Adjuster Inside, Lh (For Rh Seat)
71876	71875-47070-C1	Cover, Reclining Adjuster Inside, Lh (For Rh Seat)
71876	71875-47070-E0	Cover, Reclining Adjuster Inside, Lh (For Rh Seat)
71910	71910-33B60-C9	Headrest Assy, Front Seat
71910	71910-33B60-P0	Headrest Assy, Front Seat
71910	71910-33A80-B3	Headrest Assy, Front Seat
71910	71910-33A80-C5	Headrest Assy, Front Seat
71910	71910-33A80-E4	Headrest Assy, Front Seat
71931	71930-47050-B3	Support, Front Seat Headrest
71931	71930-47050-C5	Support, Front Seat Headrest
71931	71931-47030-B4	Support, Front Seat Headrest
71931	71931-47030-C4	Support, Front Seat Headrest
71931	71930-47050-B2	Support, Front Seat Headrest
71931	71930-47050-E0	Support, Front Seat Headrest
71931	71931-47030-B3	Support, Front Seat Headrest
71931	71931-47030-E0	Support, Front Seat Headrest
72010	72010-33540	Adjuster Assy, Front Seat, Rh
72031	72443-47010	Adjuster Assy, Front Seat Vertical
72123	72123-47060	Cover, Seat Track Bracket, Outer Front Rh
72125	72125-47020	Cover, Seat Track, Upper Rear No.2
72125	72125-47010	Cover, Seat Track Lock Plate, No.1
72136	72136-33250	Spacer, Seat Track, Lower No.1
72136	72136-33260	Spacer, Seat Track, Lower No.2
72137	72137-47060	Cover, Seat Track, Outer Rh
72157	72157-47080	Cover, Seat Track Bracket, Inner Rh
72211	72211-47050	Handle, Seat Track Adjusting
72265	72265-47010	Cover, Seat Track Upper Rail, Rh
72494	72494-47030-B0	Handle, Vertical Adjusting, Rh
72494	72494-47030-C1	Handle, Vertical Adjusting, Rh
72494	72494-47030-E0	Handle, Vertical Adjusting, Rh
72497	72498-47010	Cover, Vertical Adjuster Bracket, Rh
72525	72525-33050-B0	Handle, Reclining Adjuster Release, Rh
72525	72525-33050-C0	Handle, Reclining Adjuster Release, Rh
72525	72525-33050-E0	Handle, Reclining Adjuster Release, Rh
72551	72551-33010-B0	Cover, Reclining Hinge, Rh
72551	72551-33010-C0	Cover, Reclining Hinge, Rh
72551	72551-33010-E0	Cover, Reclining Hinge, Rh
73910	73910-33080	Air Bag Assy, Front Seat, Rh
9011910601	90119-10601	BOLT W-WASHER
9014810007	90148-10007	SCREW HEXALOBULAR
9356054012	93560-54012	Screw
9418560600	94185-60600	Nut, Wire Adjusting, No.1

OEM	Part name	Category
71013-33360	Frame Sub-Assy, Front Seat Back, Rh	Front Seat & Seat Track ([03.2017 - ] PASSENGER SEAT (1703- ))
71051-47090	Spring Sub-Assy, Front Seat Cushion, Rh	Front Seat & Seat Track ([03.2017 - ] PASSENGER SEAT (1703- ))
71053-47050	Spring Sub-Assy, Front Seat Back, Rh	Front Seat & Seat Track ([03.2017 - ] PASSENGER SEAT (1703- ))
71071-33P90-A3	Cover, Front Seat Cushion, Rh(For Separate Type)	Front Seat & Seat Track ([03.2017 - ] PASSENGER SEAT (1703- ))
71071-33P90-B3	Cover, Front Seat Cushion, Rh(For Separate Type)	Front Seat & Seat Track ([03.2017 - ] PASSENGER SEAT (1703- ))
71071-33P90-C3	Cover, Front Seat Cushion, Rh(For Separate Type)	Front Seat & Seat Track ([03.2017 - ] PASSENGER SEAT (1703- ))
71071-33R90-B3	Cover, Front Seat Cushion, Rh(For Separate Type)	Front Seat & Seat Track ([03.2017 - ] PASSENGER SEAT (1703- ))
71071-33R90-C3	Cover, Front Seat Cushion, Rh(For Separate Type)	Front Seat & Seat Track ([03.2017 - ] PASSENGER SEAT (1703- ))
71073-33R40-A4	Cover, Front Seat Back, Rh(For Separate Type)	Front Seat & Seat Track ([03.2017 - ] PASSENGER SEAT (1703- ))
71073-33R40-B4	Cover, Front Seat Back, Rh(For Separate Type)	Front Seat & Seat Track ([03.2017 - ] PASSENGER SEAT (1703- ))
71073-33R40-C4	Cover, Front Seat Back, Rh(For Separate Type)	Front Seat & Seat Track ([03.2017 - ] PASSENGER SEAT (1703- ))
71073-33T50-B4	Cover, Front Seat Back, Rh(For Separate Type)	Front Seat & Seat Track ([03.2017 - ] PASSENGER SEAT (1703- ))
71073-33T50-C3	Cover, Front Seat Back, Rh(For Separate Type)	Front Seat & Seat Track ([03.2017 - ] PASSENGER SEAT (1703- ))
71511-33530	Pad, Front Seat Cushion, Rh(For Separate Type)	Front Seat & Seat Track ([03.2017 - ] PASSENGER SEAT (1703- ))
71551-33410	Pad, Front Seat Back, Rh(For Separate Type)	Front Seat & Seat Track ([03.2017 - ] PASSENGER SEAT (1703- ))
71587-47010	Protector, Front Seat Back Edge	Front Seat & Seat Track ([03.2017 - ] PASSENGER SEAT (1703- ))
71759-52050	Hook, Front Seat Back	Front Seat & Seat Track ([03.2017 - ] PASSENGER SEAT (1703- ))
71811-47140-B0	Shield, Front Seat Cushion, Rh	Front Seat & Seat Track ([03.2017 - ] PASSENGER SEAT (1703- ))
71811-47140-C1	Shield, Front Seat Cushion, Rh	Front Seat & Seat Track ([03.2017 - ] PASSENGER SEAT (1703- ))
71811-47140-E0	Shield, Front Seat Cushion, Rh	Front Seat & Seat Track ([03.2017 - ] PASSENGER SEAT (1703- ))
71848-47040-B0	Cap, Seat Adjuster Cover, Rh	Front Seat & Seat Track ([03.2017 - ] PASSENGER SEAT (1703- ))
71848-47040-C1	Cap, Seat Adjuster Cover, Rh	Front Seat & Seat Track ([03.2017 - ] PASSENGER SEAT (1703- ))
71848-47040-E0	Cap, Seat Adjuster Cover, Rh	Front Seat & Seat Track ([03.2017 - ] PASSENGER SEAT (1703- ))
71861-47070-B0	Shield, Front Seat Cushion, Inner Rh	Front Seat & Seat Track ([03.2017 - ] PASSENGER SEAT (1703- ))
71861-47070-C1	Shield, Front Seat Cushion, Inner Rh	Front Seat & Seat Track ([03.2017 - ] PASSENGER SEAT (1703- ))
71861-47070-E0	Shield, Front Seat Cushion, Inner Rh	Front Seat & Seat Track ([03.2017 - ] PASSENGER SEAT (1703- ))
71873-33140	Shield, Front Seat Cushion, Lower Lh	Front Seat & Seat Track ([03.2017 - ] PASSENGER SEAT (1703- ))
71873-47070	Shield, Front Seat Cushion, Lower Rh	Front Seat & Seat Track ([03.2017 - ] PASSENGER SEAT (1703- ))
71875-47040-B0	Cover, Reclining Adjuster Inside, Rh (For Rh Seat)	Front Seat & Seat Track ([03.2017 - ] PASSENGER SEAT (1703- ))
71875-47040-C1	Cover, Reclining Adjuster Inside, Rh (For Rh Seat)	Front Seat & Seat Track ([03.2017 - ] PASSENGER SEAT (1703- ))
71875-47040-E0	Cover, Reclining Adjuster Inside, Rh (For Rh Seat)	Front Seat & Seat Track ([03.2017 - ] PASSENGER SEAT (1703- ))
71875-47070-B0	Cover, Reclining Adjuster Inside, Lh (For Rh Seat)	Front Seat & Seat Track ([03.2017 - ] PASSENGER SEAT (1703- ))
71875-47070-C1	Cover, Reclining Adjuster Inside, Lh (For Rh Seat)	Front Seat & Seat Track ([03.2017 - ] PASSENGER SEAT (1703- ))
71875-47070-E0	Cover, Reclining Adjuster Inside, Lh (For Rh Seat)	Front Seat & Seat Track ([03.2017 - ] PASSENGER SEAT (1703- ))
71910-33A80-B3	Headrest Assy, Front Seat	Front Seat & Seat Track ([03.2017 - ] PASSENGER SEAT (1703- ))
71910-33A80-C5	Headrest Assy, Front Seat	Front Seat & Seat Track ([03.2017 - ] PASSENGER SEAT (1703- ))
71910-33A80-E4	Headrest Assy, Front Seat	Front Seat & Seat Track ([03.2017 - ] PASSENGER SEAT (1703- ))
71910-33B60-C9	Headrest Assy, Front Seat	Front Seat & Seat Track ([03.2017 - ] PASSENGER SEAT (1703- ))
71910-33B60-P0	Headrest Assy, Front Seat	Front Seat & Seat Track ([03.2017 - ] PASSENGER SEAT (1703- ))
71930-47050-B2	Support, Front Seat Headrest	Front Seat & Seat Track ([03.2017 - ] PASSENGER SEAT (1703- ))
71930-47050-B3	Support, Front Seat Headrest	Front Seat & Seat Track ([03.2017 - ] PASSENGER SEAT (1703- ))
71930-47050-C5	Support, Front Seat Headrest	Front Seat & Seat Track ([03.2017 - ] PASSENGER SEAT (1703- ))
71930-47050-E0	Support, Front Seat Headrest	Front Seat & Seat Track ([03.2017 - ] PASSENGER SEAT (1703- ))
71931-47030-B3	Support, Front Seat Headrest	Front Seat & Seat Track ([03.2017 - ] PASSENGER SEAT (1703- ))
71931-47030-B4	Support, Front Seat Headrest	Front Seat & Seat Track ([03.2017 - ] PASSENGER SEAT (1703- ))
71931-47030-C4	Support, Front Seat Headrest	Front Seat & Seat Track ([03.2017 - ] PASSENGER SEAT (1703- ))
71931-47030-E0	Support, Front Seat Headrest	Front Seat & Seat Track ([03.2017 - ] PASSENGER SEAT (1703- ))
72010-33540	Adjuster Assy, Front Seat, Rh	Front Seat & Seat Track ([03.2017 - ] PASSENGER SEAT (1703- ))
72123-47060	Cover, Seat Track Bracket, Outer Front Rh	Front Seat & Seat Track ([03.2017 - ] PASSENGER SEAT (1703- ))
72125-47010	Cover, Seat Track Lock Plate, No.1	Front Seat & Seat Track ([03.2017 - ] PASSENGER SEAT (1703- ))
72125-47020	Cover, Seat Track, Upper Rear No.2	Front Seat & Seat Track ([03.2017 - ] PASSENGER SEAT (1703- ))
72136-33250	Spacer, Seat Track, Lower No.1	Front Seat & Seat Track ([03.2017 - ] PASSENGER SEAT (1703- ))
72136-33260	Spacer, Seat Track, Lower No.2	Front Seat & Seat Track ([03.2017 - ] PASSENGER SEAT (1703- ))
72137-47060	Cover, Seat Track, Outer Rh	Front Seat & Seat Track ([03.2017 - ] PASSENGER SEAT (1703- ))
72157-47080	Cover, Seat Track Bracket, Inner Rh	Front Seat & Seat Track ([03.2017 - ] PASSENGER SEAT (1703- ))
72211-47050	Handle, Seat Track Adjusting	Front Seat & Seat Track ([03.2017 - ] PASSENGER SEAT (1703- ))
72265-47010	Cover, Seat Track Upper Rail, Rh	Front Seat & Seat Track ([03.2017 - ] PASSENGER SEAT (1703- ))
72443-47010	Adjuster Assy, Front Seat Vertical	Front Seat & Seat Track ([03.2017 - ] PASSENGER SEAT (1703- ))
72494-47030-B0	Handle, Vertical Adjusting, Rh	Front Seat & Seat Track ([03.2017 - ] PASSENGER SEAT (1703- ))
72494-47030-C1	Handle, Vertical Adjusting, Rh	Front Seat & Seat Track ([03.2017 - ] PASSENGER SEAT (1703- ))
72494-47030-E0	Handle, Vertical Adjusting, Rh	Front Seat & Seat Track ([03.2017 - ] PASSENGER SEAT (1703- ))
72498-47010	Cover, Vertical Adjuster Bracket, Rh	Front Seat & Seat Track ([03.2017 - ] PASSENGER SEAT (1703- ))
72525-33050-B0	Handle, Reclining Adjuster Release, Rh	Front Seat & Seat Track ([03.2017 - ] PASSENGER SEAT (1703- ))
72525-33050-C0	Handle, Reclining Adjuster Release, Rh	Front Seat & Seat Track ([03.2017 - ] PASSENGER SEAT (1703- ))
72525-33050-E0	Handle, Reclining Adjuster Release, Rh	Front Seat & Seat Track ([03.2017 - ] PASSENGER SEAT (1703- ))
72551-33010-B0	Cover, Reclining Hinge, Rh	Front Seat & Seat Track ([03.2017 - ] PASSENGER SEAT (1703- ))
72551-33010-C0	Cover, Reclining Hinge, Rh	Front Seat & Seat Track ([03.2017 - ] PASSENGER SEAT (1703- ))
72551-33010-E0	Cover, Reclining Hinge, Rh	Front Seat & Seat Track ([03.2017 - ] PASSENGER SEAT (1703- ))
73910-33080	Air Bag Assy, Front Seat, Rh	Front Seat & Seat Track ([03.2017 - ] PASSENGER SEAT (1703- ))
90119-10601	BOLT W-WASHER	Front Seat & Seat Track ([03.2017 - ] PASSENGER SEAT (1703- ))
90148-10007	SCREW HEXALOBULAR	Front Seat & Seat Track ([03.2017 - ] PASSENGER SEAT (1703- ))
93560-54012	Screw	Front Seat & Seat Track ([03.2017 - ] PASSENGER SEAT (1703- ))
94185-60600	Nut, Wire Adjusting, No.1	Front Seat & Seat Track ([03.2017 - ] PASSENGER SEAT (1703- ))

Source: Public OEM parts-catalog data
Variants: 2 / 2
Category: 169
Collected: 2026-08-02
