Search › Model › AXVA70

AXVA70

Toyota CAMRY-VISTA-AURION · 2017 · 2,985 parts · 169 categories

← Back to categories

2,985 items

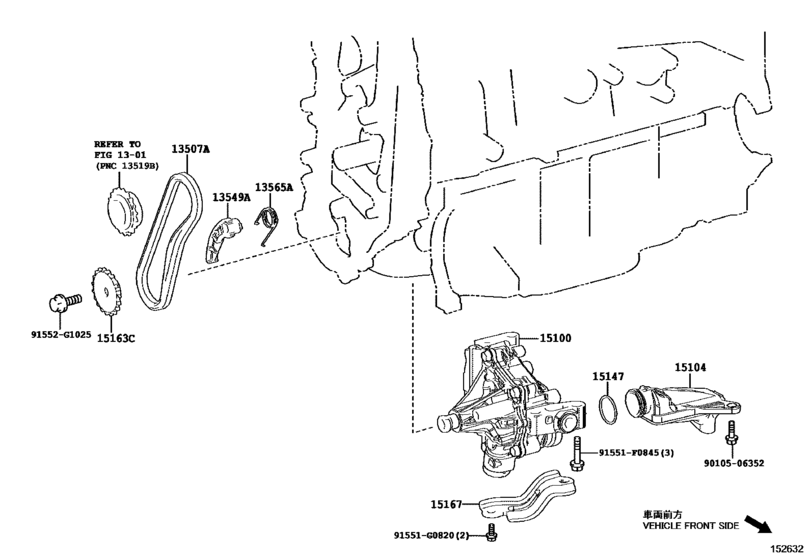

Engine Oil Pump ([03.2017 - ] (1703- )) 12

#	OEM	Part name
13507	13507-25010	Chain Sub-Assy, Oil Pump Drive
13549	13549-25020	Plate, Chain Tensioner
13565	13565-25010	Spring, Chain Damper
15100	15100-25031	Pump Assy, Oil
15104	15104-25030	Strainer Sub-Assy, Oil
15147	15147-25010	Gasket, Oil Strainer
15163	15163-25010	Sprocket, Oil Pump Drive Shaft
15167	15167-25010	Bracket, Oil Pump
91551	91551-F0845	BOLT FLANGE
91551	91551-G0820	BOLT FLANGE
91552	91552-G1025	Bolt, Stabilizer Rear Bar
9010506352	90105-06352	BOLT FLANGE

OEM	Part name	Category
13507-25010	Chain Sub-Assy, Oil Pump Drive	Engine Oil Pump ([03.2017 - ] (1703- ))
13549-25020	Plate, Chain Tensioner	Engine Oil Pump ([03.2017 - ] (1703- ))
13565-25010	Spring, Chain Damper	Engine Oil Pump ([03.2017 - ] (1703- ))
15100-25031	Pump Assy, Oil	Engine Oil Pump ([03.2017 - ] (1703- ))
15104-25030	Strainer Sub-Assy, Oil	Engine Oil Pump ([03.2017 - ] (1703- ))
15147-25010	Gasket, Oil Strainer	Engine Oil Pump ([03.2017 - ] (1703- ))
15163-25010	Sprocket, Oil Pump Drive Shaft	Engine Oil Pump ([03.2017 - ] (1703- ))
15167-25010	Bracket, Oil Pump	Engine Oil Pump ([03.2017 - ] (1703- ))
90105-06352	BOLT FLANGE	Engine Oil Pump ([03.2017 - ] (1703- ))
91551-F0845	BOLT FLANGE	Engine Oil Pump ([03.2017 - ] (1703- ))
91551-G0820	BOLT FLANGE	Engine Oil Pump ([03.2017 - ] (1703- ))
91552-G1025	Bolt, Stabilizer Rear Bar	Engine Oil Pump ([03.2017 - ] (1703- ))
