AXVA70

Toyota CAMRY-VISTA-AURION · 2017 · 2,985 parts · 169 categories

2,985 items

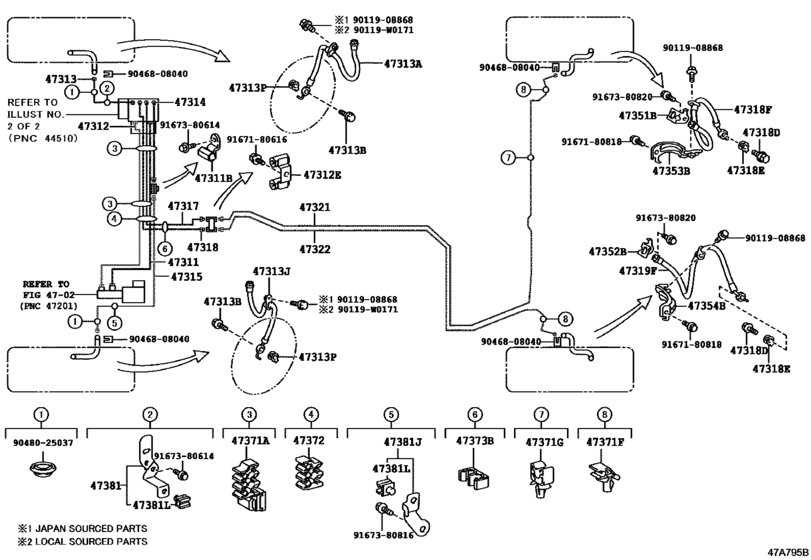

Brake Tube & Clamp ([03.2017 - ] (1703- )) 44

#	OEM	Part name
44510	44050-33660	Actuator Assy, Brake
44510	44050-33670	Actuator Assy, Brake
44521	44521-12060	Collar, Brake Actuator Case, No.1
44546	44547-10080	Cushion, Brake Actuator Bracket
44590	44590-33170	Bracket Assy, Brake Actuator
47311	47311-33400	Tube, Front Brake, No.1
47311	90412-10272	Way, No.1(For Front Brake Tube)
47312	47312-33290	Tube, Front Brake, No.2
47312	90412-10285	Way, No.1(For Front Brake Tube)
47313	47313-33320	Tube, Front Brake, No.3
47313	90947-02H65	Hose, Flexible, No.1(For Front)
47313	90401-10058	Bolt, Union(For Front Flexible Hose)
47313	90947-02H66	Hose, Flexible, No.2(For Front)
47313	47389-50021	Gasket(For Front Flexible Hose)
47314	47314-33320	Tube, Front Brake, No.4
47315	47315-33390	Tube, Front Brake, No.5
47317	47317-33420	Tube, Front Brake, No.7
47318	47318-33120	Tube, Front Brake, No.8
47318	90947-02H48	Hose, Flexible(For Rear Rh)
47321	47321-33220	Tube, Rear Brake, No.1
47322	47322-33190	Tube, Rear Brake, No.2
47351	47351-47030	Bracket, Flexible Hose, No.1
47352	47352-47030	Bracket, Flexible Hose, No.2
47353	47351-47040	Bracket, Flexible Hose, No.3
47354	47352-47040	Bracket, Flexible Hose, No.4
47371	90949-01E31	Clamp, Brake Tube, No.1
47371	90949-01E10	Clamp, Brake Tube, No.9
47371	90949-01E01	Clamp, Brake Tube, No.9
47372	90949-01E40	Clamp, Brake Tube, No.2
47373	90464-00904	Clamp, Height Control Tube No.9
47381	47371-33340	Bracket, Brake Tube Clamp No.1
47381	47371-33350	Bracket, Brake Tube Clamp, No.2
47381	90949-01D56	Clamp(For Accumulator To Flexible Hose Tube)
90119	90119-W0061	New Genuine Part
9011906844	90119-06844	Bolt, Brake Actuator Cushion
9011908868	90119-08868	BOLT WWASHER
9017808021	90178-08021	New Genuine Part
9046808040	90468-08040	CLIP
9048025037	90480-25037	GROMMET
9167180616	91671-80616	BOLT FLANGE
9167180818	91671-80818	BOLT FLANGE
9167380614	91673-80614	BOLT, FLANGE W/WASER
9167380816	91673-80816	Bolt (For Transmission Control Cable Bracket)
9167380820	91673-80820	Bolt (For Transmission Control Cable Bracket)

OEM	Part name	Category
44050-33660	Actuator Assy, Brake	Brake Tube & Clamp ([03.2017 - ] (1703- ))
44050-33670	Actuator Assy, Brake	Brake Tube & Clamp ([03.2017 - ] (1703- ))
44521-12060	Collar, Brake Actuator Case, No.1	Brake Tube & Clamp ([03.2017 - ] (1703- ))
44547-10080	Cushion, Brake Actuator Bracket	Brake Tube & Clamp ([03.2017 - ] (1703- ))
44590-33170	Bracket Assy, Brake Actuator	Brake Tube & Clamp ([03.2017 - ] (1703- ))
47311-33400	Tube, Front Brake, No.1	Brake Tube & Clamp ([03.2017 - ] (1703- ))
47312-33290	Tube, Front Brake, No.2	Brake Tube & Clamp ([03.2017 - ] (1703- ))
47313-33320	Tube, Front Brake, No.3	Brake Tube & Clamp ([03.2017 - ] (1703- ))
47314-33320	Tube, Front Brake, No.4	Brake Tube & Clamp ([03.2017 - ] (1703- ))
47315-33390	Tube, Front Brake, No.5	Brake Tube & Clamp ([03.2017 - ] (1703- ))
47317-33420	Tube, Front Brake, No.7	Brake Tube & Clamp ([03.2017 - ] (1703- ))
47318-33120	Tube, Front Brake, No.8	Brake Tube & Clamp ([03.2017 - ] (1703- ))
47321-33220	Tube, Rear Brake, No.1	Brake Tube & Clamp ([03.2017 - ] (1703- ))
47322-33190	Tube, Rear Brake, No.2	Brake Tube & Clamp ([03.2017 - ] (1703- ))
47351-47030	Bracket, Flexible Hose, No.1	Brake Tube & Clamp ([03.2017 - ] (1703- ))
47351-47040	Bracket, Flexible Hose, No.3	Brake Tube & Clamp ([03.2017 - ] (1703- ))
47352-47030	Bracket, Flexible Hose, No.2	Brake Tube & Clamp ([03.2017 - ] (1703- ))
47352-47040	Bracket, Flexible Hose, No.4	Brake Tube & Clamp ([03.2017 - ] (1703- ))
47371-33340	Bracket, Brake Tube Clamp No.1	Brake Tube & Clamp ([03.2017 - ] (1703- ))
47371-33350	Bracket, Brake Tube Clamp, No.2	Brake Tube & Clamp ([03.2017 - ] (1703- ))
47389-50021	Gasket(For Front Flexible Hose)	Brake Tube & Clamp ([03.2017 - ] (1703- ))
90119-06844	Bolt, Brake Actuator Cushion	Brake Tube & Clamp ([03.2017 - ] (1703- ))
90119-08868	BOLT WWASHER	Brake Tube & Clamp ([03.2017 - ] (1703- ))
90119-W0061	New Genuine Part	Brake Tube & Clamp ([03.2017 - ] (1703- ))
90178-08021	New Genuine Part	Brake Tube & Clamp ([03.2017 - ] (1703- ))
90401-10058	Bolt, Union(For Front Flexible Hose)	Brake Tube & Clamp ([03.2017 - ] (1703- ))
90412-10272	Way, No.1(For Front Brake Tube)	Brake Tube & Clamp ([03.2017 - ] (1703- ))
90412-10285	Way, No.1(For Front Brake Tube)	Brake Tube & Clamp ([03.2017 - ] (1703- ))
90464-00904	Clamp, Height Control Tube No.9	Brake Tube & Clamp ([03.2017 - ] (1703- ))
90468-08040	CLIP	Brake Tube & Clamp ([03.2017 - ] (1703- ))
90480-25037	GROMMET	Brake Tube & Clamp ([03.2017 - ] (1703- ))
90947-02H48	Hose, Flexible(For Rear Rh)	Brake Tube & Clamp ([03.2017 - ] (1703- ))
90947-02H65	Hose, Flexible, No.1(For Front)	Brake Tube & Clamp ([03.2017 - ] (1703- ))
90947-02H66	Hose, Flexible, No.2(For Front)	Brake Tube & Clamp ([03.2017 - ] (1703- ))
90949-01D56	Clamp(For Accumulator To Flexible Hose Tube)	Brake Tube & Clamp ([03.2017 - ] (1703- ))
90949-01E01	Clamp, Brake Tube, No.9	Brake Tube & Clamp ([03.2017 - ] (1703- ))
90949-01E10	Clamp, Brake Tube, No.9	Brake Tube & Clamp ([03.2017 - ] (1703- ))
90949-01E31	Clamp, Brake Tube, No.1	Brake Tube & Clamp ([03.2017 - ] (1703- ))
90949-01E40	Clamp, Brake Tube, No.2	Brake Tube & Clamp ([03.2017 - ] (1703- ))
91671-80616	BOLT FLANGE	Brake Tube & Clamp ([03.2017 - ] (1703- ))
91671-80818	BOLT FLANGE	Brake Tube & Clamp ([03.2017 - ] (1703- ))
91673-80614	BOLT, FLANGE W/WASER	Brake Tube & Clamp ([03.2017 - ] (1703- ))
91673-80816	Bolt (For Transmission Control Cable Bracket)	Brake Tube & Clamp ([03.2017 - ] (1703- ))
91673-80820	Bolt (For Transmission Control Cable Bracket)	Brake Tube & Clamp ([03.2017 - ] (1703- ))
