Search › Model › AXVA70

AXVA70

Toyota CAMRY-VISTA-AURION · 2017 · 2,985 parts · 169 categories

2,985 items

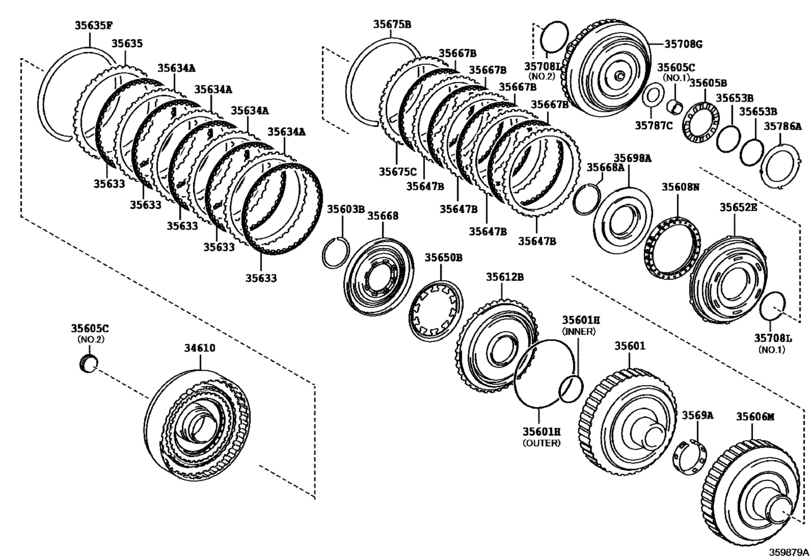

Brake Band & Multiple Disc Clutch (Atm) ([03.2017 - ] UB80E (1703- )) 50

#	OEM	Part name
34610	34610-33060	Clutch Assy, C-3 & C-4
35601	35601-33010	Drum Sub-Assy, Clutch
35601	90301-99219	Ring, O(For C-1 Drum)
35601	90302-40001	Ring, O(For C-1 Drum)
35603	90520-44043	Ring, Shaft Snap (For Forward Clutch Piston)
35605	90374-47005	Bearing, Thrust Needle Roller
35605	90364-13010	Bearing, Needle Roller
35605	90364-23006	Bearing, Needle Roller
35606	35606-33030	Hub Sub-Assy, Sun Gear Input
35606	35606-33040	Hub Sub-Assy, Sun Gear Input
35612	35612-33070	Piston, Forward Clutch
35633	35633-33140	Disc, Clutch (For Front Clutch)
35634	35634-33090	Plate, Clutch (For Forward Multiple Disc Clutch)
35635	35635-33200	Flange, Forward Clutch
35635	35635-33210	Flange, Forward Clutch
35635	35635-33220	Flange, Forward Clutch
35635	35635-33230	Flange, Forward Clutch
35635	35635-33240	Flange, Forward Clutch
35635	35635-33250	Flange, Forward Clutch
35635	35635-33260	Flange, Forward Clutch
35635	90521-99194	Ring Snap (For Foward Clutch Flange)
35647	35647-33050	Plate, Clutch, No.2
35650	35628-33050	Spring, Compression (For Rear Clutch Piston Return)
35652	35652-33020	Piston, C-2 Clutch
35653	35653-33020	Ring, Direct Clutch Drum Oil Seal
35667	35667-33040	Disk, Clutch, No.2
35668	35668-33030	Balancer, Clutch, No.1
35668	90520-45038	Ring, Snap(For Clutch Balancer)
35675	90521-99195	Ring, Hole Snap (For Forward Clutch Flange)
35675	35675-33070	Flange, Direct Clutch
35675	35675-33080	Flange, Direct Clutch
35675	35675-33090	Flange, Direct Clutch
35675	35675-33100	Flange, Direct Clutch
35675	35675-33110	Flange, Direct Clutch
35675	35675-33120	Flange, Direct Clutch
35675	35675-33130	Flange, Direct Clutch
35675	35675-33140	Flange, Direct Clutch
35675	35675-33150	Flange, Direct Clutch
35675	35675-33160	Flange, Direct Clutch
35675	35675-33170	Flange, Direct Clutch
35675	35675-33180	Flange, Direct Clutch
35675	35675-33190	Flange, Direct Clutch
35675	35675-33200	Flange, Direct Clutch
35698	35698-33010	Balancer, C-2 Clutch
35708	35708-33060	Shaft Sub-Assy, Intermediate
35708	35708-33070	Shaft Sub-Assy, Intermediate
35708	90301-45007	Ring, O (For Intermediate Shaft)
35708	90301-45008	Ring, O (For Intermediate Shaft)
35786	35786-33020	Race, Thrust Bearing, No.1
35787	35787-33030	Race, Thrust Bearing, No.2

OEM	Part name	Category
34610-33060	Clutch Assy, C-3 & C-4	Brake Band & Multiple Disc Clutch (Atm) ([03.2017 - ] UB80E (1703- ))
35601-33010	Drum Sub-Assy, Clutch	Brake Band & Multiple Disc Clutch (Atm) ([03.2017 - ] UB80E (1703- ))
35606-33030	Hub Sub-Assy, Sun Gear Input	Brake Band & Multiple Disc Clutch (Atm) ([03.2017 - ] UB80E (1703- ))
35606-33040	Hub Sub-Assy, Sun Gear Input	Brake Band & Multiple Disc Clutch (Atm) ([03.2017 - ] UB80E (1703- ))
35612-33070	Piston, Forward Clutch	Brake Band & Multiple Disc Clutch (Atm) ([03.2017 - ] UB80E (1703- ))
35628-33050	Spring, Compression (For Rear Clutch Piston Return)	Brake Band & Multiple Disc Clutch (Atm) ([03.2017 - ] UB80E (1703- ))
35633-33140	Disc, Clutch (For Front Clutch)	Brake Band & Multiple Disc Clutch (Atm) ([03.2017 - ] UB80E (1703- ))
35634-33090	Plate, Clutch (For Forward Multiple Disc Clutch)	Brake Band & Multiple Disc Clutch (Atm) ([03.2017 - ] UB80E (1703- ))
35635-33200	Flange, Forward Clutch	Brake Band & Multiple Disc Clutch (Atm) ([03.2017 - ] UB80E (1703- ))
35635-33210	Flange, Forward Clutch	Brake Band & Multiple Disc Clutch (Atm) ([03.2017 - ] UB80E (1703- ))
35635-33220	Flange, Forward Clutch	Brake Band & Multiple Disc Clutch (Atm) ([03.2017 - ] UB80E (1703- ))
35635-33230	Flange, Forward Clutch	Brake Band & Multiple Disc Clutch (Atm) ([03.2017 - ] UB80E (1703- ))
35635-33240	Flange, Forward Clutch	Brake Band & Multiple Disc Clutch (Atm) ([03.2017 - ] UB80E (1703- ))
35635-33250	Flange, Forward Clutch	Brake Band & Multiple Disc Clutch (Atm) ([03.2017 - ] UB80E (1703- ))
35635-33260	Flange, Forward Clutch	Brake Band & Multiple Disc Clutch (Atm) ([03.2017 - ] UB80E (1703- ))
35647-33050	Plate, Clutch, No.2	Brake Band & Multiple Disc Clutch (Atm) ([03.2017 - ] UB80E (1703- ))
35652-33020	Piston, C-2 Clutch	Brake Band & Multiple Disc Clutch (Atm) ([03.2017 - ] UB80E (1703- ))
35653-33020	Ring, Direct Clutch Drum Oil Seal	Brake Band & Multiple Disc Clutch (Atm) ([03.2017 - ] UB80E (1703- ))
35667-33040	Disk, Clutch, No.2	Brake Band & Multiple Disc Clutch (Atm) ([03.2017 - ] UB80E (1703- ))
35668-33030	Balancer, Clutch, No.1	Brake Band & Multiple Disc Clutch (Atm) ([03.2017 - ] UB80E (1703- ))
35675-33070	Flange, Direct Clutch	Brake Band & Multiple Disc Clutch (Atm) ([03.2017 - ] UB80E (1703- ))
35675-33080	Flange, Direct Clutch	Brake Band & Multiple Disc Clutch (Atm) ([03.2017 - ] UB80E (1703- ))
35675-33090	Flange, Direct Clutch	Brake Band & Multiple Disc Clutch (Atm) ([03.2017 - ] UB80E (1703- ))
35675-33100	Flange, Direct Clutch	Brake Band & Multiple Disc Clutch (Atm) ([03.2017 - ] UB80E (1703- ))
35675-33110	Flange, Direct Clutch	Brake Band & Multiple Disc Clutch (Atm) ([03.2017 - ] UB80E (1703- ))
35675-33120	Flange, Direct Clutch	Brake Band & Multiple Disc Clutch (Atm) ([03.2017 - ] UB80E (1703- ))
35675-33130	Flange, Direct Clutch	Brake Band & Multiple Disc Clutch (Atm) ([03.2017 - ] UB80E (1703- ))
35675-33140	Flange, Direct Clutch	Brake Band & Multiple Disc Clutch (Atm) ([03.2017 - ] UB80E (1703- ))
35675-33150	Flange, Direct Clutch	Brake Band & Multiple Disc Clutch (Atm) ([03.2017 - ] UB80E (1703- ))
35675-33160	Flange, Direct Clutch	Brake Band & Multiple Disc Clutch (Atm) ([03.2017 - ] UB80E (1703- ))
35675-33170	Flange, Direct Clutch	Brake Band & Multiple Disc Clutch (Atm) ([03.2017 - ] UB80E (1703- ))
35675-33180	Flange, Direct Clutch	Brake Band & Multiple Disc Clutch (Atm) ([03.2017 - ] UB80E (1703- ))
35675-33190	Flange, Direct Clutch	Brake Band & Multiple Disc Clutch (Atm) ([03.2017 - ] UB80E (1703- ))
35675-33200	Flange, Direct Clutch	Brake Band & Multiple Disc Clutch (Atm) ([03.2017 - ] UB80E (1703- ))
35698-33010	Balancer, C-2 Clutch	Brake Band & Multiple Disc Clutch (Atm) ([03.2017 - ] UB80E (1703- ))
35708-33060	Shaft Sub-Assy, Intermediate	Brake Band & Multiple Disc Clutch (Atm) ([03.2017 - ] UB80E (1703- ))
35708-33070	Shaft Sub-Assy, Intermediate	Brake Band & Multiple Disc Clutch (Atm) ([03.2017 - ] UB80E (1703- ))
35786-33020	Race, Thrust Bearing, No.1	Brake Band & Multiple Disc Clutch (Atm) ([03.2017 - ] UB80E (1703- ))
35787-33030	Race, Thrust Bearing, No.2	Brake Band & Multiple Disc Clutch (Atm) ([03.2017 - ] UB80E (1703- ))
90301-45007	Ring, O (For Intermediate Shaft)	Brake Band & Multiple Disc Clutch (Atm) ([03.2017 - ] UB80E (1703- ))
90301-45008	Ring, O (For Intermediate Shaft)	Brake Band & Multiple Disc Clutch (Atm) ([03.2017 - ] UB80E (1703- ))
90301-99219	Ring, O(For C-1 Drum)	Brake Band & Multiple Disc Clutch (Atm) ([03.2017 - ] UB80E (1703- ))
90302-40001	Ring, O(For C-1 Drum)	Brake Band & Multiple Disc Clutch (Atm) ([03.2017 - ] UB80E (1703- ))
90364-13010	Bearing, Needle Roller	Brake Band & Multiple Disc Clutch (Atm) ([03.2017 - ] UB80E (1703- ))
90364-23006	Bearing, Needle Roller	Brake Band & Multiple Disc Clutch (Atm) ([03.2017 - ] UB80E (1703- ))
90374-47005	Bearing, Thrust Needle Roller	Brake Band & Multiple Disc Clutch (Atm) ([03.2017 - ] UB80E (1703- ))
90520-44043	Ring, Shaft Snap (For Forward Clutch Piston)	Brake Band & Multiple Disc Clutch (Atm) ([03.2017 - ] UB80E (1703- ))
90520-45038	Ring, Snap(For Clutch Balancer)	Brake Band & Multiple Disc Clutch (Atm) ([03.2017 - ] UB80E (1703- ))
90521-99194	Ring Snap (For Foward Clutch Flange)	Brake Band & Multiple Disc Clutch (Atm) ([03.2017 - ] UB80E (1703- ))
90521-99195	Ring, Hole Snap (For Forward Clutch Flange)	Brake Band & Multiple Disc Clutch (Atm) ([03.2017 - ] UB80E (1703- ))
