AXP41

Toyota VIOS · 2002 · 3,063 parts · 179 categories

3,063 items

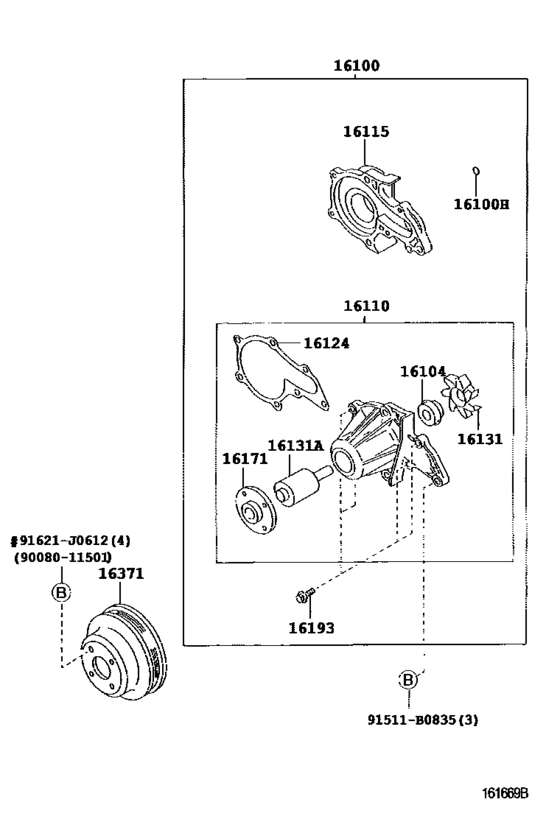

Water Pump ([10.2002 - ] (0210- )5AFE,8AFE) 22

#	OEM	Part name
16100	16100-09381	Pump Assy, Engine Water
16100	16100-19295	Pump Assy, Engine Water
16100	16100-19355	Pump Assy, Engine Water
16100	16100-19336	Pump Assy, Engine Water
16100	16100-19337	Pump Assy, Engine Water
16100	90301-C0006	Ring, O(For Water Pump)
16100	96761-24035	Ring, O(For Water Pump)
16104	16104-46060	Seal Set, Water Pump
16110	16110-09060	Pump Assy, Water, W/o Coupling
16110	16110-19205	Pump Assy, Water, W/o Coupling
16115	16113-02080	Cover, Water Pump
16115	16113-16070	Cover, Water Pump
16124	16124-15110	Gasket, Water Pump Cover
16131	16131-16090	Rotor, Water Pump
16131	90029-36846	Bearing, Water Pump
16171	16171-10012	Seat, Water Pump Pulley
16193	16193-15011	Bolt, Stud(For Water Pump Cover)
16371	16371-15071	Pulley, Fan
91511	91511-B0835	Bolt(For Cylinder Head Set Sub)
91511	90105-08200	Bolt(For Cylinder Head Set Sub)
91621	91621-J0612	BOLT W-WASHER
9008011501	90080-11501	New Genuine Part

OEM	Part name	Category
16100-09381	Pump Assy, Engine Water	Water Pump ([10.2002 - ] (0210- )5AFE,8AFE)
16100-19295	Pump Assy, Engine Water	Water Pump ([10.2002 - ] (0210- )5AFE,8AFE)
16100-19336	Pump Assy, Engine Water	Water Pump ([10.2002 - ] (0210- )5AFE,8AFE)
16100-19337	Pump Assy, Engine Water	Water Pump ([10.2002 - ] (0210- )5AFE,8AFE)
16100-19355	Pump Assy, Engine Water	Water Pump ([10.2002 - ] (0210- )5AFE,8AFE)
16104-46060	Seal Set, Water Pump	Water Pump ([10.2002 - ] (0210- )5AFE,8AFE)
16110-09060	Pump Assy, Water, W/o Coupling	Water Pump ([10.2002 - ] (0210- )5AFE,8AFE)
16110-19205	Pump Assy, Water, W/o Coupling	Water Pump ([10.2002 - ] (0210- )5AFE,8AFE)
16113-02080	Cover, Water Pump	Water Pump ([10.2002 - ] (0210- )5AFE,8AFE)
16113-16070	Cover, Water Pump	Water Pump ([10.2002 - ] (0210- )5AFE,8AFE)
16124-15110	Gasket, Water Pump Cover	Water Pump ([10.2002 - ] (0210- )5AFE,8AFE)
16131-16090	Rotor, Water Pump	Water Pump ([10.2002 - ] (0210- )5AFE,8AFE)
16171-10012	Seat, Water Pump Pulley	Water Pump ([10.2002 - ] (0210- )5AFE,8AFE)
16193-15011	Bolt, Stud(For Water Pump Cover)	Water Pump ([10.2002 - ] (0210- )5AFE,8AFE)
16371-15071	Pulley, Fan	Water Pump ([10.2002 - ] (0210- )5AFE,8AFE)
90029-36846	Bearing, Water Pump	Water Pump ([10.2002 - ] (0210- )5AFE,8AFE)
90080-11501	New Genuine Part	Water Pump ([10.2002 - ] (0210- )5AFE,8AFE)
90105-08200	Bolt(For Cylinder Head Set Sub)	Water Pump ([10.2002 - ] (0210- )5AFE,8AFE)
90301-C0006	Ring, O(For Water Pump)	Water Pump ([10.2002 - ] (0210- )5AFE,8AFE)
91511-B0835	Bolt(For Cylinder Head Set Sub)	Water Pump ([10.2002 - ] (0210- )5AFE,8AFE)
91621-J0612	BOLT W-WASHER	Water Pump ([10.2002 - ] (0210- )5AFE,8AFE)
96761-24035	Ring, O(For Water Pump)	Water Pump ([10.2002 - ] (0210- )5AFE,8AFE)
