AXP41

Toyota VIOS · 2002 · 3,063 parts · 179 categories
AXP41 ×

← Back to categories

3,063 items

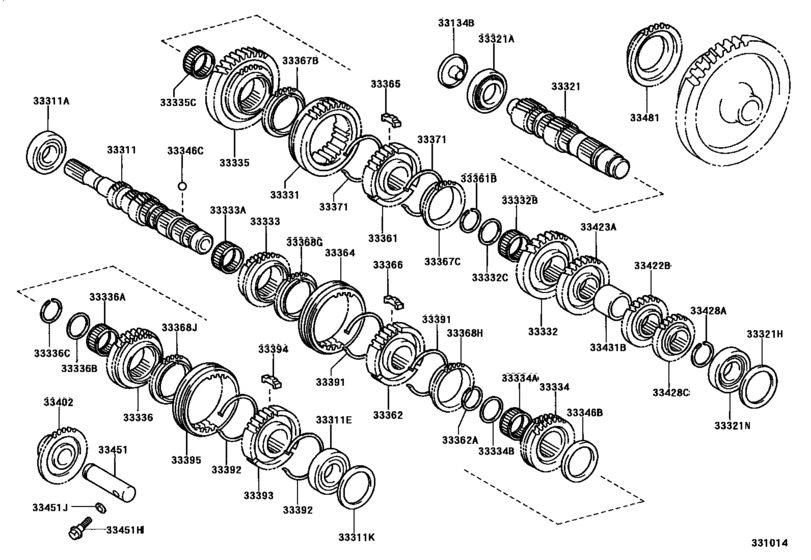

Transmission Gear (Mtm) ([10.2002 - ] C550 (0210- )AXP4#,SCP4#..MTM) 88
#OEMPart name
33134 33134-0D010 Cover, Output Shaft(Mtm)
33311 33311-0D010 Shaft, Input
33311 33311-0D011 Shaft, Input
33311 90363-T0003 Bearing (For Input Shaft Front)
33311 90363-25073 Bearing, Radial Ball (For Input Shaft Rear)
33311 90564-38006 Shim (For Input Shaft Rear Bearing)
33311 90564-38007 Shim (For Input Shaft Rear Bearing)
33311 90564-38008 Shim (For Input Shaft Rear Bearing)
33311 90564-38009 Shim (For Input Shaft Rear Bearing)
33311 90564-38010 Shim (For Input Shaft Rear Bearing)
33311 90564-38011 Shim (For Input Shaft Rear Bearing)
33311 90564-38012 Shim (For Input Shaft Rear Bearing)
33311 90564-38013 Shim (For Input Shaft Rear Bearing)
33311 90564-38014 Shim (For Input Shaft Rear Bearing)
33311 90564-38015 Shim (For Input Shaft Rear Bearing)
33311 90564-38016 Shim (For Input Shaft Rear Bearing)
33311 90564-38017 Shim (For Input Shaft Rear Bearing)
33311 90564-38018 Shim (For Input Shaft Rear Bearing)
33321 33321-0D010 Shaft, Output
33321 90366-T0001 Bearing (For Output Shaft Rear)
33321 90564-38001 Shim (For Output Shaft Rear Bearing)
33321 90564-38002 Shim (For Output Shaft Rear Bearing)
33321 90564-38003 Shim (For Output Shaft Rear Bearing)
33321 90564-38004 Shim (For Output Shaft Rear Bearing)
33321 90564-38005 Shim (For Output Shaft Rear Bearing)
33321 90366-T0004 Bearing (For Output Shaft Front)
33331 33331-0D010 Gear, Reverse
33331 33331-0D011 Gear, Reverse
33332 33033-0D010 Gear, 2Nd
33332 90364-34009 Bearing, Needle Roller (For 2Nd Gear)
33332 90560-34005 Spacer (For 2Nd Gear Bearing)
33333 33034-0D010 Gear, 3Rd
33333 90364-34008 Bearing, Needle Roller (For 3Rd Gear)
33334 33035-0D010 Gear, 4Th
33335 33032-0D010 Gear, 1St
33335 90364-34007 Bearing, Needle Roller(For 1St Gear)
33336 33036-0D010 Gear, 5Th
33336 90364-T0001 Bearing, Needle Roller (For 5Th Gear)
33336 90560-31003 Spacer (For 5Th Gear Bearing)
33336 90520-29049 Ring, Shaft Snap (For 5Th Gear)
33336 90520-29050 Ring, Shaft Snap (For 5Th Gear)
33336 90520-29052 Ring, Shaft Snap (For 5Th Gear)
33336 90520-29053 Ring, Shaft Snap (For 5Th Gear)
33336 90520-29054 Ring, Shaft Snap (For 5Th Gear)
33336 90520-29055 Ring, Shaft Snap (For 5Th Gear)
33346 33346-0D010 Washer, 5Th Gear Thrust
33346 90360-05012 Ball, Reverse Shift Restrict
33361 33361-0D010 Hub, Transmission Clutch, No.1
33361 90520-32014 Ring, Shaft Snap (For Clutch Hub No.1)
33361 90520-32015 Ring, Shaft Snap (For Clutch Hub No.1)
33361 90520-32016 Ring, Shaft Snap (For Clutch Hub No.1)
33361 90520-32017 Ring, Shaft Snap (For Clutch Hub No.1)
33361 90520-32018 Ring, Shaft Snap (For Clutch Hub No.1)
33361 90520-32019 Ring, Shaft Snap (For Clutch Hub No.1)
33362 33362-0D010 Hub, Transmission Clutch, No.2
33364 33364-0D010 Sleeve, Transmission Hub, No.2
33365 33365-52010 Key, Synchromesh Shifting, No.1
33366 33366-52010 Key, Synchromesh Shifting, No.2
33367 33367-52010 Ring, Synchronizer (For 1St Gear)
33367 33367-52020 Ring, Synchronizer (For 2Nd Gear)
33368 33368-52010 Ring, Synchronizer (For 3Rd Gear)
33368 33368-52020 Ring, Synchronizer (For 4Th Gear)
33368 33369-52010 Ring, Synchronizer (For 5Th Gear)
33371 33371-52010 Spring, Synchromesh Shifting Key, No.1
33393 33393-0D010 Hub, Transmission Clutch, No.3
33394 33394-52010 Key, Synchromesh Shifting, No.3
33395 33395-0D010 Sleeve, Transmission Hub, No.3
33402 33402-0D010 Gear Sub-Assy, Reverse Idler
33402 33402-0D011 Gear Sub-Assy, Reverse Idler
33422 33422-0D010 Gear, 4Th Driven
33423 33423-0D010 Gear, 3Rd Driven
33428 90520-27070 Ring, Shaft Snap (For Counter 5Th Gear)
33428 90520-27071 Ring, Shaft Snap (For Counter 5Th Gear)
33428 90520-27072 Ring, Shaft Snap (For Counter 5Th Gear)
33428 90520-27073 Ring, Shaft Snap (For Counter 5Th Gear)
33428 90520-27074 Ring, Shaft Snap (For Counter 5Th Gear)
33428 90520-27075 Ring, Shaft Snap (For Counter 5Th Gear)
33428 90520-27076 Ring, Shaft Snap (For Counter 5Th Gear)
33428 90520-27077 Ring, Shaft Snap (For Counter 5Th Gear)
33428 90520-27078 Ring, Shaft Snap (For Counter 5Th Gear)
33428 33428-0D010 Gear, 5Th Driven
33431 33431-0D010 Spacer, Output Shaft
33451 33451-0D010 Shaft, Reverse Idler Gear
33451 90109-08097 Bolt (For Reverse Idler Gear Shaft)
33451 90430-08010 Gasket (For Reverse Idler Gear Shaft)
33481 33481-0D010 Gear, Speedometer Drive (Mtm)
33481 33481-0D020 Gear, Speedometer Drive (Mtm)
33481 33481-0D030 Gear, Speedometer Drive (Mtm)
