AXP41

Toyota VIOS · 2002 · 3,063 parts · 179 categories

3,063 items

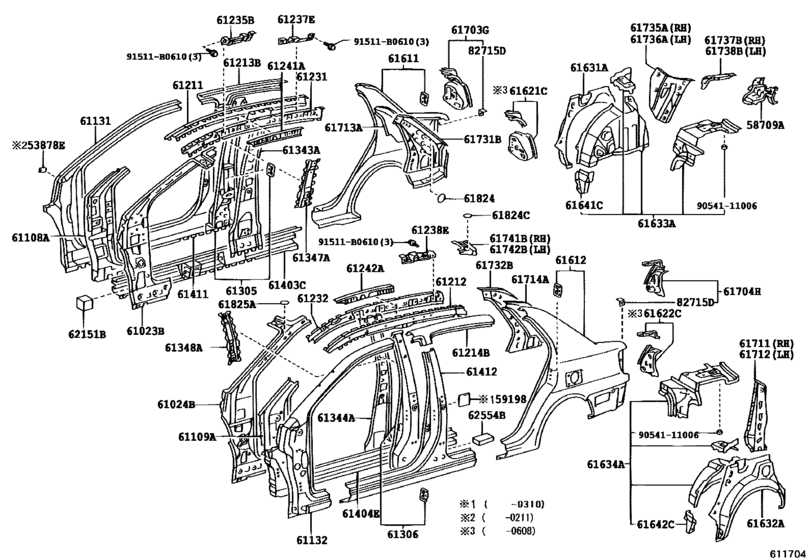

Side Member ([10.2002 - ] (0210- )AXP4#,SCP4#) 61

#	OEM	Part name
53878	53878-44040	Spacer, Front Fender
58709	58709-0D010	Carrier Sub-Assy, Jack
59198	59198-12010	Seal, Noise Shutter
61023	61023-0D020	Pillar Sub-Assy, Front Body, Inner Rh
61024	61024-0D020	Pillar Sub-Assy, Front Body, Inner Lh
61108	61108-0D020	Reinforce Sub-Assy, Front Body Pillar, Lower Rh
61109	61109-0D020	Reinforce Sub-Assy, Front Body Pillar, Lower Lh
61131	61131-0D020	Pillar, Front Body, Upper Outer Rh
61132	61132-0D020	Pillar, Front Body, Upper Outer Lh
61211	61211-0D030	Rail, Roof Side, Outer Rh
61212	61212-0D030	Rail, Roof Side, Outer Lh
61213	61213-0D020	Rail, Roof Side, Outer No.2 Rh
61214	61214-0D020	Rail, Roof Side, Outer No.2 Lh
61231	61231-0D090	Rail, Roof Side, Inner Rh
61232	61232-0D090	Rail, Roof Side, Inner Lh
61241	61241-0D010	Gusset, Roof Side Rail, Rear Rh
61242	61242-0D010	Gusset, Roof Side Rail, Rear Lh
61305	61305-0D900	Reinforce Sub-Assy, Center Body Pillar, Lower Rh
61306	61306-0D900	Reinforce Sub-Assy, Center Body Pillar, Lower Lh
61343	61343-0D903	Pillar, Center Body, Inner Rh
61344	61344-0D903	Pillar, Center Body, Inner Lh
61347	61347-0D010	Reinforcement, Belt Anchor To Center Pillar, Rh
61348	61348-0D010	Reinforcement, Belt Anchor To Center Pillar, Lh
61403	61403-0D030	Reinforce Sub-Assy, Rocker, Outer Rh
61404	61404-0D030	Reinforce Sub-Assy, Rocker, Outer Lh
61411	61411-0D030	Panel, Rocker, Outer Rh
61412	61412-0D030	Panel, Rocker, Outer Lh
61611	61601-0D020	Panel, Quarter, Rh
61612	61602-0D030	Panel, Quarter, Lh
61621	61621-0D902	Trough, Luggage Compartment Opening, Rh
61621	61703-0D010	Panel Sub-Assy, Quarter, Inner Rh
61622	61622-0D902	Trough, Luggage Compartment Opening, Lh
61622	61704-0D030	Panel Sub-Assy, Quarter, Inner Lh
61631	61631-0D020	Panel, Quarter Wheel House, Outer Rh
61632	61632-0D020	Panel, Quarter Wheel House, Outer Lh
61633	61633-0D900	Panel, Quarter Wheel House, Inner Rh
61633	61633-0D901	Panel, Quarter Wheel House, Inner Rh
61634	61634-0D900	Panel, Quarter Wheel House, Inner Lh
61634	61634-0D901	Panel, Quarter Wheel House, Inner Lh
61641	61641-0D020	Gusset, Quarter Wheel House, Front Rh
61642	61642-0D020	Gusset, Quarter Wheel House, Front Lh
61711	61711-0D010	Panel, Roof Side, Outer Rh
61712	61712-0D010	Panel, Roof Side, Outer Lh
61713	61713-0D010	Extension, Roof Side, Outer Rh
61714	61714-0D010	Extension, Roof Side, Outer Lh
61731	61731-0D010	Panel, Roof Side, Inner Rh
61732	61732-0D010	Panel, Roof Side, Inner Lh
61735	61735-0D040	Panel, Roof Side, Inner Rear Rh
61736	61736-0D050	Panel, Roof Side, Inner Rear Lh
61737	61737-0D010	Panel, Roof Side, Inner Lower Rh
61738	61738-0D010	Panel, Roof Side, Inner Lower Lh
61741	61741-0D010	Reinforcement, Back Window Opening, Rh
61742	61742-0D010	Reinforcement, Back Window Opening, Lh
61824	61824-52030	Plate, Noise Control, No.1
61824	61824-52010	Plate, Noise Control, No.1
62151	62151-52010	Pad, Cowl Side Silencer
62554	62554-44010	Pad, Pillar, No.4
62554	61824-12130	Seal, Center Body Pillar, Inner No.1
82715	82715-33250	Bracket, Wiring Harness Clamp
91511	91511-B0610	BOLT FLANGE
9054111006	90541-11006	Cushion, Luggage Door Hinge

OEM	Part name	Category
53878-44040	Spacer, Front Fender	Side Member ([10.2002 - ] (0210- )AXP4#,SCP4#)
58709-0D010	Carrier Sub-Assy, Jack	Side Member ([10.2002 - ] (0210- )AXP4#,SCP4#)
59198-12010	Seal, Noise Shutter	Side Member ([10.2002 - ] (0210- )AXP4#,SCP4#)
61023-0D020	Pillar Sub-Assy, Front Body, Inner Rh	Side Member ([10.2002 - ] (0210- )AXP4#,SCP4#)
61024-0D020	Pillar Sub-Assy, Front Body, Inner Lh	Side Member ([10.2002 - ] (0210- )AXP4#,SCP4#)
61108-0D020	Reinforce Sub-Assy, Front Body Pillar, Lower Rh	Side Member ([10.2002 - ] (0210- )AXP4#,SCP4#)
61109-0D020	Reinforce Sub-Assy, Front Body Pillar, Lower Lh	Side Member ([10.2002 - ] (0210- )AXP4#,SCP4#)
61131-0D020	Pillar, Front Body, Upper Outer Rh	Side Member ([10.2002 - ] (0210- )AXP4#,SCP4#)
61132-0D020	Pillar, Front Body, Upper Outer Lh	Side Member ([10.2002 - ] (0210- )AXP4#,SCP4#)
61211-0D030	Rail, Roof Side, Outer Rh	Side Member ([10.2002 - ] (0210- )AXP4#,SCP4#)
61212-0D030	Rail, Roof Side, Outer Lh	Side Member ([10.2002 - ] (0210- )AXP4#,SCP4#)
61213-0D020	Rail, Roof Side, Outer No.2 Rh	Side Member ([10.2002 - ] (0210- )AXP4#,SCP4#)
61214-0D020	Rail, Roof Side, Outer No.2 Lh	Side Member ([10.2002 - ] (0210- )AXP4#,SCP4#)
61231-0D090	Rail, Roof Side, Inner Rh	Side Member ([10.2002 - ] (0210- )AXP4#,SCP4#)
61232-0D090	Rail, Roof Side, Inner Lh	Side Member ([10.2002 - ] (0210- )AXP4#,SCP4#)
61241-0D010	Gusset, Roof Side Rail, Rear Rh	Side Member ([10.2002 - ] (0210- )AXP4#,SCP4#)
61242-0D010	Gusset, Roof Side Rail, Rear Lh	Side Member ([10.2002 - ] (0210- )AXP4#,SCP4#)
61305-0D900	Reinforce Sub-Assy, Center Body Pillar, Lower Rh	Side Member ([10.2002 - ] (0210- )AXP4#,SCP4#)
61306-0D900	Reinforce Sub-Assy, Center Body Pillar, Lower Lh	Side Member ([10.2002 - ] (0210- )AXP4#,SCP4#)
61343-0D903	Pillar, Center Body, Inner Rh	Side Member ([10.2002 - ] (0210- )AXP4#,SCP4#)
61344-0D903	Pillar, Center Body, Inner Lh	Side Member ([10.2002 - ] (0210- )AXP4#,SCP4#)
61347-0D010	Reinforcement, Belt Anchor To Center Pillar, Rh	Side Member ([10.2002 - ] (0210- )AXP4#,SCP4#)
61348-0D010	Reinforcement, Belt Anchor To Center Pillar, Lh	Side Member ([10.2002 - ] (0210- )AXP4#,SCP4#)
61403-0D030	Reinforce Sub-Assy, Rocker, Outer Rh	Side Member ([10.2002 - ] (0210- )AXP4#,SCP4#)
61404-0D030	Reinforce Sub-Assy, Rocker, Outer Lh	Side Member ([10.2002 - ] (0210- )AXP4#,SCP4#)
61411-0D030	Panel, Rocker, Outer Rh	Side Member ([10.2002 - ] (0210- )AXP4#,SCP4#)
61412-0D030	Panel, Rocker, Outer Lh	Side Member ([10.2002 - ] (0210- )AXP4#,SCP4#)
61601-0D020	Panel, Quarter, Rh	Side Member ([10.2002 - ] (0210- )AXP4#,SCP4#)
61602-0D030	Panel, Quarter, Lh	Side Member ([10.2002 - ] (0210- )AXP4#,SCP4#)
61621-0D902	Trough, Luggage Compartment Opening, Rh	Side Member ([10.2002 - ] (0210- )AXP4#,SCP4#)
61622-0D902	Trough, Luggage Compartment Opening, Lh	Side Member ([10.2002 - ] (0210- )AXP4#,SCP4#)
61631-0D020	Panel, Quarter Wheel House, Outer Rh	Side Member ([10.2002 - ] (0210- )AXP4#,SCP4#)
61632-0D020	Panel, Quarter Wheel House, Outer Lh	Side Member ([10.2002 - ] (0210- )AXP4#,SCP4#)
61633-0D900	Panel, Quarter Wheel House, Inner Rh	Side Member ([10.2002 - ] (0210- )AXP4#,SCP4#)
61633-0D901	Panel, Quarter Wheel House, Inner Rh	Side Member ([10.2002 - ] (0210- )AXP4#,SCP4#)
61634-0D900	Panel, Quarter Wheel House, Inner Lh	Side Member ([10.2002 - ] (0210- )AXP4#,SCP4#)
61634-0D901	Panel, Quarter Wheel House, Inner Lh	Side Member ([10.2002 - ] (0210- )AXP4#,SCP4#)
61641-0D020	Gusset, Quarter Wheel House, Front Rh	Side Member ([10.2002 - ] (0210- )AXP4#,SCP4#)
61642-0D020	Gusset, Quarter Wheel House, Front Lh	Side Member ([10.2002 - ] (0210- )AXP4#,SCP4#)
61703-0D010	Panel Sub-Assy, Quarter, Inner Rh	Side Member ([10.2002 - ] (0210- )AXP4#,SCP4#)
61704-0D030	Panel Sub-Assy, Quarter, Inner Lh	Side Member ([10.2002 - ] (0210- )AXP4#,SCP4#)
61711-0D010	Panel, Roof Side, Outer Rh	Side Member ([10.2002 - ] (0210- )AXP4#,SCP4#)
61712-0D010	Panel, Roof Side, Outer Lh	Side Member ([10.2002 - ] (0210- )AXP4#,SCP4#)
61713-0D010	Extension, Roof Side, Outer Rh	Side Member ([10.2002 - ] (0210- )AXP4#,SCP4#)
61714-0D010	Extension, Roof Side, Outer Lh	Side Member ([10.2002 - ] (0210- )AXP4#,SCP4#)
61731-0D010	Panel, Roof Side, Inner Rh	Side Member ([10.2002 - ] (0210- )AXP4#,SCP4#)
61732-0D010	Panel, Roof Side, Inner Lh	Side Member ([10.2002 - ] (0210- )AXP4#,SCP4#)
61735-0D040	Panel, Roof Side, Inner Rear Rh	Side Member ([10.2002 - ] (0210- )AXP4#,SCP4#)
61736-0D050	Panel, Roof Side, Inner Rear Lh	Side Member ([10.2002 - ] (0210- )AXP4#,SCP4#)
61737-0D010	Panel, Roof Side, Inner Lower Rh	Side Member ([10.2002 - ] (0210- )AXP4#,SCP4#)
61738-0D010	Panel, Roof Side, Inner Lower Lh	Side Member ([10.2002 - ] (0210- )AXP4#,SCP4#)
61741-0D010	Reinforcement, Back Window Opening, Rh	Side Member ([10.2002 - ] (0210- )AXP4#,SCP4#)
61742-0D010	Reinforcement, Back Window Opening, Lh	Side Member ([10.2002 - ] (0210- )AXP4#,SCP4#)
61824-12130	Seal, Center Body Pillar, Inner No.1	Side Member ([10.2002 - ] (0210- )AXP4#,SCP4#)
61824-52010	Plate, Noise Control, No.1	Side Member ([10.2002 - ] (0210- )AXP4#,SCP4#)
61824-52030	Plate, Noise Control, No.1	Side Member ([10.2002 - ] (0210- )AXP4#,SCP4#)
62151-52010	Pad, Cowl Side Silencer	Side Member ([10.2002 - ] (0210- )AXP4#,SCP4#)
62554-44010	Pad, Pillar, No.4	Side Member ([10.2002 - ] (0210- )AXP4#,SCP4#)
82715-33250	Bracket, Wiring Harness Clamp	Side Member ([10.2002 - ] (0210- )AXP4#,SCP4#)
90541-11006	Cushion, Luggage Door Hinge	Side Member ([10.2002 - ] (0210- )AXP4#,SCP4#)
91511-B0610	BOLT FLANGE	Side Member ([10.2002 - ] (0210- )AXP4#,SCP4#)
