Search › Model › AXP41

AXP41

Toyota VIOS · 2002 · 3,063 parts · 179 categories

3,063 items

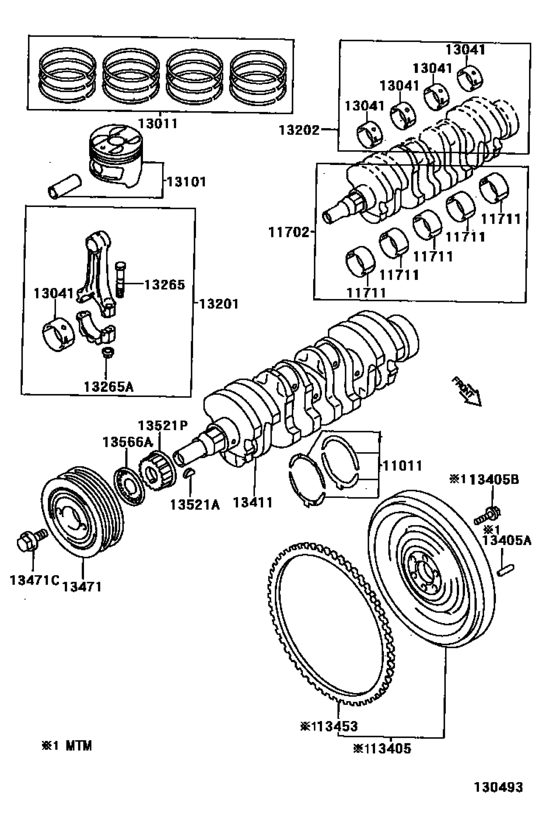

Crankshaft & Piston ([10.2002 - ] (0210- )5AFE,8AFE) 45

#	OEM	Part name
11011	11011-15020	Washer Set, Crankshaft Thrust
11011	11011-15021	Washer Set, Crankshaft Thrust
11702	11704-16010	Bearing Set, Crankshaft
11711	11701-16010-01	Bearing, Crankshaft
11711	11701-16010-02	Bearing, Crankshaft
11711	11701-16010-03	Bearing, Crankshaft
11711	11701-16010-04	Bearing, Crankshaft
11711	11701-16010-05	Bearing, Crankshaft
13011	13011-02050	Ring Set, Piston
13011	13011-15120	Ring Set, Piston
13011	13013-15120	Ring Set, Piston
13041	13041-15030-01	Bearing, Connecting Rod
13041	13041-15031-01	Bearing, Connecting Rod
13041	13041-15030-02	Bearing, Connecting Rod
13041	13041-15031-02	Bearing, Connecting Rod
13041	13041-15030-03	Bearing, Connecting Rod
13041	13041-15031-03	Bearing, Connecting Rod
13101	13101-02120-01	Piston Sub-Assy, W/pin
13101	13101-02120-02	Piston Sub-Assy, W/pin
13101	13101-02120-03	Piston Sub-Assy, W/pin
13101	13101-14050-01	Piston Sub-Assy, W/pin
13101	13101-14050-02	Piston Sub-Assy, W/pin
13101	13101-14050-03	Piston Sub-Assy, W/pin
13101	13103-14050	Piston Sub-Assy, W/pin
13201	13201-09100	Rod Sub-Assy, Connecting
13201	13201-09461	Rod Sub-Assy, Connecting
13201	13201-19135	Rod Sub-Assy, Connecting
13201	13201-19176	Rod Sub-Assy, Connecting
13202	13204-15030	Bearing Set, Connecting Rod (0.25)
13202	13204-15031	Bearing Set, Connecting Rod (0.25)
13265	13265-15030	Bolt, Connecting Rod
13265	90179-09008	Nut, Hexagon(For Connecting Rod Bolt)
13405	13405-02060	Flywheel Sub-Assy
13405	90250-08054	Pin, Straight
13405	90105-10441	Bolt, Flywheel Setting
13411	13411-02060	Crankshaft
13453	13453-02040	Gear, Flywheel Ring
13471	13470-02030	Pulley, Crankshaft
13471	13470-16100	Pulley, Crankshaft
13471	90119-12314	Bolt(For Crankshaft Pulley Set)
13521	90280-05005	Key(For Oil Pump Drive Spline)
13521	13521-02080	Pulley, Crankshaft Timing
13521	13521-16050	Pulley, Crankshaft Timing
13566	13566-02030	Guide, Timing Belt
13566	13566-15020	Guide, Timing Belt

OEM	Part name	Category
11011-15020	Washer Set, Crankshaft Thrust	Crankshaft & Piston ([10.2002 - ] (0210- )5AFE,8AFE)
11011-15021	Washer Set, Crankshaft Thrust	Crankshaft & Piston ([10.2002 - ] (0210- )5AFE,8AFE)
11701-16010-01	Bearing, Crankshaft	Crankshaft & Piston ([10.2002 - ] (0210- )5AFE,8AFE)
11701-16010-02	Bearing, Crankshaft	Crankshaft & Piston ([10.2002 - ] (0210- )5AFE,8AFE)
11701-16010-03	Bearing, Crankshaft	Crankshaft & Piston ([10.2002 - ] (0210- )5AFE,8AFE)
11701-16010-04	Bearing, Crankshaft	Crankshaft & Piston ([10.2002 - ] (0210- )5AFE,8AFE)
11701-16010-05	Bearing, Crankshaft	Crankshaft & Piston ([10.2002 - ] (0210- )5AFE,8AFE)
11704-16010	Bearing Set, Crankshaft	Crankshaft & Piston ([10.2002 - ] (0210- )5AFE,8AFE)
13011-02050	Ring Set, Piston	Crankshaft & Piston ([10.2002 - ] (0210- )5AFE,8AFE)
13011-15120	Ring Set, Piston	Crankshaft & Piston ([10.2002 - ] (0210- )5AFE,8AFE)
13013-15120	Ring Set, Piston	Crankshaft & Piston ([10.2002 - ] (0210- )5AFE,8AFE)
13041-15030-01	Bearing, Connecting Rod	Crankshaft & Piston ([10.2002 - ] (0210- )5AFE,8AFE)
13041-15030-02	Bearing, Connecting Rod	Crankshaft & Piston ([10.2002 - ] (0210- )5AFE,8AFE)
13041-15030-03	Bearing, Connecting Rod	Crankshaft & Piston ([10.2002 - ] (0210- )5AFE,8AFE)
13041-15031-01	Bearing, Connecting Rod	Crankshaft & Piston ([10.2002 - ] (0210- )5AFE,8AFE)
13041-15031-02	Bearing, Connecting Rod	Crankshaft & Piston ([10.2002 - ] (0210- )5AFE,8AFE)
13041-15031-03	Bearing, Connecting Rod	Crankshaft & Piston ([10.2002 - ] (0210- )5AFE,8AFE)
13101-02120-01	Piston Sub-Assy, W/pin	Crankshaft & Piston ([10.2002 - ] (0210- )5AFE,8AFE)
13101-02120-02	Piston Sub-Assy, W/pin	Crankshaft & Piston ([10.2002 - ] (0210- )5AFE,8AFE)
13101-02120-03	Piston Sub-Assy, W/pin	Crankshaft & Piston ([10.2002 - ] (0210- )5AFE,8AFE)
13101-14050-01	Piston Sub-Assy, W/pin	Crankshaft & Piston ([10.2002 - ] (0210- )5AFE,8AFE)
13101-14050-02	Piston Sub-Assy, W/pin	Crankshaft & Piston ([10.2002 - ] (0210- )5AFE,8AFE)
13101-14050-03	Piston Sub-Assy, W/pin	Crankshaft & Piston ([10.2002 - ] (0210- )5AFE,8AFE)
13103-14050	Piston Sub-Assy, W/pin	Crankshaft & Piston ([10.2002 - ] (0210- )5AFE,8AFE)
13201-09100	Rod Sub-Assy, Connecting	Crankshaft & Piston ([10.2002 - ] (0210- )5AFE,8AFE)
13201-09461	Rod Sub-Assy, Connecting	Crankshaft & Piston ([10.2002 - ] (0210- )5AFE,8AFE)
13201-19135	Rod Sub-Assy, Connecting	Crankshaft & Piston ([10.2002 - ] (0210- )5AFE,8AFE)
13201-19176	Rod Sub-Assy, Connecting	Crankshaft & Piston ([10.2002 - ] (0210- )5AFE,8AFE)
13204-15030	Bearing Set, Connecting Rod (0.25)	Crankshaft & Piston ([10.2002 - ] (0210- )5AFE,8AFE)
13204-15031	Bearing Set, Connecting Rod (0.25)	Crankshaft & Piston ([10.2002 - ] (0210- )5AFE,8AFE)
13265-15030	Bolt, Connecting Rod	Crankshaft & Piston ([10.2002 - ] (0210- )5AFE,8AFE)
13405-02060	Flywheel Sub-Assy	Crankshaft & Piston ([10.2002 - ] (0210- )5AFE,8AFE)
13411-02060	Crankshaft	Crankshaft & Piston ([10.2002 - ] (0210- )5AFE,8AFE)
13453-02040	Gear, Flywheel Ring	Crankshaft & Piston ([10.2002 - ] (0210- )5AFE,8AFE)
13470-02030	Pulley, Crankshaft	Crankshaft & Piston ([10.2002 - ] (0210- )5AFE,8AFE)
13470-16100	Pulley, Crankshaft	Crankshaft & Piston ([10.2002 - ] (0210- )5AFE,8AFE)
13521-02080	Pulley, Crankshaft Timing	Crankshaft & Piston ([10.2002 - ] (0210- )5AFE,8AFE)
13521-16050	Pulley, Crankshaft Timing	Crankshaft & Piston ([10.2002 - ] (0210- )5AFE,8AFE)
13566-02030	Guide, Timing Belt	Crankshaft & Piston ([10.2002 - ] (0210- )5AFE,8AFE)
13566-15020	Guide, Timing Belt	Crankshaft & Piston ([10.2002 - ] (0210- )5AFE,8AFE)
90105-10441	Bolt, Flywheel Setting	Crankshaft & Piston ([10.2002 - ] (0210- )5AFE,8AFE)
90119-12314	Bolt(For Crankshaft Pulley Set)	Crankshaft & Piston ([10.2002 - ] (0210- )5AFE,8AFE)
90179-09008	Nut, Hexagon(For Connecting Rod Bolt)	Crankshaft & Piston ([10.2002 - ] (0210- )5AFE,8AFE)
90250-08054	Pin, Straight	Crankshaft & Piston ([10.2002 - ] (0210- )5AFE,8AFE)
90280-05005	Key(For Oil Pump Drive Spline)	Crankshaft & Piston ([10.2002 - ] (0210- )5AFE,8AFE)
