AWS215

Toyota CROWN-MAJESTA · 2014 · 3,976 parts · 219 categories

← Back to categories

3,976 items

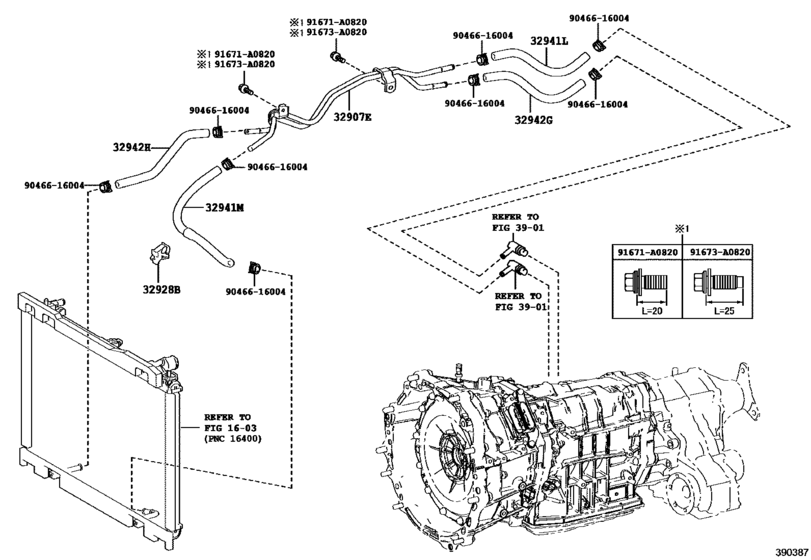

Oil Cooler & Tube (Hv Or Fcv) ([07.2014 - ] (1407- )AWS211,215) 9

#	OEM	Part name
32907	32907-30120	Tube Sub-Assy, Oil Cooler W/o Hose
32928	32928-30120	Clamp, Flexible Hose, No.1
32941	32941-30340	Hose, Oil Cooler Inlet, No.1
32941	32941-30360	Hose, Oil Cooler Inlet, No.2
32942	32942-30230	Hose, Oil Cooler Outlet, No.1
32942	32942-30250	Hose, Oil Cooler Outlet, No.2
91671	91671-A0820	New Genuine Part
91673	91673-A0820	BOLT FLANGE
9046616004	90466-16004	Clip(For Ventilation Hose No.2)

OEM	Part name	Category
32907-30120	Tube Sub-Assy, Oil Cooler W/o Hose	Oil Cooler & Tube (Hv Or Fcv) ([07.2014 - ] (1407- )AWS211,215)
32928-30120	Clamp, Flexible Hose, No.1	Oil Cooler & Tube (Hv Or Fcv) ([07.2014 - ] (1407- )AWS211,215)
32941-30340	Hose, Oil Cooler Inlet, No.1	Oil Cooler & Tube (Hv Or Fcv) ([07.2014 - ] (1407- )AWS211,215)
32941-30360	Hose, Oil Cooler Inlet, No.2	Oil Cooler & Tube (Hv Or Fcv) ([07.2014 - ] (1407- )AWS211,215)
32942-30230	Hose, Oil Cooler Outlet, No.1	Oil Cooler & Tube (Hv Or Fcv) ([07.2014 - ] (1407- )AWS211,215)
32942-30250	Hose, Oil Cooler Outlet, No.2	Oil Cooler & Tube (Hv Or Fcv) ([07.2014 - ] (1407- )AWS211,215)
90466-16004	Clip(For Ventilation Hose No.2)	Oil Cooler & Tube (Hv Or Fcv) ([07.2014 - ] (1407- )AWS211,215)
91671-A0820	New Genuine Part	Oil Cooler & Tube (Hv Or Fcv) ([07.2014 - ] (1407- )AWS211,215)
91673-A0820	BOLT FLANGE	Oil Cooler & Tube (Hv Or Fcv) ([07.2014 - ] (1407- )AWS211,215)
