AWS215

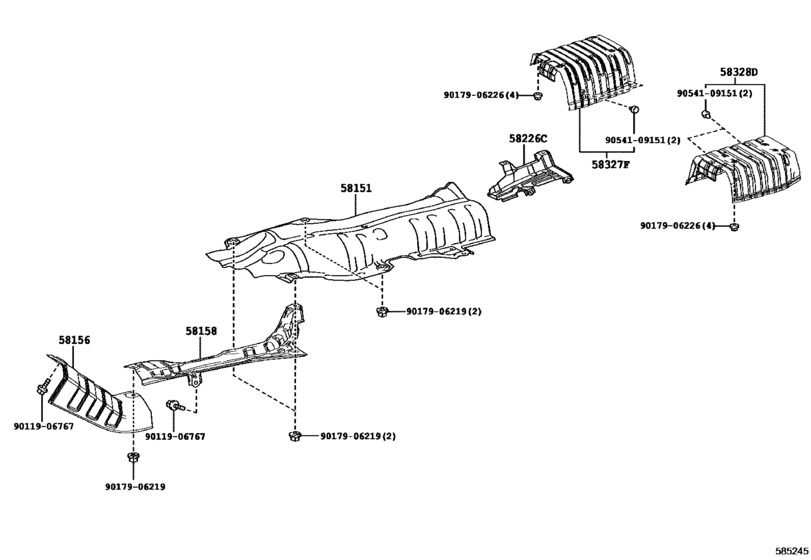

Floor Insulator ([07.2014 - ] (1407- )AWS211,215) 11
| # | OEM | Part name |
|---|---|---|
| 58151 | 58151-30220 | Insulator, Front Floor Heat, No.1 |
| 58156 | 58156-30130 | Insulator, Front Floor Heat, No.4 |
| 58158 | 58158-30100 | Insulator, Front Floor Heat, No.6 |
| 58226 | 58226-53010 | Plate, Air Guide, Outside Rh |
| 58327 | 58327-30070 | Insulator, Main Muffler Heat, Rh |
| 58328 | 58328-30080 | Insulator, Main Muffler Heat, Lh |
| 9011906767 | 90119-06767 | Bolt, W/washer(For Engine Under Cover) |
| 9017906219 | 90179-06219 | Nut |
| 9017906219 | 90182-A0005 | Nut |
| 9017906226 | 90179-06226 | Nut (For Rear Wiper Arm Setting) |
| 9054109151 | 90541-09151 | Cushion(For Luggage Compartment Door Panel) |
| OEM | Part name | Category |
|---|---|---|
| 58151-30220 | Insulator, Front Floor Heat, No.1 | Floor Insulator ([07.2014 - ] (1407- )AWS211,215) |
| 58156-30130 | Insulator, Front Floor Heat, No.4 | Floor Insulator ([07.2014 - ] (1407- )AWS211,215) |
| 58158-30100 | Insulator, Front Floor Heat, No.6 | Floor Insulator ([07.2014 - ] (1407- )AWS211,215) |
| 58226-53010 | Plate, Air Guide, Outside Rh | Floor Insulator ([07.2014 - ] (1407- )AWS211,215) |
| 58327-30070 | Insulator, Main Muffler Heat, Rh | Floor Insulator ([07.2014 - ] (1407- )AWS211,215) |
| 58328-30080 | Insulator, Main Muffler Heat, Lh | Floor Insulator ([07.2014 - ] (1407- )AWS211,215) |
| 90119-06767 | Bolt, W/washer(For Engine Under Cover) | Floor Insulator ([07.2014 - ] (1407- )AWS211,215) |
| 90179-06219 | Nut | Floor Insulator ([07.2014 - ] (1407- )AWS211,215) |
| 90179-06226 | Nut (For Rear Wiper Arm Setting) | Floor Insulator ([07.2014 - ] (1407- )AWS211,215) |
| 90182-A0005 | Nut | Floor Insulator ([07.2014 - ] (1407- )AWS211,215) |
| 90541-09151 | Cushion(For Luggage Compartment Door Panel) | Floor Insulator ([07.2014 - ] (1407- )AWS211,215) |
