Search › Model › AWS210

AWS210

Toyota CROWN-MAJESTA · 2013 · 5,268 parts · 218 categories

5,268 items

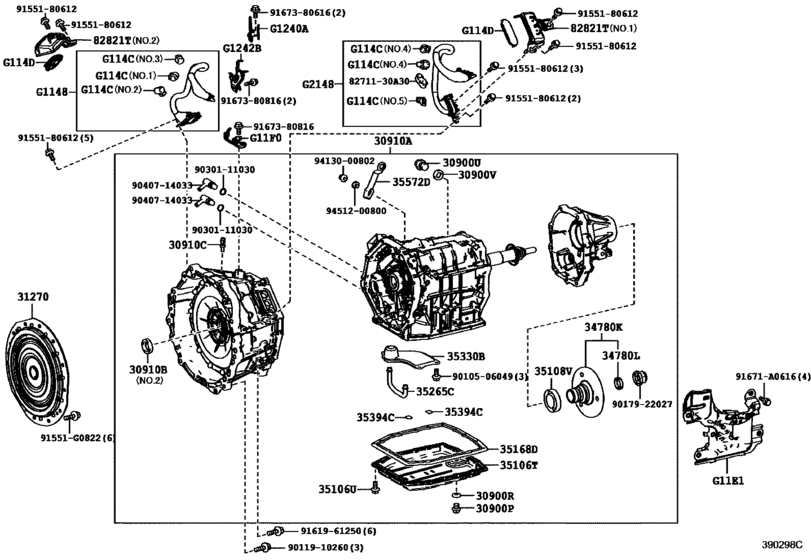

Transaxle Assy, Hv Or Fcv ([01.2013 - ] (1301- )AWS210) 37

#	OEM	Part name
30900	90341-10011	Drain Plug (No Type)
30900	35178-30010	Drain Plug Gasket
30900	90341-18060	Plug, W/head Straight Screw(For Transaxle Housing & Case)
30900	90430-18008	Gasket
30900	90430-T0021	Gasket(For Manual Transmission Filler Plug)
30910	30920-30030	Transmission Assy, Hybrid Vehicle
30910	90311-25027	Seal, Type T Oil(For Hybrid Vehicle Transmission Assy)
30910	90930-03201	Plug, Breather(For Transaxle)
31270	31270-30010	Damper Assy, Transmission Input
34780	34780-30090	Yoke Assy, Flange
34780	90312-27001	Seal, Type V Oil (For Frange Yoke)
35106	35106-30290	Pan Sub-Assy, Transmission Oil
35106	90119-06173	Bolt, Stud (For Automatic Transmission Oil Pan Setting)
35108	90311-42041	Seal, Type T Oil(For Hybrid Vehicle Transmission Assy)
35168	35168-30030	Gasket, Transmission Oil Pan
35265	35265-30010	Tube, Oil Cooler Return
35330	35330-30110	Strainer Assy, Oil
35394	35394-48010	Magnet, Oil Cleaner (For Transmission)
35572	35572-30090	Lever, Transmission Control Shaft
82821	82821-30A40	Cover, Connector
82821	82821-30A50	Cover, Connector
91551	91551-G0822	BOLT FLANGE
91671	91671-A0616	BOLT FLANGE
8271130	82711-30A30	Wire, Fuse To Fuse(for Combustion Heater)
9010506049	90105-06049	Bolt(For Transmission Case No.2 Plate)
9011910260	90119-10260	Bolt
9017922027	90179-22027	Nut (For Transfer Output Shaft Companion Flange)
9030111030	90301-11030	Ring, O(For Oil Cooler Tube Union)
9040714033	90407-14033	Union(For Oil Cooler Tube)
9040714033	90407-14034	Union(For Oil Cooler Tube)
9155180612	91551-80612	Bolt (For Front Differential Breather Plug Oil Deflector)
9161961250	91619-61250	Bolt
9167380616	91673-80616	Bolt, W/washer
9167380816	91673-80816	Bolt (For Transmission Control Cable Bracket)
9413000802	94130-00802	Nut, No.1 (For Center Support Bearing)
9413000802	90170-A0001	New Genuine Part
9451200800	94512-00800	Washer, No.1 (For Propeller Shaft & Differential Setting)

OEM	Part name	Category
30920-30030	Transmission Assy, Hybrid Vehicle	Transaxle Assy, Hv Or Fcv ([01.2013 - ] (1301- )AWS210)
31270-30010	Damper Assy, Transmission Input	Transaxle Assy, Hv Or Fcv ([01.2013 - ] (1301- )AWS210)
34780-30090	Yoke Assy, Flange	Transaxle Assy, Hv Or Fcv ([01.2013 - ] (1301- )AWS210)
35106-30290	Pan Sub-Assy, Transmission Oil	Transaxle Assy, Hv Or Fcv ([01.2013 - ] (1301- )AWS210)
35168-30030	Gasket, Transmission Oil Pan	Transaxle Assy, Hv Or Fcv ([01.2013 - ] (1301- )AWS210)
35178-30010	Drain Plug Gasket	Transaxle Assy, Hv Or Fcv ([01.2013 - ] (1301- )AWS210)
35265-30010	Tube, Oil Cooler Return	Transaxle Assy, Hv Or Fcv ([01.2013 - ] (1301- )AWS210)
35330-30110	Strainer Assy, Oil	Transaxle Assy, Hv Or Fcv ([01.2013 - ] (1301- )AWS210)
35394-48010	Magnet, Oil Cleaner (For Transmission)	Transaxle Assy, Hv Or Fcv ([01.2013 - ] (1301- )AWS210)
35572-30090	Lever, Transmission Control Shaft	Transaxle Assy, Hv Or Fcv ([01.2013 - ] (1301- )AWS210)
82711-30A30	Wire, Fuse To Fuse(for Combustion Heater)	Transaxle Assy, Hv Or Fcv ([01.2013 - ] (1301- )AWS210)
82821-30A40	Cover, Connector	Transaxle Assy, Hv Or Fcv ([01.2013 - ] (1301- )AWS210)
82821-30A50	Cover, Connector	Transaxle Assy, Hv Or Fcv ([01.2013 - ] (1301- )AWS210)
90105-06049	Bolt(For Transmission Case No.2 Plate)	Transaxle Assy, Hv Or Fcv ([01.2013 - ] (1301- )AWS210)
90119-06173	Bolt, Stud (For Automatic Transmission Oil Pan Setting)	Transaxle Assy, Hv Or Fcv ([01.2013 - ] (1301- )AWS210)
90119-10260	Bolt	Transaxle Assy, Hv Or Fcv ([01.2013 - ] (1301- )AWS210)
90170-A0001	New Genuine Part	Transaxle Assy, Hv Or Fcv ([01.2013 - ] (1301- )AWS210)
90179-22027	Nut (For Transfer Output Shaft Companion Flange)	Transaxle Assy, Hv Or Fcv ([01.2013 - ] (1301- )AWS210)
90301-11030	Ring, O(For Oil Cooler Tube Union)	Transaxle Assy, Hv Or Fcv ([01.2013 - ] (1301- )AWS210)
90311-25027	Seal, Type T Oil(For Hybrid Vehicle Transmission Assy)	Transaxle Assy, Hv Or Fcv ([01.2013 - ] (1301- )AWS210)
90311-42041	Seal, Type T Oil(For Hybrid Vehicle Transmission Assy)	Transaxle Assy, Hv Or Fcv ([01.2013 - ] (1301- )AWS210)
90312-27001	Seal, Type V Oil (For Frange Yoke)	Transaxle Assy, Hv Or Fcv ([01.2013 - ] (1301- )AWS210)
90341-10011	Drain Plug (No Type)	Transaxle Assy, Hv Or Fcv ([01.2013 - ] (1301- )AWS210)
90341-18060	Plug, W/head Straight Screw(For Transaxle Housing & Case)	Transaxle Assy, Hv Or Fcv ([01.2013 - ] (1301- )AWS210)
90407-14033	Union(For Oil Cooler Tube)	Transaxle Assy, Hv Or Fcv ([01.2013 - ] (1301- )AWS210)
90407-14034	Union(For Oil Cooler Tube)	Transaxle Assy, Hv Or Fcv ([01.2013 - ] (1301- )AWS210)
90430-18008	Gasket	Transaxle Assy, Hv Or Fcv ([01.2013 - ] (1301- )AWS210)
90430-T0021	Gasket(For Manual Transmission Filler Plug)	Transaxle Assy, Hv Or Fcv ([01.2013 - ] (1301- )AWS210)
90930-03201	Plug, Breather(For Transaxle)	Transaxle Assy, Hv Or Fcv ([01.2013 - ] (1301- )AWS210)
91551-80612	Bolt (For Front Differential Breather Plug Oil Deflector)	Transaxle Assy, Hv Or Fcv ([01.2013 - ] (1301- )AWS210)
91551-G0822	BOLT FLANGE	Transaxle Assy, Hv Or Fcv ([01.2013 - ] (1301- )AWS210)
91619-61250	Bolt	Transaxle Assy, Hv Or Fcv ([01.2013 - ] (1301- )AWS210)
91671-A0616	BOLT FLANGE	Transaxle Assy, Hv Or Fcv ([01.2013 - ] (1301- )AWS210)
91673-80616	Bolt, W/washer	Transaxle Assy, Hv Or Fcv ([01.2013 - ] (1301- )AWS210)
91673-80816	Bolt (For Transmission Control Cable Bracket)	Transaxle Assy, Hv Or Fcv ([01.2013 - ] (1301- )AWS210)
94130-00802	Nut, No.1 (For Center Support Bearing)	Transaxle Assy, Hv Or Fcv ([01.2013 - ] (1301- )AWS210)
94512-00800	Washer, No.1 (For Propeller Shaft & Differential Setting)	Transaxle Assy, Hv Or Fcv ([01.2013 - ] (1301- )AWS210)
