Search › Model › AWC34

AWC34

Nissan STAGEA · 1997 · 3,037 parts · 449 categories

3,037 items

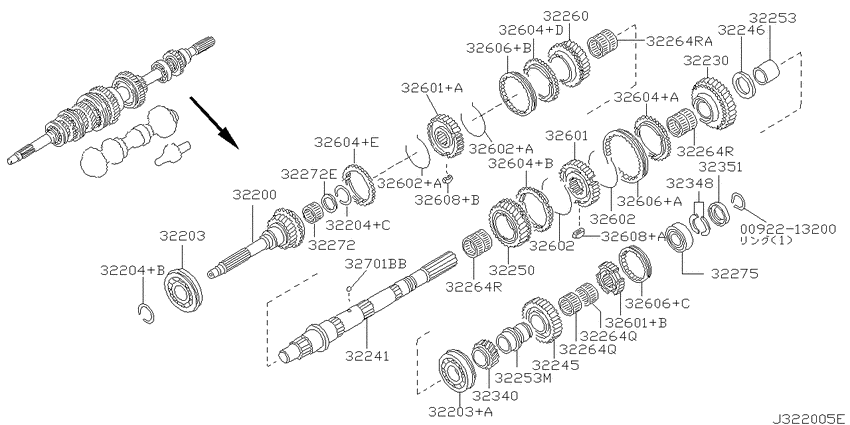

Transmission gear (1999-07-01 ~ ; メインギヤ(FS5R30A); MT) 46

#	OEM	Part name
32200	32201-05U71	Gear Assy-Main Drive
32204	32204-01G60	Ring-Snap
32204	32204-01G61	Ring-Snap
32204	32204-01G62	Ring-Snap
32204	32204-01G63	Ring-Snap
32204	32204-01G64	Ring-Snap
32204	32204-01G65	Ring-Snap
32204	32204-01G66	Ring-Snap
32204	32204-01G67	Ring-Snap
32230	32230-05U24	Gear Assy-1St
32241	32241-05U00	Shaft-Main
32245	32245-30P60	Gear-Reverse, Main Shaft
32246	32246-0W000	Washer-Thrust
32250	32251-30P14	Gear Assy-2Nd
32253	32247-01G00	Bush-Main Shaft Reverse Gear
32253	32247-01G01	Bush-Main Shaft Reverse Gear
32260	32261-12U14	Gear Assy-3Rd
32264	32264-21P00	Bearing-Needle, Main Shaft
32264	32264-21P0A	Bearing-Needle, Main Shaft
32272	32272-01G00	Bearing-Pilot, Main
32272	32275-01G00	Spacer-Pilot Bearing
32340	32341-30P04	Gear Assy-Overdrive
32348	32348-01G03	Ring-C, Main Shaft
32348	32348-01G04	Ring-C, Main Shaft
32348	32348-01G05	Ring-C, Main Shaft
32348	32348-01G07	Ring-C, Main Shaft
32348	32348-01G09	Ring-C, Main Shaft
32348	32348-01G12	Ring-C, Main Shaft
32348	32348-01G13	Ring-C, Main Shaft
32348	32348-01G14	Ring-C, Main Shaft
32351	32350-21U00	Holder-C Ring
32601	32605-30P11	Hub-Synchronizer
32601	32258-01G10	Hub-Synchronizer
32602	32603-23P00	Spring-Shifting Insert
32602	32603-30P00	Spring-Shifting Insert
32604	32604-23P60	Ring-Baulk
32604	32604-30P60	Ring-Baulk
32604	32604-30P61	Ring-Baulk
32604	32604-40P61	Ring-Baulk
32606	32606-30P10	Sleeve-Coupling
32606	32606-30P1A	Sleeve-Coupling
32606	32611-AA51A	Sleeve-Coupling
32606	32618-30P00	Sleeve-Coupling
32608	32609-23P00	Insert-Shifting
32608	32609-AA510	Insert-Shifting
92213200	00922-13200	RING SNAP

OEM	Part name	Category
00922-13200	RING SNAP	Transmission gear (1999-07-01 ~ ; メインギヤ(FS5R30A); MT)
32201-05U71	Gear Assy-Main Drive	Transmission gear (1999-07-01 ~ ; メインギヤ(FS5R30A); MT)
32204-01G60	Ring-Snap	Transmission gear (1999-07-01 ~ ; メインギヤ(FS5R30A); MT)
32204-01G61	Ring-Snap	Transmission gear (1999-07-01 ~ ; メインギヤ(FS5R30A); MT)
32204-01G62	Ring-Snap	Transmission gear (1999-07-01 ~ ; メインギヤ(FS5R30A); MT)
32204-01G63	Ring-Snap	Transmission gear (1999-07-01 ~ ; メインギヤ(FS5R30A); MT)
32204-01G64	Ring-Snap	Transmission gear (1999-07-01 ~ ; メインギヤ(FS5R30A); MT)
32204-01G65	Ring-Snap	Transmission gear (1999-07-01 ~ ; メインギヤ(FS5R30A); MT)
32204-01G66	Ring-Snap	Transmission gear (1999-07-01 ~ ; メインギヤ(FS5R30A); MT)
32204-01G67	Ring-Snap	Transmission gear (1999-07-01 ~ ; メインギヤ(FS5R30A); MT)
32230-05U24	Gear Assy-1St	Transmission gear (1999-07-01 ~ ; メインギヤ(FS5R30A); MT)
32241-05U00	Shaft-Main	Transmission gear (1999-07-01 ~ ; メインギヤ(FS5R30A); MT)
32245-30P60	Gear-Reverse, Main Shaft	Transmission gear (1999-07-01 ~ ; メインギヤ(FS5R30A); MT)
32246-0W000	Washer-Thrust	Transmission gear (1999-07-01 ~ ; メインギヤ(FS5R30A); MT)
32247-01G00	Bush-Main Shaft Reverse Gear	Transmission gear (1999-07-01 ~ ; メインギヤ(FS5R30A); MT)
32247-01G01	Bush-Main Shaft Reverse Gear	Transmission gear (1999-07-01 ~ ; メインギヤ(FS5R30A); MT)
32251-30P14	Gear Assy-2Nd	Transmission gear (1999-07-01 ~ ; メインギヤ(FS5R30A); MT)
32258-01G10	Hub-Synchronizer	Transmission gear (1999-07-01 ~ ; メインギヤ(FS5R30A); MT)
32261-12U14	Gear Assy-3Rd	Transmission gear (1999-07-01 ~ ; メインギヤ(FS5R30A); MT)
32264-21P00	Bearing-Needle, Main Shaft	Transmission gear (1999-07-01 ~ ; メインギヤ(FS5R30A); MT)
32264-21P0A	Bearing-Needle, Main Shaft	Transmission gear (1999-07-01 ~ ; メインギヤ(FS5R30A); MT)
32272-01G00	Bearing-Pilot, Main	Transmission gear (1999-07-01 ~ ; メインギヤ(FS5R30A); MT)
32275-01G00	Spacer-Pilot Bearing	Transmission gear (1999-07-01 ~ ; メインギヤ(FS5R30A); MT)
32341-30P04	Gear Assy-Overdrive	Transmission gear (1999-07-01 ~ ; メインギヤ(FS5R30A); MT)
32348-01G03	Ring-C, Main Shaft	Transmission gear (1999-07-01 ~ ; メインギヤ(FS5R30A); MT)
32348-01G04	Ring-C, Main Shaft	Transmission gear (1999-07-01 ~ ; メインギヤ(FS5R30A); MT)
32348-01G05	Ring-C, Main Shaft	Transmission gear (1999-07-01 ~ ; メインギヤ(FS5R30A); MT)
32348-01G07	Ring-C, Main Shaft	Transmission gear (1999-07-01 ~ ; メインギヤ(FS5R30A); MT)
32348-01G09	Ring-C, Main Shaft	Transmission gear (1999-07-01 ~ ; メインギヤ(FS5R30A); MT)
32348-01G12	Ring-C, Main Shaft	Transmission gear (1999-07-01 ~ ; メインギヤ(FS5R30A); MT)
32348-01G13	Ring-C, Main Shaft	Transmission gear (1999-07-01 ~ ; メインギヤ(FS5R30A); MT)
32348-01G14	Ring-C, Main Shaft	Transmission gear (1999-07-01 ~ ; メインギヤ(FS5R30A); MT)
32350-21U00	Holder-C Ring	Transmission gear (1999-07-01 ~ ; メインギヤ(FS5R30A); MT)
32603-23P00	Spring-Shifting Insert	Transmission gear (1999-07-01 ~ ; メインギヤ(FS5R30A); MT)
32603-30P00	Spring-Shifting Insert	Transmission gear (1999-07-01 ~ ; メインギヤ(FS5R30A); MT)
32604-23P60	Ring-Baulk	Transmission gear (1999-07-01 ~ ; メインギヤ(FS5R30A); MT)
32604-30P60	Ring-Baulk	Transmission gear (1999-07-01 ~ ; メインギヤ(FS5R30A); MT)
32604-30P61	Ring-Baulk	Transmission gear (1999-07-01 ~ ; メインギヤ(FS5R30A); MT)
32604-40P61	Ring-Baulk	Transmission gear (1999-07-01 ~ ; メインギヤ(FS5R30A); MT)
32605-30P11	Hub-Synchronizer	Transmission gear (1999-07-01 ~ ; メインギヤ(FS5R30A); MT)
32606-30P10	Sleeve-Coupling	Transmission gear (1999-07-01 ~ ; メインギヤ(FS5R30A); MT)
32606-30P1A	Sleeve-Coupling	Transmission gear (1999-07-01 ~ ; メインギヤ(FS5R30A); MT)
32609-23P00	Insert-Shifting	Transmission gear (1999-07-01 ~ ; メインギヤ(FS5R30A); MT)
32609-AA510	Insert-Shifting	Transmission gear (1999-07-01 ~ ; メインギヤ(FS5R30A); MT)
32611-AA51A	Sleeve-Coupling	Transmission gear (1999-07-01 ~ ; メインギヤ(FS5R30A); MT)
32618-30P00	Sleeve-Coupling	Transmission gear (1999-07-01 ~ ; メインギヤ(FS5R30A); MT)
