Search › Model › AWC34

AWC34

Nissan STAGEA · 1997 · 3,037 parts · 449 categories

3,037 items

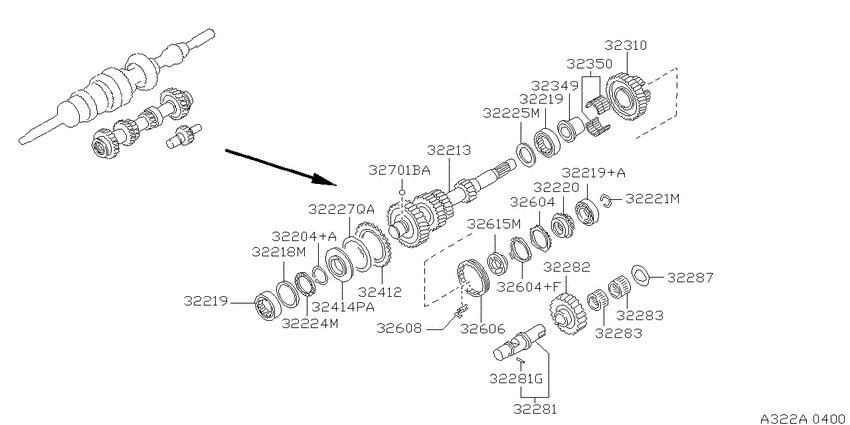

Transmission gear (1998-08-01 ~ ; "カウンターギヤ(FS5R30A); MT) 46

#	OEM	Part name
32213	32212-AA504	Gear-Counter
32218	32218-01G12	Shim-Bearing
32218	32218-01G13	Shim-Bearing
32218	32218-01G14	Shim-Bearing
32218	32218-01G16	Shim-Bearing
32218	32218-01G17	Shim-Bearing
32219	32219-01G10	Bearing-Counter Shaft
32220	32220-30P60	Gear-Reverse, Counter
32220	32220-30P6A	Gear-Reverse, Counter
32221	32236-01G00	Ring-Snap, Counter Shaft
32221	32236-01G01	Ring-Snap, Counter Shaft
32221	32236-01G02	Ring-Snap, Counter Shaft
32221	32236-01G03	Ring-Snap, Counter Shaft
32221	32236-01G04	Ring-Snap, Counter Shaft
32221	32236-01G05	Ring-Snap, Counter Shaft
32221	32236-01G06	Ring-Snap, Counter Shaft
32221	32236-01G07	Ring-Snap, Counter Shaft
32224	32224-01G00	Bearing-Needle, Thrust Front
32225	32225-01G00	Bearing-Needle, Thrust Rear
32227	32415-33G20	Spring-Sub Gear
32281	32320-VB360	Shaft-Reverse Idler
32281	38428-65000	Pin
32282	32282-30P61	Gear-Reverse Idler
32283	32272-21P20	Bearing-Reverse Idler Gear
32287	32284-01G10	Washer-Thrust, Reverse Idler
32287	32284-01G2A	Washer-Thrust, Reverse Idler
32287	32284-01G11	Washer-Thrust, Reverse Idler
32350	32350-01G60	Bearing-Overdrive Gear
32350	32350-23U00	Holder-Ring
32414	32414-01G00	Bracket-Sub Gear
32604	32614-30P60	Ring-Baulk
32604	32604-23P60	Ring-Baulk
32604	32604-30P60	Ring-Baulk
32604	32604-30P61	Ring-Baulk
32604	32604-40P61	Ring-Baulk
32604	32617-30P60	Ring-Baulk
32606	32616-30P20	Sleeve-Coupling
32606	32606-30P10	Sleeve-Coupling
32606	32606-30P1A	Sleeve-Coupling
32606	32611-AA51A	Sleeve-Coupling
32606	32618-30P00	Sleeve-Coupling
32608	32615-30P60	Insert-Shifting
32608	32609-23P00	Insert-Shifting
32608	32609-AA510	Insert-Shifting
32615	32214-01G20	Cone-Counter Reverse Gear
32615	32214-01G21	Cone-Counter Reverse Gear

OEM	Part name	Category
32212-AA504	Gear-Counter	Transmission gear (1998-08-01 ~ ; "カウンターギヤ(FS5R30A); MT)
32214-01G20	Cone-Counter Reverse Gear	Transmission gear (1998-08-01 ~ ; "カウンターギヤ(FS5R30A); MT)
32214-01G21	Cone-Counter Reverse Gear	Transmission gear (1998-08-01 ~ ; "カウンターギヤ(FS5R30A); MT)
32218-01G12	Shim-Bearing	Transmission gear (1998-08-01 ~ ; "カウンターギヤ(FS5R30A); MT)
32218-01G13	Shim-Bearing	Transmission gear (1998-08-01 ~ ; "カウンターギヤ(FS5R30A); MT)
32218-01G14	Shim-Bearing	Transmission gear (1998-08-01 ~ ; "カウンターギヤ(FS5R30A); MT)
32218-01G16	Shim-Bearing	Transmission gear (1998-08-01 ~ ; "カウンターギヤ(FS5R30A); MT)
32218-01G17	Shim-Bearing	Transmission gear (1998-08-01 ~ ; "カウンターギヤ(FS5R30A); MT)
32219-01G10	Bearing-Counter Shaft	Transmission gear (1998-08-01 ~ ; "カウンターギヤ(FS5R30A); MT)
32220-30P60	Gear-Reverse, Counter	Transmission gear (1998-08-01 ~ ; "カウンターギヤ(FS5R30A); MT)
32220-30P6A	Gear-Reverse, Counter	Transmission gear (1998-08-01 ~ ; "カウンターギヤ(FS5R30A); MT)
32224-01G00	Bearing-Needle, Thrust Front	Transmission gear (1998-08-01 ~ ; "カウンターギヤ(FS5R30A); MT)
32225-01G00	Bearing-Needle, Thrust Rear	Transmission gear (1998-08-01 ~ ; "カウンターギヤ(FS5R30A); MT)
32236-01G00	Ring-Snap, Counter Shaft	Transmission gear (1998-08-01 ~ ; "カウンターギヤ(FS5R30A); MT)
32236-01G01	Ring-Snap, Counter Shaft	Transmission gear (1998-08-01 ~ ; "カウンターギヤ(FS5R30A); MT)
32236-01G02	Ring-Snap, Counter Shaft	Transmission gear (1998-08-01 ~ ; "カウンターギヤ(FS5R30A); MT)
32236-01G03	Ring-Snap, Counter Shaft	Transmission gear (1998-08-01 ~ ; "カウンターギヤ(FS5R30A); MT)
32236-01G04	Ring-Snap, Counter Shaft	Transmission gear (1998-08-01 ~ ; "カウンターギヤ(FS5R30A); MT)
32236-01G05	Ring-Snap, Counter Shaft	Transmission gear (1998-08-01 ~ ; "カウンターギヤ(FS5R30A); MT)
32236-01G06	Ring-Snap, Counter Shaft	Transmission gear (1998-08-01 ~ ; "カウンターギヤ(FS5R30A); MT)
32236-01G07	Ring-Snap, Counter Shaft	Transmission gear (1998-08-01 ~ ; "カウンターギヤ(FS5R30A); MT)
32272-21P20	Bearing-Reverse Idler Gear	Transmission gear (1998-08-01 ~ ; "カウンターギヤ(FS5R30A); MT)
32282-30P61	Gear-Reverse Idler	Transmission gear (1998-08-01 ~ ; "カウンターギヤ(FS5R30A); MT)
32284-01G10	Washer-Thrust, Reverse Idler	Transmission gear (1998-08-01 ~ ; "カウンターギヤ(FS5R30A); MT)
32284-01G11	Washer-Thrust, Reverse Idler	Transmission gear (1998-08-01 ~ ; "カウンターギヤ(FS5R30A); MT)
32284-01G2A	Washer-Thrust, Reverse Idler	Transmission gear (1998-08-01 ~ ; "カウンターギヤ(FS5R30A); MT)
32320-VB360	Shaft-Reverse Idler	Transmission gear (1998-08-01 ~ ; "カウンターギヤ(FS5R30A); MT)
32350-01G60	Bearing-Overdrive Gear	Transmission gear (1998-08-01 ~ ; "カウンターギヤ(FS5R30A); MT)
32350-23U00	Holder-Ring	Transmission gear (1998-08-01 ~ ; "カウンターギヤ(FS5R30A); MT)
32414-01G00	Bracket-Sub Gear	Transmission gear (1998-08-01 ~ ; "カウンターギヤ(FS5R30A); MT)
32415-33G20	Spring-Sub Gear	Transmission gear (1998-08-01 ~ ; "カウンターギヤ(FS5R30A); MT)
32604-23P60	Ring-Baulk	Transmission gear (1998-08-01 ~ ; "カウンターギヤ(FS5R30A); MT)
32604-30P60	Ring-Baulk	Transmission gear (1998-08-01 ~ ; "カウンターギヤ(FS5R30A); MT)
32604-30P61	Ring-Baulk	Transmission gear (1998-08-01 ~ ; "カウンターギヤ(FS5R30A); MT)
32604-40P61	Ring-Baulk	Transmission gear (1998-08-01 ~ ; "カウンターギヤ(FS5R30A); MT)
32606-30P10	Sleeve-Coupling	Transmission gear (1998-08-01 ~ ; "カウンターギヤ(FS5R30A); MT)
32606-30P1A	Sleeve-Coupling	Transmission gear (1998-08-01 ~ ; "カウンターギヤ(FS5R30A); MT)
32609-23P00	Insert-Shifting	Transmission gear (1998-08-01 ~ ; "カウンターギヤ(FS5R30A); MT)
32609-AA510	Insert-Shifting	Transmission gear (1998-08-01 ~ ; "カウンターギヤ(FS5R30A); MT)
32611-AA51A	Sleeve-Coupling	Transmission gear (1998-08-01 ~ ; "カウンターギヤ(FS5R30A); MT)
32614-30P60	Ring-Baulk	Transmission gear (1998-08-01 ~ ; "カウンターギヤ(FS5R30A); MT)
32615-30P60	Insert-Shifting	Transmission gear (1998-08-01 ~ ; "カウンターギヤ(FS5R30A); MT)
32616-30P20	Sleeve-Coupling	Transmission gear (1998-08-01 ~ ; "カウンターギヤ(FS5R30A); MT)
32617-30P60	Ring-Baulk	Transmission gear (1998-08-01 ~ ; "カウンターギヤ(FS5R30A); MT)
32618-30P00	Sleeve-Coupling	Transmission gear (1998-08-01 ~ ; "カウンターギヤ(FS5R30A); MT)
38428-65000	Pin	Transmission gear (1998-08-01 ~ ; "カウンターギヤ(FS5R30A); MT)

Source: Public OEM parts-catalog data
Variants: 2 / 2
Category: 449
Collected: 2026-07-27
