AWC34

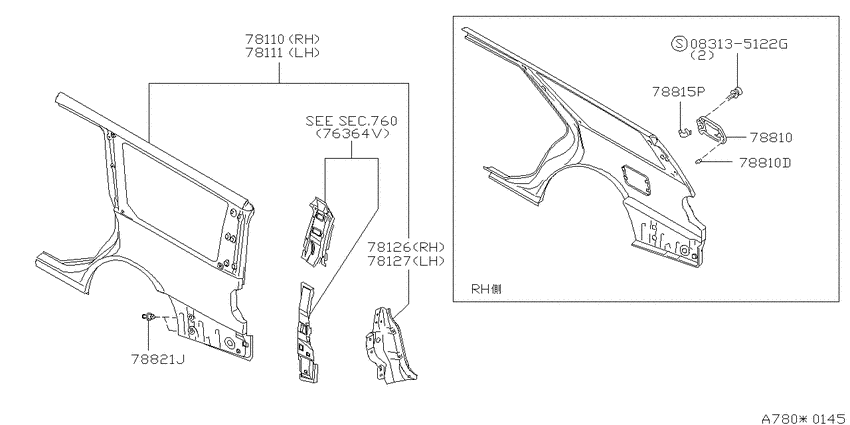

Rear fender & fitting (1998-08-01 ~ ; W) 5
| # | OEM | Part name |
|---|---|---|
| 78110 | 78100-0A936 | Fender-Rear, Rh |
| 78111 | 78101-0A936 | Fender-Rear, Lh |
| 78126 | 78134-0V730 | Corner-Rear Fender, Rh |
| 78127 | 78135-0V730 | Corner-Rear Fender, Lh |
| 78810 | 78830-0V000 | Lid-Gas Filler |
| OEM | Part name | Category |
|---|---|---|
| 78100-0A936 | Fender-Rear, Rh | Rear fender & fitting (1998-08-01 ~ ; W) |
| 78101-0A936 | Fender-Rear, Lh | Rear fender & fitting (1998-08-01 ~ ; W) |
| 78134-0V730 | Corner-Rear Fender, Rh | Rear fender & fitting (1998-08-01 ~ ; W) |
| 78135-0V730 | Corner-Rear Fender, Lh | Rear fender & fitting (1998-08-01 ~ ; W) |
| 78830-0V000 | Lid-Gas Filler | Rear fender & fitting (1998-08-01 ~ ; W) |
