Search › Model › AWC34
AWC34

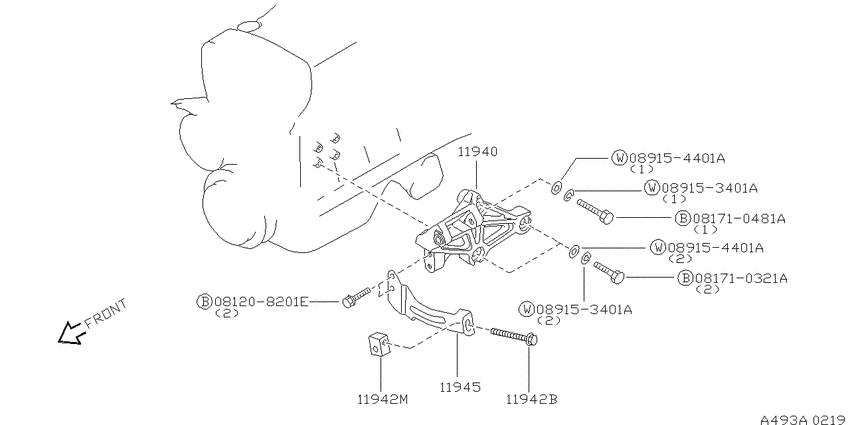

Power steering pump mounting (1997-11-01 ~ 1998-08-01; W) 6
| # | OEM | Part name |
|---|---|---|
| 11940 | 11940-24U00 | Bracket-Power Steering Oil Pump |
| 11942 | 11717-05U00 | Bolt |
| 11942 | 11942-05U00 | Bracket-Adjust Bolt |
| 11945 | 11941-24U00 | Bar-Adjusting |
| 81710321 | 08171-0321A | Bolt-hexagon |
| 81710481 | 08171-0481A | Bolt-hexagon |
| OEM | Part name | Category |
|---|---|---|
| 08171-0321A | Bolt-hexagon | Power steering pump mounting (1997-11-01 ~ 1998-08-01; W) |
| 08171-0481A | Bolt-hexagon | Power steering pump mounting (1997-11-01 ~ 1998-08-01; W) |
| 11717-05U00 | Bolt | Power steering pump mounting (1997-11-01 ~ 1998-08-01; W) |
| 11940-24U00 | Bracket-Power Steering Oil Pump | Power steering pump mounting (1997-11-01 ~ 1998-08-01; W) |
| 11941-24U00 | Bar-Adjusting | Power steering pump mounting (1997-11-01 ~ 1998-08-01; W) |
| 11942-05U00 | Bracket-Adjust Bolt | Power steering pump mounting (1997-11-01 ~ 1998-08-01; W) |
