AWC34

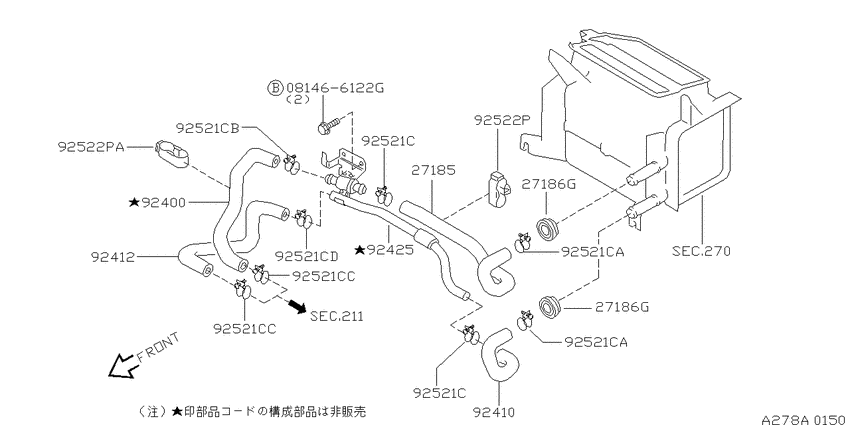

Heater piping (1998-08-01 ~ ; W) 8
| # | OEM | Part name |
|---|---|---|
| 27185 | 92401-75T00 | Hose-Front Heater, 3 |
| 27185 | 27185-0E000 | DOOR ASSY-FOOT |
| 27186 | 92580-78E01 | GROMMET-RUBBER |
| 92410 | 92410-24U00 | HOSEHEATEROUT |
| 92425 | 92425-24U00 | Tube, Rear Heater |
| 92521 | 01555-00261 | CLAMP-HOSE |
| 92521 | 01558-00211 | CLIP |
| 92522 | 92555-1P100 | Clip |
| OEM | Part name | Category |
|---|---|---|
| 01555-00261 | CLAMP-HOSE | Heater piping (1998-08-01 ~ ; W) |
| 01558-00211 | CLIP | Heater piping (1998-08-01 ~ ; W) |
| 27185-0E000 | DOOR ASSY-FOOT | Heater piping (1998-08-01 ~ ; W) |
| 92401-75T00 | Hose-Front Heater, 3 | Heater piping (1998-08-01 ~ ; W) |
| 92410-24U00 | HOSEHEATEROUT | Heater piping (1998-08-01 ~ ; W) |
| 92425-24U00 | Tube, Rear Heater | Heater piping (1998-08-01 ~ ; W) |
| 92555-1P100 | Clip | Heater piping (1998-08-01 ~ ; W) |
| 92580-78E01 | GROMMET-RUBBER | Heater piping (1998-08-01 ~ ; W) |
