AWC34

Nissan STAGEA · 1997 · 3,037 parts · 449 categories

3,037 items

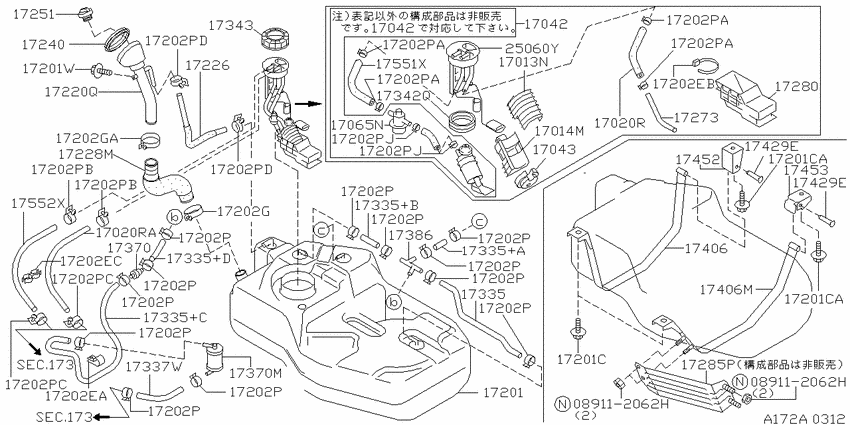

Fuel tank (1997-11-01 ~ 1998-08-01; RB26DETT) 28

#	OEM	Part name
17013	17013-53J00	Bracket-Fuel Pump
17014	17014-53J00	Bracket-Fuel Pump
17020	08740-45039	HOSE-FUEL
17020	01995-00141	HOSE-FUEL
17042	17042-05U00	Pump Assy-Fuel
17065	17065-05U00	Valve Assy-Fuel
17201	17202-0V000	Tank Assy-Fuel
17201	01121-03981	BOLT
17201	17598-0V000	Bolt
17201	01466-00171	SCREW
17202	01552-00481	CLAMP
17202	24220-79917	Clip
17202	01555-00461	CLAMP
17202	01555-00721	CLAMP
17202	01558-00401	CLAMP-HOSE
17202	16439-35F15	Clamp
17202	16439-0V000	Clamp
17220	17221-0V000	Tube Assy-Filler
17240	17240-50Y00	Grommet-Filler Base
17285	17285-05U00	Protector-Fuel Tank
17335	17335-0V002	Hose-Evaporation
17335	17335-0V004	Hose-Evaporation
17337	17337-0V001	Hose-Evapolation
17406	17406-0V000	Band Assy-Fuel Tank Mounting
17406	17407-0V000	Band Assy-Fuel Tank, Mounting
17453	17453-0V000	Bracket-Fuel Tank Mounting, Rear
17552	17552-0V000	Hose-Fuel
25060	25060-0A900	Sender Unit-Fuel Gauge

OEM	Part name	Category
01121-03981	BOLT	Fuel tank (1997-11-01 ~ 1998-08-01; RB26DETT)
01466-00171	SCREW	Fuel tank (1997-11-01 ~ 1998-08-01; RB26DETT)
01552-00481	CLAMP	Fuel tank (1997-11-01 ~ 1998-08-01; RB26DETT)
01555-00461	CLAMP	Fuel tank (1997-11-01 ~ 1998-08-01; RB26DETT)
01555-00721	CLAMP	Fuel tank (1997-11-01 ~ 1998-08-01; RB26DETT)
01558-00401	CLAMP-HOSE	Fuel tank (1997-11-01 ~ 1998-08-01; RB26DETT)
01995-00141	HOSE-FUEL	Fuel tank (1997-11-01 ~ 1998-08-01; RB26DETT)
08740-45039	HOSE-FUEL	Fuel tank (1997-11-01 ~ 1998-08-01; RB26DETT)
16439-0V000	Clamp	Fuel tank (1997-11-01 ~ 1998-08-01; RB26DETT)
16439-35F15	Clamp	Fuel tank (1997-11-01 ~ 1998-08-01; RB26DETT)
17013-53J00	Bracket-Fuel Pump	Fuel tank (1997-11-01 ~ 1998-08-01; RB26DETT)
17014-53J00	Bracket-Fuel Pump	Fuel tank (1997-11-01 ~ 1998-08-01; RB26DETT)
17042-05U00	Pump Assy-Fuel	Fuel tank (1997-11-01 ~ 1998-08-01; RB26DETT)
17065-05U00	Valve Assy-Fuel	Fuel tank (1997-11-01 ~ 1998-08-01; RB26DETT)
17202-0V000	Tank Assy-Fuel	Fuel tank (1997-11-01 ~ 1998-08-01; RB26DETT)
17221-0V000	Tube Assy-Filler	Fuel tank (1997-11-01 ~ 1998-08-01; RB26DETT)
17240-50Y00	Grommet-Filler Base	Fuel tank (1997-11-01 ~ 1998-08-01; RB26DETT)
17285-05U00	Protector-Fuel Tank	Fuel tank (1997-11-01 ~ 1998-08-01; RB26DETT)
17335-0V002	Hose-Evaporation	Fuel tank (1997-11-01 ~ 1998-08-01; RB26DETT)
17335-0V004	Hose-Evaporation	Fuel tank (1997-11-01 ~ 1998-08-01; RB26DETT)
17337-0V001	Hose-Evapolation	Fuel tank (1997-11-01 ~ 1998-08-01; RB26DETT)
17406-0V000	Band Assy-Fuel Tank Mounting	Fuel tank (1997-11-01 ~ 1998-08-01; RB26DETT)
17407-0V000	Band Assy-Fuel Tank, Mounting	Fuel tank (1997-11-01 ~ 1998-08-01; RB26DETT)
17453-0V000	Bracket-Fuel Tank Mounting, Rear	Fuel tank (1997-11-01 ~ 1998-08-01; RB26DETT)
17552-0V000	Hose-Fuel	Fuel tank (1997-11-01 ~ 1998-08-01; RB26DETT)
17598-0V000	Bolt	Fuel tank (1997-11-01 ~ 1998-08-01; RB26DETT)
24220-79917	Clip	Fuel tank (1997-11-01 ~ 1998-08-01; RB26DETT)
25060-0A900	Sender Unit-Fuel Gauge	Fuel tank (1997-11-01 ~ 1998-08-01; RB26DETT)
