Search › Model › AWC34
AWC34

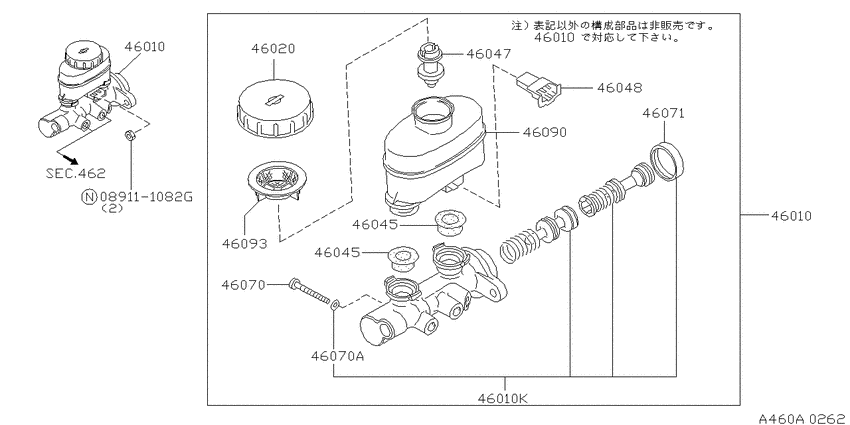

Brake master cylinder (1998-08-01 ~ ; RB26DETT) 8
| # | OEM | Part name |
|---|---|---|
| 46010 | 46010-0V600 | Cylinder Assy-Brake Master |
| 46010 | 46011-0V626 | Piston Kit-Tandem Brake Master Cylinder |
| 46047 | 46047-60U04 | Float-Reservoir Tank |
| 46048 | 46048-64J01 | Indicator Assy-Level |
| 46070 | 46032-70T00 | Screw-Stopper |
| 46070 | 46079-W1010 | Packing-Stopper Screw |
| 46071 | 46082-01A1A | Ring-Snap |
| 46090 | 46091-60U04 | Tank-Oil Reservoir |
| OEM | Part name | Category |
|---|---|---|
| 46010-0V600 | Cylinder Assy-Brake Master | Brake master cylinder (1998-08-01 ~ ; RB26DETT) |
| 46011-0V626 | Piston Kit-Tandem Brake Master Cylinder | Brake master cylinder (1998-08-01 ~ ; RB26DETT) |
| 46032-70T00 | Screw-Stopper | Brake master cylinder (1998-08-01 ~ ; RB26DETT) |
| 46047-60U04 | Float-Reservoir Tank | Brake master cylinder (1998-08-01 ~ ; RB26DETT) |
| 46048-64J01 | Indicator Assy-Level | Brake master cylinder (1998-08-01 ~ ; RB26DETT) |
| 46079-W1010 | Packing-Stopper Screw | Brake master cylinder (1998-08-01 ~ ; RB26DETT) |
| 46082-01A1A | Ring-Snap | Brake master cylinder (1998-08-01 ~ ; RB26DETT) |
| 46091-60U04 | Tank-Oil Reservoir | Brake master cylinder (1998-08-01 ~ ; RB26DETT) |
