Search › Model › AVV50
AVV50

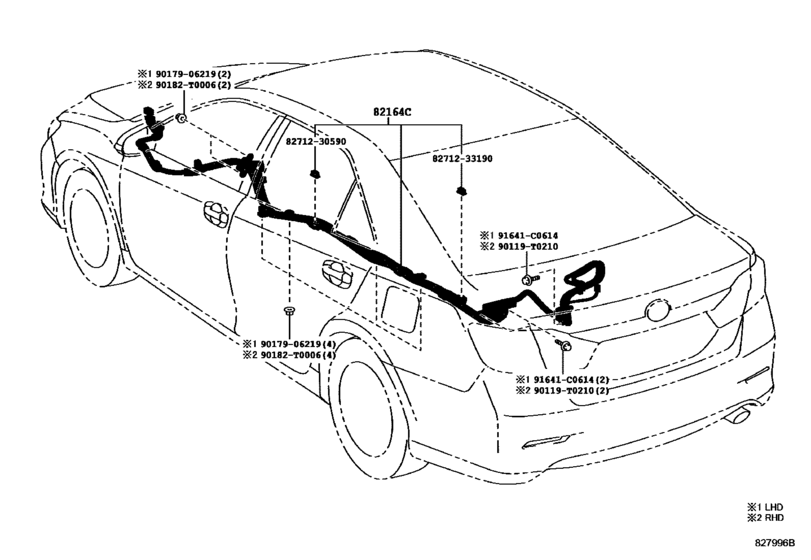

Wiring & Clamp ([02.2012 - ] HIGH-TENSION CABLE (1202- )AVV50) 8
| # | OEM | Part name |
|---|---|---|
| 82164 | 82164-33090 | Wire, Floor, No.4 |
| 90119 | 90119-T0210 | New Genuine Part |
| 90182 | 90182-T0006 | New Genuine Part |
| 91641 | 91641-C0614 | Bolt |
| 8271230590 | 82712-30590 | Support, Wiring Harness |
| 8271233190 | 82712-33190 | Support, Wiring Harness |
| 9017906219 | 90179-06219 | Nut |
| 9017906219 | 90182-A0005 | Nut |
| OEM | Part name | Category |
|---|---|---|
| 82164-33090 | Wire, Floor, No.4 | Wiring & Clamp ([02.2012 - ] HIGH-TENSION CABLE (1202- )AVV50) |
| 82712-30590 | Support, Wiring Harness | Wiring & Clamp ([02.2012 - ] HIGH-TENSION CABLE (1202- )AVV50) |
| 82712-33190 | Support, Wiring Harness | Wiring & Clamp ([02.2012 - ] HIGH-TENSION CABLE (1202- )AVV50) |
| 90119-T0210 | New Genuine Part | Wiring & Clamp ([02.2012 - ] HIGH-TENSION CABLE (1202- )AVV50) |
| 90179-06219 | Nut | Wiring & Clamp ([02.2012 - ] HIGH-TENSION CABLE (1202- )AVV50) |
| 90182-A0005 | Nut | Wiring & Clamp ([02.2012 - ] HIGH-TENSION CABLE (1202- )AVV50) |
| 90182-T0006 | New Genuine Part | Wiring & Clamp ([02.2012 - ] HIGH-TENSION CABLE (1202- )AVV50) |
| 91641-C0614 | Bolt | Wiring & Clamp ([02.2012 - ] HIGH-TENSION CABLE (1202- )AVV50) |
