AVV50

Toyota CAMRY-VISTA-AURION · 2011 · 5,315 parts · 389 categories

5,315 items

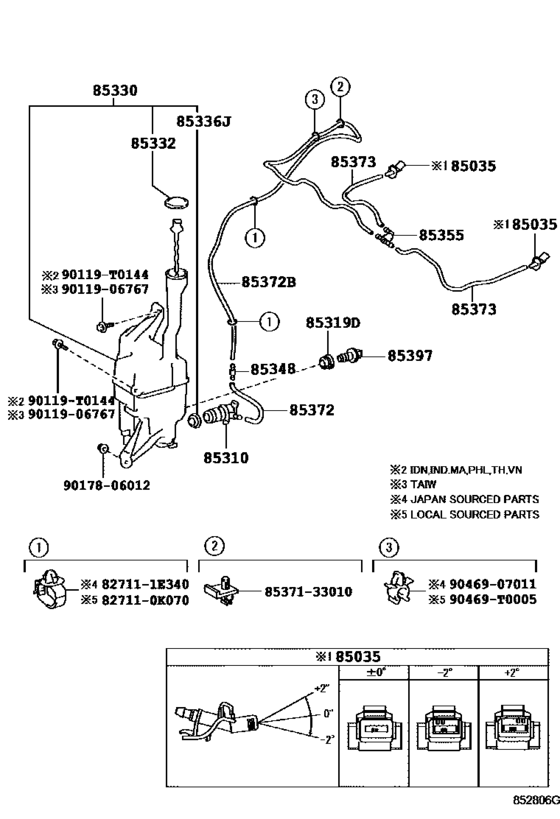

Windshield Washer ([03.2015 - ] W/O(HEADLAMP CLEANER) (1502- )ASV51..TH ; (1503- )AVV50..MA ; (1 503- )ASV51..TAIW ; (1504- )A SV51..VN) 24

#	OEM	Part name
0	82711-1E340	Clamp, Hood Lock Control Cable
85035	85381-30150	Nozzle Sub-Assy, Washer
85035	85381-30160	Nozzle Sub-Assy, Washer
85035	85381-33080	Nozzle Sub-Assy, Washer
85310	85330-0D100	Motor And Pump Assy, Windshield Washer
85319	85319-33230	Packing, Front Washer
85330	85315-06270	Jar Assy, Windshield Washer
85332	85316-06270	Cap, Windshield Washer Jar
85332	85386-60050	Cap, Windshield Washer Jar
85336	85336-0K020	Bush, Windshield Washer Jar
85336	85336-60300	Bush, Windshield Washer Jar
85348	85375-06101	Joint, Windshield Washer Hose, No.1
85355	85321-28020	Valve Sub-Assy, Washer
85372	90068-33107	Hose, Rear Washer (From Joint To Joint), No.1 - WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
85372	90068-59103	Hose, Windshield Washer (From Joint To Joint), No.2
85373	90068-33182	Hose, Windshield Washer (From Joint To Nozzle)
85397	85397-33230	Switch Assy,level Warning
90119	90119-T0144	Bolt, W/washer(For Engine Under Cover)
90469	90469-T0005	Clamp, Washer, No.3
827110	82711-0K070	Clamp
8537133010	85371-33010	Clamp, Washer, No.2
9011906767	90119-06767	Bolt, W/washer(For Engine Under Cover)
9017806012	90178-06012	NUT FLANGE
9046907011	90469-07011	Clamp No.1 (For Windseield Washer)

OEM	Part name	Category
82711-0K070	Clamp	Windshield Washer ([03.2015 - ] W/O(HEADLAMP CLEANER) (1502- )ASV51..TH ; (1503- )AVV50..MA ; (1 503- )ASV51..TAIW ; (1504- )A SV51..VN)
82711-1E340	Clamp, Hood Lock Control Cable	Windshield Washer ([03.2015 - ] W/O(HEADLAMP CLEANER) (1502- )ASV51..TH ; (1503- )AVV50..MA ; (1 503- )ASV51..TAIW ; (1504- )A SV51..VN)
85315-06270	Jar Assy, Windshield Washer	Windshield Washer ([03.2015 - ] W/O(HEADLAMP CLEANER) (1502- )ASV51..TH ; (1503- )AVV50..MA ; (1 503- )ASV51..TAIW ; (1504- )A SV51..VN)
85316-06270	Cap, Windshield Washer Jar	Windshield Washer ([03.2015 - ] W/O(HEADLAMP CLEANER) (1502- )ASV51..TH ; (1503- )AVV50..MA ; (1 503- )ASV51..TAIW ; (1504- )A SV51..VN)
85319-33230	Packing, Front Washer	Windshield Washer ([03.2015 - ] W/O(HEADLAMP CLEANER) (1502- )ASV51..TH ; (1503- )AVV50..MA ; (1 503- )ASV51..TAIW ; (1504- )A SV51..VN)
85321-28020	Valve Sub-Assy, Washer	Windshield Washer ([03.2015 - ] W/O(HEADLAMP CLEANER) (1502- )ASV51..TH ; (1503- )AVV50..MA ; (1 503- )ASV51..TAIW ; (1504- )A SV51..VN)
85330-0D100	Motor And Pump Assy, Windshield Washer	Windshield Washer ([03.2015 - ] W/O(HEADLAMP CLEANER) (1502- )ASV51..TH ; (1503- )AVV50..MA ; (1 503- )ASV51..TAIW ; (1504- )A SV51..VN)
85336-0K020	Bush, Windshield Washer Jar	Windshield Washer ([03.2015 - ] W/O(HEADLAMP CLEANER) (1502- )ASV51..TH ; (1503- )AVV50..MA ; (1 503- )ASV51..TAIW ; (1504- )A SV51..VN)
85336-60300	Bush, Windshield Washer Jar	Windshield Washer ([03.2015 - ] W/O(HEADLAMP CLEANER) (1502- )ASV51..TH ; (1503- )AVV50..MA ; (1 503- )ASV51..TAIW ; (1504- )A SV51..VN)
85371-33010	Clamp, Washer, No.2	Windshield Washer ([03.2015 - ] W/O(HEADLAMP CLEANER) (1502- )ASV51..TH ; (1503- )AVV50..MA ; (1 503- )ASV51..TAIW ; (1504- )A SV51..VN)
85375-06101	Joint, Windshield Washer Hose, No.1	Windshield Washer ([03.2015 - ] W/O(HEADLAMP CLEANER) (1502- )ASV51..TH ; (1503- )AVV50..MA ; (1 503- )ASV51..TAIW ; (1504- )A SV51..VN)
85381-30150	Nozzle Sub-Assy, Washer	Windshield Washer ([03.2015 - ] W/O(HEADLAMP CLEANER) (1502- )ASV51..TH ; (1503- )AVV50..MA ; (1 503- )ASV51..TAIW ; (1504- )A SV51..VN)
85381-30160	Nozzle Sub-Assy, Washer	Windshield Washer ([03.2015 - ] W/O(HEADLAMP CLEANER) (1502- )ASV51..TH ; (1503- )AVV50..MA ; (1 503- )ASV51..TAIW ; (1504- )A SV51..VN)
85381-33080	Nozzle Sub-Assy, Washer	Windshield Washer ([03.2015 - ] W/O(HEADLAMP CLEANER) (1502- )ASV51..TH ; (1503- )AVV50..MA ; (1 503- )ASV51..TAIW ; (1504- )A SV51..VN)
85386-60050	Cap, Windshield Washer Jar	Windshield Washer ([03.2015 - ] W/O(HEADLAMP CLEANER) (1502- )ASV51..TH ; (1503- )AVV50..MA ; (1 503- )ASV51..TAIW ; (1504- )A SV51..VN)
85397-33230	Switch Assy,level Warning	Windshield Washer ([03.2015 - ] W/O(HEADLAMP CLEANER) (1502- )ASV51..TH ; (1503- )AVV50..MA ; (1 503- )ASV51..TAIW ; (1504- )A SV51..VN)
90068-33107	Hose, Rear Washer (From Joint To Joint), No.1 - WINDSHIELD WASHER (FROM JOINT TO NOZZLE)	Windshield Washer ([03.2015 - ] W/O(HEADLAMP CLEANER) (1502- )ASV51..TH ; (1503- )AVV50..MA ; (1 503- )ASV51..TAIW ; (1504- )A SV51..VN)
90068-33182	Hose, Windshield Washer (From Joint To Nozzle)	Windshield Washer ([03.2015 - ] W/O(HEADLAMP CLEANER) (1502- )ASV51..TH ; (1503- )AVV50..MA ; (1 503- )ASV51..TAIW ; (1504- )A SV51..VN)
90068-59103	Hose, Windshield Washer (From Joint To Joint), No.2	Windshield Washer ([03.2015 - ] W/O(HEADLAMP CLEANER) (1502- )ASV51..TH ; (1503- )AVV50..MA ; (1 503- )ASV51..TAIW ; (1504- )A SV51..VN)
90119-06767	Bolt, W/washer(For Engine Under Cover)	Windshield Washer ([03.2015 - ] W/O(HEADLAMP CLEANER) (1502- )ASV51..TH ; (1503- )AVV50..MA ; (1 503- )ASV51..TAIW ; (1504- )A SV51..VN)
90119-T0144	Bolt, W/washer(For Engine Under Cover)	Windshield Washer ([03.2015 - ] W/O(HEADLAMP CLEANER) (1502- )ASV51..TH ; (1503- )AVV50..MA ; (1 503- )ASV51..TAIW ; (1504- )A SV51..VN)
90178-06012	NUT FLANGE	Windshield Washer ([03.2015 - ] W/O(HEADLAMP CLEANER) (1502- )ASV51..TH ; (1503- )AVV50..MA ; (1 503- )ASV51..TAIW ; (1504- )A SV51..VN)
90469-07011	Clamp No.1 (For Windseield Washer)	Windshield Washer ([03.2015 - ] W/O(HEADLAMP CLEANER) (1502- )ASV51..TH ; (1503- )AVV50..MA ; (1 503- )ASV51..TAIW ; (1504- )A SV51..VN)
90469-T0005	Clamp, Washer, No.3	Windshield Washer ([03.2015 - ] W/O(HEADLAMP CLEANER) (1502- )ASV51..TH ; (1503- )AVV50..MA ; (1 503- )ASV51..TAIW ; (1504- )A SV51..VN)
