Search › Model › AVV50
AVV50

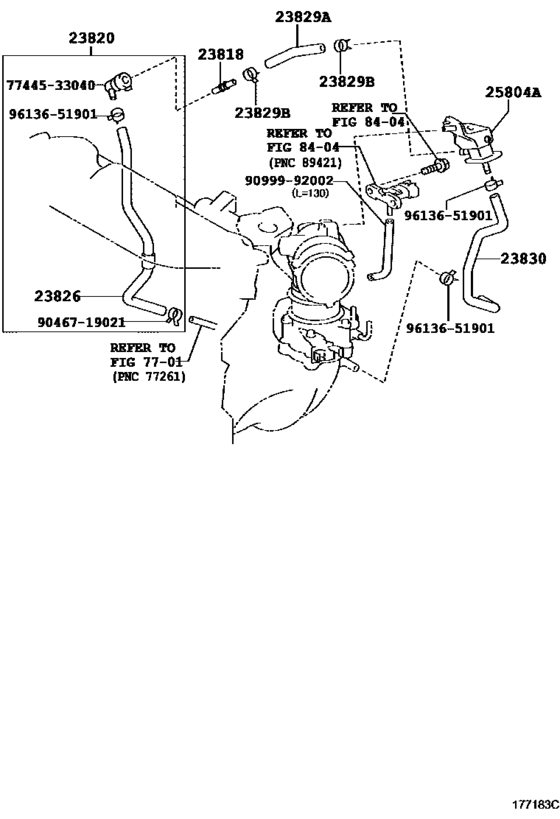

Vacuum Piping ([10.2011 - ] (1110- )2ARFXE) 10
| # | OEM | Part name |
|---|---|---|
| 23818 | 23818-36010 | Pipe, Fuel Vapor Feed |
| 23820 | 23820-0V090 | Hose Assy, Fuel Vapor Feed |
| 23826 | 23826-0V110 | Hose, Fuel Vapor Feed, No.1 |
| 23829 | 23829-36010 | Hose, Fuel Vapor Feed |
| 23829 | 96136-51901 | Clip(For Water By-Pass Hose No.2) |
| 23830 | 23830-0V050 | Hose Assy, Fuel Vapor Feed, No.2 |
| 25804 | 25805-36020 | Valve Sub-Assy, Vacuum Switching |
| 7744533040 | 77445-33040 | Connector, Fuel Tank Vent, No.2 |
| 9046719021 | 90467-19021 | Clamp Or Clip, Hose(For Water By-Pass Hose) |
| 9099992002 | 90999-92002 | Air Hose (300 mm) |
| OEM | Part name | Category |
|---|---|---|
| 23818-36010 | Pipe, Fuel Vapor Feed | Vacuum Piping ([10.2011 - ] (1110- )2ARFXE) |
| 23820-0V090 | Hose Assy, Fuel Vapor Feed | Vacuum Piping ([10.2011 - ] (1110- )2ARFXE) |
| 23826-0V110 | Hose, Fuel Vapor Feed, No.1 | Vacuum Piping ([10.2011 - ] (1110- )2ARFXE) |
| 23829-36010 | Hose, Fuel Vapor Feed | Vacuum Piping ([10.2011 - ] (1110- )2ARFXE) |
| 23830-0V050 | Hose Assy, Fuel Vapor Feed, No.2 | Vacuum Piping ([10.2011 - ] (1110- )2ARFXE) |
| 25805-36020 | Valve Sub-Assy, Vacuum Switching | Vacuum Piping ([10.2011 - ] (1110- )2ARFXE) |
| 77445-33040 | Connector, Fuel Tank Vent, No.2 | Vacuum Piping ([10.2011 - ] (1110- )2ARFXE) |
| 90467-19021 | Clamp Or Clip, Hose(For Water By-Pass Hose) | Vacuum Piping ([10.2011 - ] (1110- )2ARFXE) |
| 90999-92002 | Air Hose (300 mm) | Vacuum Piping ([10.2011 - ] (1110- )2ARFXE) |
| 96136-51901 | Clip(For Water By-Pass Hose No.2) | Vacuum Piping ([10.2011 - ] (1110- )2ARFXE) |
